Automotive ICs

Many ICs are equipped in automobiles which continue to evolve at a dizzying pace. For the purpose of safe driving, high-quality automotive ICs are to be desired. Moreover, the popularity of environmentally friendly vehicles such as hybrid electric vehicles (HEV), electric vehicles (EV), idle reduction vehicles, etc. is growing. Thus, automotive ICs are also required to be low current consumption and provide high-accuracy sensing capabilities. ABLIC's automotive ICs have leveraged the low current consumption and high accuracy technologies, as well as the high quality that our top-selling automotive EEPROMs in Japan and other products are aiming at. ABLIC Inc. offers a lineup of automotive ICs that meets the needs of the customer and society

AEC-Q100 level quality demanded by the automotive market

ABLIC Inc. uses AEC-Q100 standards defined by the Automotive Electronics Council (AEC) to verify the quality and reliability of its automotive ICs. Products that comply with production part approval process (PPAP) standards are also available. ABLIC Inc. customers can be fully confident that ABLIC Inc. products will deliver the high quality and reliability for their automotive application.

IATF16949 certified

ABLIC Inc. has obtained IATF16949 certification, a quality management system standard for the automotive industry. ABLIC Inc.'s automotive ICs are developed based on the IATF16949 standard.
ABLIC Inc. offers FIT rate calculated based on actual customer usage conditions in order to support customer functional safety design. For more information regarding our FIT rate calculation, contact our sales representatives.

Available Applications

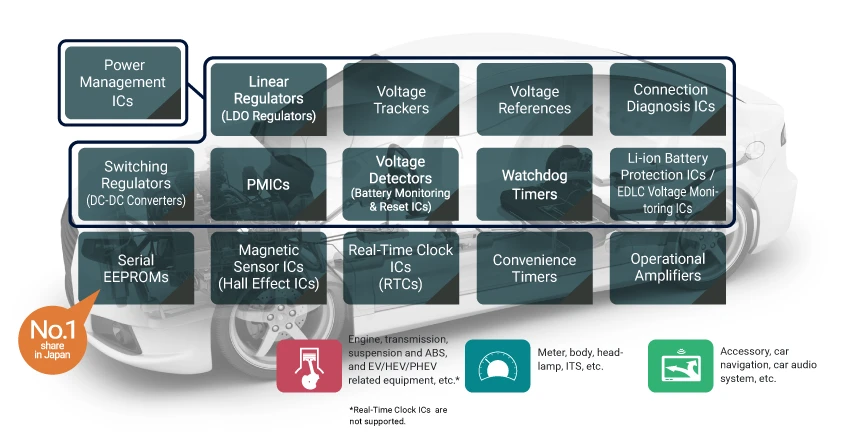

Automotive ICs are categorized according to their application. The following symbols indicate the types of applications for which an IC can be used, corresponding to those symbols shown throughout the website for the products.
Be sure to contact our sales representatives before using the ICs for vehicle equipment and in-vehicle equipment.

Example applications: Safety critical components typified by engine, transmission, suspension and ABS, and EV/HEV/PHEV related equipment, etc.
Example applications
Safety critical components typified by engine, transmission, suspension and ABS, and EV/HEV/PHEV related equipment, etc.

Example applications: Meter, body, headlamp, ITS, etc.
Example applications
Meter, body,
headlamp, ITS, etc.

Example applications: Accessory, car navigation, car audio system, etc.
Example applications
Accessory, car navigation,
car audio system, etc.

Thermal Simulation Service

By using the high-accuracy “thermal simulation service” , the load, time and cost on development can be reduced.
If we receive information on the board under consideration or the conditions of use, the thermal resistance values and recommended wiring ratio can be provided. Please contact our sales representatives for the thermal simulation service.

Thermal simulation service

Magnetic Simulation Service

ABLIC Inc. offers a "magnetic simulation service" that provides the ideal combination of magnets and our Hall effect ICs for customer systems. Our magnetic simulation service will reduce prototype production, development period and development costs. In addition, it will contribute to optimization of parts to realize high cost performance.
For more information regarding our magnetic simulation service, contact our sales representatives.

Magnetic simulation service

Circuit Example of ABLIC's Automotive Power Management ICs

For more information on automotive power management ICs, refer here.



Automotive IC Product Lineup

Series Name Datasheet Application Note Product Category Buy Online Parts List Features VIN min. [V] VIN max. [V] Absolute maximum rating [V] Output current [mA] Tj max. [°C] Current consumption [µA] Operation temp. min. [°C] Operation temp. max. [°C] Package
Series name
S-19680 Automotive Connection Diagnosis ICs chip1stop CoreStaFF Digi-Key MOUSER High side switch + Antenna diagnosis 2.7 10 12 100 150 12 -40 105 TMSOP-8
S-19682B Automotive Connection Diagnosis ICs chip1stop CoreStaFF Digi-Key MOUSER High side switch + Camera / Antenna diagnosis 4.5 36 45 300 150 55 -40 125 HSNT-8(2030)
S-19683B Automotive Connection Diagnosis ICs chip1stop CoreStaFF Digi-Key MOUSER High side switch + Camera / Antenna diagnosis 4.5 36 45 600 150 55 -40 125 HSNT-8(2030)
S-19700 Inquiry Automotive Connection Diagnosis ICs LDO + Camera / Antenna diagnosis (applicable to a high side switch) 4.5 36 45 400 150 80 -40 125 HSOP-8A
S-19701 Inquiry Automotive Connection Diagnosis ICs LDO + Camera / Antenna diagnosis (applicable to a high side switch) 4.5 36 45 600 150 80 -40 125 HSOP-8A
S-19720 Automotive Voltage Trackers chip1stop CoreStaFF Digi-Key MOUSER Low offset voltage, Low current cunsumption during power-off, Reverse current protection 4.0 36 45 50 5.0 0.16 150 30 4.0 -40 125 SOT-23-5, HSNT-6(2025)
S-19251 Automotive Linear Regulators (LDO Regulators) 0.8mm super-small package 1.5 5.5 6.0 150 1.0 3.5 2.5 0.16 125 20.0 1.0 LDO* -40 105 SOT-23-5, HSNT-4(1010)B, HSNT-4(0808)B
S-19252 Automotive Linear Regulators (LDO Regulators) High ripple rejection, Soft start function 1.5 5.5 6.0 150 1.0 3.6 3.0 0.07 125 36.0 1.0 LDO* -40 105 SOT-23-5, SC-82AB, HSNT-4(1010)B
S-19255 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER High ripple rejection, 0.1µF input capacitor available, 1.0mm super-small package 1.5 5.5 6.0 300 0.9 3.6 2.0 0.12 150 55.0 1.0 LDO* -40 125 SOT-23-5, HSNT-4(1010)B
S-1142A/BxxH Automotive Linear Regulators (LDO Regulators) 50V high input (low current consumption) 3.0 50.0 60.0 200 2.0 15.0 3.0 0.35 125 4.0 0.1 LDO* -40 105 HSOP-6
S-1142C/DxxH Automotive Linear Regulators (LDO Regulators) 50V high input (low current consumption) 3.0 50.0 60.0 200 2.0 15.0 3.0 0.35 125 4.0 0.1 LDO* -40 105 HSOP-6
S-1142C/DxxA Automotive Linear Regulators (LDO Regulators) 50V high input (low current consumption) 3.0 50.0 60.0 200 2.0 12.0 4.0 0.35 135 4.0 0.1 LDO* -40 125 HSOP-6
S-19200A/BxxH Automotive Linear Regulators (LDO Regulators) 50V high input (low current consumption) 3.0 50.0 60.0 200 2.0 15.0 3.0 0.23 125 4.0 0.1 LDO* -40 105 HSOP-6, TO-252-5S(A)
S-19200A/BxxA Automotive Linear Regulators (LDO Regulators) 50V high input (low current consumption) 3.0 50.0 60.0 200 2.0 15.0 4.0 0.23 135 4.0 0.1 LDO* -40 125 TO-252-5S(A)
S-19212B/DxxH Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input (low current consumption) 3.0 36.0 45.0 250 2.5 16.0 2.0 0.35 150 6.5 1.0 LDO* -40 105 TO-252-5S(A), HSOP-8A, HSOP-6, SOT-89-5, SOT-23-5, HTMSOP-8
S-19212B/DxxA Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input (low current consumption) 3.0 36.0 45.0 250 2.5 16.0 2.0 0.35 150 6.5 1.0 LDO* -40 125 TO-252-5S(A), HSOP-8A, HSOP-6, SOT-89-5, SOT-23-5, HTMSOP-8
S-19213 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input (low current consumption) 2.8 36.0 45.0 500 1.8 30.0 1.5 0.13 150 5.0 1.0 LDO* -40 125 TO-252-5S(A), HSOP-8A
S-19218 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input, Fast transient response, 0.1µF input capacitor available 3.0 36.0 45.0 500 2.5 30.0 1.5 0.17 150 30.0 1.0 LDO* -40 125 TO-252-5S(A), HSOP-8A
S-19243xxxH Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 10V input, 500mA output 2.5 10.0 12.0 500 0.9 9.0 2.3 0.09 150 120.0 2.2 LDO* -40 105 TO-252-5S(A), HSOP-8A, HSOP-6, SOT-89-5, HSNT-8(2030)
S-19243xxxA Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 10V input, 500mA output 2.5 10.0 12.0 500 0.9 9.0 2.3 0.09 150 120.0 2.2 LDO* -40 125 TO-252-5S(A), HSOP-8A, HSOP-6, SOT-89-5, HSNT-8(2030)
S-19253xxxH Automotive Linear Regulators (LDO Regulators) 6.5V input, 500mA output 2.5 6.5 7.0 500 1.0 5.5 3.0 0.09 150 120.0 2.2 LDO* -40 105 SOT-89-5
S-19214 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input (low current consumption) 2.8 36.0 45.0 1000 1.8 30.0 1.5 0.13 150 5.0 1.0 LDO* -40 125 TO-252-5S(A), HSOP-8A
S-19244xxxH Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 10V input, 1000mA output 2.5 10.0 12.0 1000 1.0 9.0 2.3 0.38 150 120.0 2.2 LDO* -40 105 TO-252-5S(A), HSOP-8A, HSOP-6, HSNT-8(2030)
S-19244xxxA Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 10V input, 1000mA output 2.5 10.0 12.0 1000 1.0 9.0 2.3 0.38 150 120.0 2.2 LDO* -40 125 TO-252-5S(A), HSOP-8A, HSOP-6, HSNT-8(2030)
S-19254xxxH Automotive Linear Regulators (LDO Regulators) 6.5V input, 1000mA output 2.5 6.5 7.0 1000 1.0 5.5 3.0 0.38 150 120.0 2.2 LDO* -40 105 HSOP-8A
S-19246xxxH Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 10V input, 2000mA output 2.5 10.0 12.0 2000 1.0 6.0 2.3 0.62 150 120.0 2.2 LDO* -40 105 TO-252-5S(A)
S-19310 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Monitors output voltage of built-in LDO voltage regulator 3.0 36.0 45.0 40 2.9 5.3 2.0 0.24 150 2.2 1.0 LDO+VD* -40 125 HTMSOP-8, SOT-23-5, SOT-89-5
S-19311 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Small, high heat dissipation 4.0 36.0 45.0 200 3.0 5.3 2.0 0.12 150 60.0 2.2 LDO+VD* -40 125 HSOP-8A, TO-252-5S(A)
S-19312 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Small, high heat dissipation 4.0 36.0 45.0 400 3.0 5.3 2.0 0.12 150 60.0 2.2 LDO+VD* -40 125 HSOP-8A, TO-252-5S(A)
S-19315 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Monitors voltage at SENSE pin connection 3.0 36.0 45.0 40 1.0 5.3 2.0 0.24 150 2.0 1.0 LDO+VD* -40 125 HTMSOP-8, SOT-23-5, SOT-89-5
S-19316 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Monitors input voltage of built-in LDO voltage regulator 3.0 36.0 45.0 40 1.0 5.3 2.0 0.24 150 2.0 1.0 LDO+VD* -40 125 HTMSOP-8, SOT-23-5, SOT-89-5
S-19509 Automotive Linear Regulators (LDO Regulators) Time-out WDT with WEN pin, ON / OFF circuit 3.0 36.0 45.0 500 3.3 5.0 2.0 0.12 150 3.2 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S, HTSSOP-16
S-19518 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Window WDT with WEN pin, ON / OFF circuit 3.0 36.0 45.0 250 3.3 5.0 2.0 0.12 150 3.2 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S
S-19519 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Window WDT with WEN pin, ON / OFF circuit 3.0 36.0 45.0 500 3.3 5.0 2.0 0.12 150 3.2 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S, HTSSOP-16
S-19700 Inquiry Automotive Linear Regulators (LDO Regulators) Current monitoring, Current limit 4.5 36.0 45.0 400 3.3 20.0 2.3 0.08 150 80.0 4.7 LDO* -40 125 HSOP-8A
S-19701 Inquiry Automotive Linear Regulators (LDO Regulators) Current monitoring, Current limit 4.5 36.0 45.0 600 3.3 20.0 2.3 0.08 150 80.0 4.7 LDO* -40 125 HSOP-8A
S-19720 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low offset voltage, Low current cunsumption during power-off, Reverse current protection 4.0 36.0 45.0 50 2.0 18.0 - 0.16 150 30.0 1.0 Tracker* -40 125 SOT-23-5, HSNT-6(2025)
S-19100xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VDD detection 1.2 4.60 0.10 - - - 3.0 0.60 10 12 External setting 0.27 -40 125 SC-82AB, SOT-23-5
S-19100xxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VDD detection 1.2 4.60 0.10 - - - 2.5 0.60 10 12 External setting 0.27 -40 105 SC-82AB, SOT-23-5, SNT-4A
S-19101xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VDD detection, No Hysteresis 1.2 4.60 0.10 - - - 3.0 0.60 10 12 External setting 0.27 -40 125 SC-82AB, SOT-23-5
S-19101xxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VDD detection, No Hysteresis 1.2 4.60 0.10 - - - 2.5 0.60 10 12 External setting 0.27 -40 105 SC-82AB, SOT-23-5
S-19102/19108 Automotive Voltage Detectors (Battery Monitoring & Reset ICs) SENSE detection 1.0 5.00 0.10 - - - 3.5 0.95 10 12 - 0.50 -40 105 SOT-23-5
S-19103/19109 Automotive Voltage Detectors (Battery Monitoring & Reset ICs) SENSE detection, No Hysteresis 1.0 5.00 0.10 - - - 3.5 0.95 10 12 - 0.50 -40 105 SOT-23-5
S-19104/19106 Automotive Voltage Detectors (Battery Monitoring & Reset ICs) SENSE detection 1.0 5.00 0.10 - - - 3.5 0.95 10 12 External setting 0.50 -40 105 SOT-23-5
S-19105/19107 Automotive Voltage Detectors (Battery Monitoring & Reset ICs) SENSE detection, No Hysteresis 1.0 5.00 0.10 - - - 3.5 0.95 10 12 External setting 0.50 -40 105 SOT-23-5
S-19110AxxA to S-19110HxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, VDD detection/SENSE detection, Output logic selectable 5.0 10.00 0.05 - - - 2.0 1.80 36 45 External setting 0.60 -40 125 SOT-23-6
S-19110AxxH to S-19110HxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, VDD detection/SENSE detection, Output logic selectable 5.0 10.00 0.05 - - - 1.5 1.80 36 45 External setting 0.60 -40 105 SOT-23-6
S-19110JxxA to S-19110RxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, VDD detection/SENSE detection, Output logic selectable 3.0 4.95 0.05 - - - 2.5 1.80 36 45 External setting 0.60 -40 125 SOT-23-6
S-19110JxxH to S-19110RxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, VDD detection/SENSE detection, Output logic selectable 3.0 4.95 0.05 - - - 2.5 1.80 36 45 External setting 0.60 -40 105 SOT-23-6
S-19113xxxS Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER AEC-Q100 Grade 0, High-withstand voltage, SENSE detection, SENSE pin reverse connection protection 4.0 10.00 0.05 - - - 2.0 3.00 36 45 External setting 0.60 -40 150 HTMSOP-8, HSNT-8(2030), SOT-23-5
S-19113xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, SENSE pin reverse connection protection 4.0 10.00 0.05 - - - 1.5 3.00 36 45 External setting 0.60 -40 125 HTMSOP-8, HSNT-8(2030), SOT-23-5
S-19113xxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, SENSE pin reverse connection protection 4.0 10.00 0.05 - - - 1.5 3.00 36 45 External setting 0.60 -40 105 HTMSOP-8, HSNT-8(2030), SOT-23-5
S-19114xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER Fast detection response, High-withstand voltage, SENSE detection, SENSE pin reverse connection protection 4.0 12.00 0.05 - - - 1.5 3.00 36 45 External setting 2.00 -40 125 HSNT-6(2025), SOT-23-5
S-19115xxxS Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER AEC-Q100 Grade 0, High-withstand voltage, SENSE detection, SENSE pin reverse connection protection, Overvoltage detection - - - 16.0 18.0 0.10 2.0 3.00 36 45 External setting 0.60 -40 150 HTMSOP-8, HSNT-8(2030), SOT-23-5
S-19115xxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, SENSE pin reverse connection protection, Overvoltage detection - - - 16.0 18.0 0.10 1.5 3.00 36 45 External setting 0.60 -40 105 HTMSOP-8, HSNT-8(2030), SOT-23-5
S-19117/19119xxxS Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER AEC-Q100 Grade 0, High-withstand voltage, SENSE detection, Supply voltage divided output, SENSE pin reverse connection protection 4.0 10.00 0.05 - - - 2.0 3.00 36 45 External setting 0.75 -40 150 HTMSOP-8, HSNT-8(2030)
S-19117/19119xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, Supply voltage divided output, SENSE pin reverse connection protection 4.0 10.00 0.05 - - - 1.5 3.00 36 45 External setting 0.75 -40 125 HTMSOP-8, HSNT-8(2030)
S-19117/19119xxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, Supply voltage divided output, SENSE pin reverse connection protection 4.0 10.00 0.05 - - - 1.5 3.00 36 45 External setting 0.75 -40 105 HTMSOP-8, HSNT-8(2030)
S-191ExxxxS Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER AEC-Q100 Grade 0, High-withstand voltage, SENSE detection, SENSE pin reverse connection protection, Window 4.0 10.00 0.05 16.0 18.0 0.10 2.0 3.00 36 45 External setting 0.90 -40 150 HTMSOP-8, HSNT-8(2030)
S-191ExxxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, SENSE pin reverse connection protection, Window 4.0 10.00 0.05 16.0 18.0 0.10 1.5 3.00 36 45 External setting 0.90 -40 125 HTMSOP-8, HSNT-8(2030)
S-191ExxxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, SENSE pin reverse connection protection, Window 4.0 10.00 0.05 16.0 18.0 0.10 1.5 3.00 36 45 External setting 0.90 -40 105 HTMSOP-8, HSNT-8(2030)
S-191L/191NxxxxS Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER AEC-Q100 Grade 0, High-withstand voltage, SENSE detection, Supply voltage divided output, SENSE pin reverse connection protection, Window 4.0 10.00 0.05 16.0 18.0 0.10 2.0 3.00 36 45 External setting 0.90 -40 150 HTMSOP-8, HSNT-8(2030)
S-191L/191NxxxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, Supply voltage divided output, SENSE pin reverse connection protection, Window 4.0 10.00 0.05 16.0 18.0 0.10 1.5 3.00 36 45 External setting 0.90 -40 125 HTMSOP-8, HSNT-8(2030)
S-191L/191NxxxxH Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, Supply voltage divided output, SENSE pin reverse connection protection, Window 4.0 10.00 0.05 16.0 18.0 0.10 1.5 3.00 36 45 External setting 0.90 -40 105 HTMSOP-8, HSNT-8(2030)
S-19405 Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VD+WDT(Timeout) 2.0 5.00 0.10 - - - 2.0 0.90 6 7 External setting 3.80 -40 125 TMSOP-8, HSNT-8(2030)
S-19405 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER Separated reset output WDT+VD* Time-out mode Yes 2.0 5.0 0.1 2.0 - - - 0.9 6.0 7.0 - 3.8 -40 125 TMSOP-8, HSNT-8(2030)
S-19509 Automotive Watchdog Timers WADJ pin, ON / OFF circuit WDT+VD+LDO* Time-out mode Yes 2.6 4.7 0.1 2.0 3.3 5.0 500 3.0 36.0 45.0 150 3.2 -40 125 HSOP-8A, TO-252-9S, HTSSOP-16
S-19518 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER ON / OFF circuit WDT+VD+LDO* Window mode Yes 2.6 4.7 0.1 2.0 3.3 5.0 250 3.0 36.0 45.0 150 3.2 -40 125 HSOP-8A, TO-252-9S
S-19519 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER WADJ pin, ON / OFF circuit WDT+VD+LDO* Window mode Yes 2.6 4.7 0.1 2.0 3.3 5.0 500 3.0 36.0 45.0 150 3.2 -40 125 HSOP-8A, TO-252-9S, HTSSOP-16
S-19190 Automotive Lithium-ion Battery Protection ICs / EDLC Voltage Monitoring ICs chip1stop CoreStaFF Digi-Key MOUSER Cell balancing, overcharge protection Automotive EDLC voltage monitoring 2.0 4.6 12 - - - - - - - -40 105 SOT-23-6
S-19192 Automotive Lithium-ion Battery Protection ICs / EDLC Voltage Monitoring ICs chip1stop CoreStaFF Digi-Key MOUSER For voltage monitoring Automotive 3-cell, 4-cell, 5-cell, 6-cell 2.5 4.5 20 1.5 3.0 80 - - - Built-in delay timer -40 105 HTSSOP-16
S-19934/19935 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 18V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 18.0 22.0 1.0 1.0 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030)
S-19944/19945 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER SSCG*, 18V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 18.0 22.0 1.0 1.0 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown, SSCG* -40 125 HTMSOP-8, HSNT-8(2030)
S-19932/19933 C/D Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 18V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 18.0 22.0 0.6 2.5 12.0 400 95 Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-19932/19933 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 18V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 18.0 22.0 0.6 1.0 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-19942/19943 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER SSCG*, 18V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 18.0 22.0 0.6 1.0 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown, SSCG* -40 125 HTMSOP-8, HSNT-8(2030)
S-19904/19905 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 36V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 36.0 45.0 1.0 2.5 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030)
S-19914/19915 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER SSCG*, 36V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 36.0 45.0 1.0 2.5 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown, SSCG* -40 125 HTMSOP-8, HSNT-8(2030)
S-19902/19903 C/D Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 36V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 36.0 45.0 0.6 2.5 12.0 400 95 Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-19902/19903 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 36V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 36.0 45.0 0.6 2.5 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-19912/19913 A/B Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER SSCG*, 36V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 4.0 36.0 45.0 0.6 2.5 12.0 2200 91 Current limit, Short-circuit protection, Thermal shutdown, SSCG* -40 125 HTMSOP-8, HSNT-8(2030)
S-19516/19517 Automotive Watchdog Timers WADJ pin, Low current consumption WDT+VD+LDO* Window mode Selectable 2.6 4.7 0.1 2.0 3.3 5.0 500 3.0 36.0 45.0 150 3.0 -40 125 HSOP-8A, TO-252-9S
S-19514/19515 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER WADJ pin, Low current consumption WDT+VD+LDO* Window mode Selectable 2.6 4.7 0.1 2.0 3.3 5.0 250 3.0 36.0 45.0 150 3.0 -40 125 HSOP-8A, TO-252-9S
S-19506/19507 Automotive Watchdog Timers WADJ pin, Low current consumption WDT+VD+LDO* Time-out mode Selectable 2.6 4.7 0.1 2.0 3.3 5.0 500 3.0 36.0 45.0 150 3.0 -40 125 HSOP-8A, TO-252-9S
S-19504/19505 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER WADJ pin, Low current consumption WDT+VD+LDO* Time-out mode Selectable 2.6 4.7 0.1 2.0 3.3 5.0 250 3.0 36.0 45.0 150 3.0 -40 125 HSOP-8A, TO-252-9S
S-19502/19503 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER WADJ pin WDT+VD+LDO* Time-out mode Selectable 2.6 5.0 0.1 2.0 3.0 5.3 400 4.0 36.0 45.0 150 60.0 -40 125 HSOP-8A, TO-252-9S
S-19500/19501 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER WADJ pin WDT+VD+LDO* Time-out mode Selectable 2.6 5.0 0.1 2.0 3.0 5.3 200 4.0 36.0 45.0 150 60.0 -40 125 HSOP-8A
S-19400/19401 Automotive Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER Mode switching available, Separated reset output WDT+VD* Window/Time-out switchable,
Window mode		 Yes 2.0 5.0 0.1 2.0 - - - 0.9 6.0 7.0 - 3.8 -40 125 TMSOP-8, HSNT-8(2030)
S-19400/19401 Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VD+WDT(Window, Window/Timeout) 2.0 5.00 0.10 - - - 2.0 0.90 6 7 External setting 3.80 -40 125 TMSOP-8, HSNT-8(2030)
S-19516/19517 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Window WDT, WEN pin selectable 3.0 36.0 45.0 500 3.3 5.0 2.0 0.12 150 3.0 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S
S-19514/19515 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Window WDT, WEN pin selectable 3.0 36.0 45.0 250 3.3 5.0 2.0 0.12 150 3.0 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S
S-19506/19507 Automotive Linear Regulators (LDO Regulators) Time-out WDT, WEN pin selectable 3.0 36.0 45.0 500 3.3 5.0 2.0 0.12 150 3.0 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S
S-19504/19505 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Time-out WDT, WEN pin selectable 3.0 36.0 45.0 250 3.3 5.0 2.0 0.12 150 3.0 1.0 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S
S-19502/19503 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Time-out WDT, WEN pin selectable 4.0 36.0 45.0 400 3.0 5.3 2.0 0.12 150 60.0 2.2 LDO+VD+WDT* -40 125 HSOP-8A, TO-252-9S
S-19500/19501 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Time-out WDT, WEN pin selectable 4.0 36.0 45.0 200 3.0 5.3 2.0 0.12 150 60.0 2.2 LDO+VD+WDT* -40 125 HSOP-8A
S-35710M A Automotive Convenience Timers chip1stop CoreStaFF Digi-Key MOUSER Built-in Quartz Crystal, 2-wire (I2C-bus) Built-in 0.25 1.8 5.5 -40 125 HSOP-8Q
S-35710 A Automotive Convenience Timers chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C-bus) External 0.20 1.8 5.5 -40 125 TMSOP-8
S-35720 A Automotive Convenience Timers chip1stop CoreStaFF Digi-Key MOUSER With interrupt time setting pin External 0.20 1.8 5.5 -40 125 TMSOP-8
S-35730 A Automotive Convenience Timers chip1stop CoreStaFF Digi-Key MOUSER Clock pulse output with frequency setting pin External 0.70 1.8 5.5 -40 125 TMSOP-8
S-35740 A Automotive Convenience Timers chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C-bus) interval timer External 0.20 1.8 5.5 -40 125 TMSOP-8
S-35770 A Automotive Convenience Timers chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C-bus) counter - 0.01 1.5 5.5 -40 125 TMSOP-8
S-5852A Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER Digital output 0.0625°C -40 125 1.70 3.6 40.00 1.0 30 -40 125 HSNT-8(2030)
S-58LM20A Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER Analog output -11.77mV/°C -55 130 2.40 5.5 4.50 2.5 50 -55 130 SC-82AB, SNT-4A, WLP-4B
S-5844A Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER Temp switch Hysteresis 50 100 1.65 5.5 0.18 2.5 20 -40 125 SOT-23-5, SNT-4A, HSNT-4(1010)
S-5841 Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER Temp switch Hysteresis 40 100 2.20 10.0 10.00 2.5 10 -40 125 SOT-23-5, SNT-6A
S-585AA Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER With ARP function / EEPROM, Digital output 0.0625°C -40 125 1.70 3.6 40.00 1.0 70 -40 125 DFN-8(2030)B
S-5813A/5814A Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER Analog output -11.04mV/°C -30 100 2.40 10.0 4.00 2.5, 5.0 40 -40 100 SNT-4A
S-8110C/8120C Temperature Sensor ICs chip1stop CoreStaFF Digi-Key MOUSER Analog output -8.20mV/°C -30 100 2.40 10.0 4.50 2.5, 5.0 60 -40 100 SC-82AB, SNT-4A
S-19721 Automotive Voltage Trackers chip1stop CoreStaFF Digi-Key MOUSER Low offset voltage, Low current cunsumption during power-off, Reverse current protection, Anomaly notification 4.0 36 45 250 4.5 0.33 150 40 3.7 -40 125 TO-252-9S, HSOP-8A, HSNT-8(2030)
S-19721 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low offset voltage, Low current cunsumption during power-off, Reverse current protection, Anomaly notification 4.0 36.0 45.0 250 2.0 8.0 - 0.33 150 40.0 4.7 Tracker* -40 125 TO-252-9S, HSOP-8A, HSNT-8(2030)
S-19721 Automotive Connection Diagnosis ICs chip1stop CoreStaFF Digi-Key MOUSER Tracker (Anomaly notification) 4.0 36 45 250 150 40 -40 125 TO-252-9S, HSOP-8A, HSNT-8(2030)
S-35390A Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Super-low 0.25µA current consumption 2-wire 0.25 1.3 5.5 -40 85 8-Pin SOP, 8-Pin TSSOP, SNT-8A
S-35391A Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER A product having different device code from S-35390A 2-wire 0.25 1.3 5.5 -40 85 8-Pin SOP, SNT-8A
S-35392A Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Constant 32kHz output 2-wire 0.45 1.3 5.5 -40 85 SNT-8A
S-35399A03 Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Alarm settable to day/month/year, 24-bit counter 2-wire 0.34 1.3 5.5 -40 85 8-Pin SOP
S-35190A Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Super-low 0.25µA current consumption 3-wire 0.25 1.3 5.5 -40 85 8-Pin SOP, 8-Pin TSSOP, SNT-8A
S-35192A Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Constant 32kHz output 3-wire 0.45 1.3 5.5 -40 85 SNT-8A
S-35190A H Automotive Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Clock correction, free user register 3-wire 0.25 1.3 5.5 -40 105 8-Pin SOP, 8-Pin TSSOP
S-35390A H Automotive Real-Time Clocks (RTCs) chip1stop CoreStaFF Digi-Key MOUSER Clock correction, free user register 2-wire 0.25 1.3 5.5 -40 105 8-Pin SOP, 8-Pin TSSOP
S-812C Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low output current, 16V input - 16.0 18.0 75 2.0 6.0 2.0 0.23 - 1.0 - - LDO* -40 85 SOT-23-5, SOT-89-3, SOT-89-5, SNT-6A(H), TO-92, WLP-4R
S-817 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low output current - 10.0 12.0 75 1.1 6.0 2.0 0.25 - 1.2 - 0.1 LDO* -40 85 SOT-23-5, SOT-89-3, SC-82AB, SNT-4A, TO-92
S-816 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER With an external transistor 2.5 16.0 18.0 1000 2.5 6.0 2.0 0.10 - 30.0 - 4.7 LDO* -40 85 SOT-23-5
S-1317 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Super-low current consumption, overcurrent protection 1.5 5.5 6.0 100 1.0 3.5 1.0 0.02 - 0.35 - 1.0 LDO* -40 85 SOT-23-5, HSNT-4(1010)
S-1318 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Super-low current consumption, overcurrent protection 1.7 5.5 6.0 100 1.2 3.3 1.0 0.045 - 0.095 - 1.0 LDO* -40 85 SOT-23-5, HSNT-4(1010)
S-1112/1122 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Conventional product with high ripple rejection 2.0 6.5 7.0 150 1.5 5.5 1.0 0.19 - 50.0 80 0.47 LDO* -40 85 SOT-23-5, SNT-6A(H)
S-1167 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low current consumption, high ripple rejection 2.0 6.5 7.0 150 1.5 5.5 1.0 0.15 - 9.0 70 1.0 LDO* -40 85 SOT-23-5, SNT-6A(H)
S-1312 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 0.8mm super-small package, TS*, DS* 1.5 5.5 6.0 150 1.0 3.5 1.0 0.16 - 20.0 75 0.22 LDO* -40 85 SOT-23-5, HSNT-4(0808), HSNT-4(1010)
S-1312xxxH Linear Regulators (LDO Regulators) 105°C operation, TS*, DS* 1.5 5.5 6.0 150 1.0 3.5 1.0 0.16 - 20.0 75 0.22 LDO* -40 105 SOT-23-5, HSNT-4(1010)
S-1335 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER High ripple rejection, Soft start function, DS* 1.5 5.5 6.0 150 1.0 3.6 1.0 0.07 - 36.0 80 1.0 LDO* -40 85 SOT-23-5, SC-82AB, HSNT-4(1010)
S-13R1 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Reverse current protection, TS*, DS* 2.0 5.5 6.0 150 1.2 4.0 1.0 0.15 - 5.0 70 1.0 LDO* -40 85 SOT-23-5, SC-82AB, HSNT-4(1010)
S-T111 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER TK111-equivalent 2.0 6.5 7.0 150 1.5 5.5 1.0 0.19 - 50.0 80 0.1 LDO* -40 85 SOT-23-5
S-1200 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 10V input support 2.0 10.0 12.0 150 1.5 5.5 1.0 0.14 - 18.0 70 0.1 LDO* -40 85 SOT-23-5, SNT-6A(H)
S-L2980 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER LP2980-equivalent 2.0 10.0 12.0 150 1.5 6.0 2.0 0.12 - 90.0 70 1.0 LDO* -40 85 SOT-23-5
S-1222B/D Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low-profile 0.33mm(max.), low consumption, TS*, DS* 3.0 28.0 30.0 200 2.3 12.0 1.0 0.35 150 6.5 - 1.0 LDO* -40 85 TO-252-5S(A), HSOP-8A, HSOP-6, SOT-89-5, HTMSOP-8, SOT-23-5, DFN-6(1518)A
S-1313 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 0.8mm super-small package, TS*, DS* 1.5 5.5 6.0 200 1.0 3.5 1.0 0.16 - 0.9 - 0.1 LDO* -40 85 SOT-23-5, SC-82AB, HSNT-4(0808), HSNT-4(1010)
S-1313xxxH Linear Regulators (LDO Regulators) 105°C Operation, 0.8mm super-small package, TS*, DS* 1.5 5.5 6.0 200 1.0 3.5 1.0 0.16 - 0.9 - 0.1 LDO* -40 105 SOT-23-5, SC-82AB, HSNT-4(0808), HSNT-4(1010)
S-1324 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low consump., low noise 17μVrms 1.5 5.5 6.0 200 1.0 3.5 1.0 0.17 - 7.0 65 1.0 LDO* -40 85 SOT-23-5, SC-82AB, HSNT-4(1010)
S-1206 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Super-low current consumption 1.7 6.5 7.0 250 1.2 5.2 1.0 0.15 - 1.0 - 0.1 LDO* -40 85 SOT-23-3, SOT-89-3, SNT-6A(H)
S-1132 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 0.1μF capacitor available 2.0 6.5 7.0 300 1.5 5.5 1.0 0.13 - 20.0 70 0.1 LDO* -40 85 SOT-23-5, SOT-89-5, SNT-6A(H)
S-1133 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER External setting of Vout support, TS* 2.0 10.0 12.0 300 1.2 8.2 1.0 0.13 - 60.0 70 1.0 LDO* -40 85 SOT-89-5, SNT-8A
S-1333 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 0.8mm super-small package, TS*, DS* 1.5 5.5 6.0 300 1.0 3.5 1.0 0.14 - 25.0 75 1.0 LDO* -40 85 SOT-23-5, HSNT-4(0808), HSNT-4(1010)
S-1170 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER TS* 2.0 6.5 7.0 800 1.5 5.5 1.0 0.12 - 80.0 70 4.7 LDO* -40 85 SOT-89-5, 6-Pin HSON(A)
S-13A1 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER External setting of Vout support, ICL*, TS*, DS* 1.5 5.5 6.0 1000 1.0 5.0 1.0 0.07 - 60.0 70 2.2 LDO* -40 85 HSOP-8A, HSOP-6, SOT-89-5
S-818 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER - 10.0 12.0 300 2.0 6.0 2.0 0.30 - 30.0 - 2.0 LDO* -40 85 SOT-23-5, SOT-89-5
S-1701 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 1 LDO circuit + 1 detector circuit 2.0 6.5 7.0 400 1.5 5.0 1.0 0.14 - 85.0 70 1.0 LDO+VD* -40 85 SOT-23-5, SOT-89-5
S-1740/1741 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Supply voltage divided output 1.5 5.5 6.0 100 1.0 3.5 1.0 0.02 - 0.5 - 1.0 LDO* -40 85 SOT-23-5, HSNT-6(1212), HSNT-4(1010)
S-13D1 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 2 LDO circuits, delay function, TS*, DS* 1.5 5.5 6.0 150 1.0 3.6 1.0 0.08 - 39.0 70 0.22 2 LDOs* -40 85 SOT-23-6, HSNT-6(1212)
S-87x Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 24V input support VR + detector - 24.0 26.0 50 2.5 5.8 2.4 0.45 - 3.0 - - LDO+VD* -40 85 SOT-89-5
S-1212B/D Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input, 105°C operation, TS*, DS* 3.0 36.0 45.0 250 2.5 16.0 2.0 0.35 150 6.5 40 1.0 LDO* -40 105 TO-252-5S(A), SOT-23-5, SOT-89-5, HSOP-6, HSOP-8A, HTMSOP-8
S-1213 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER External setting of Vout support, 36V high input, 105°C operation, TS*, DS* 2.8 36.0 45.0 500 1.8 30.0 1.0 0.13 150 5.0 - 1.0 LDO* -40 105 TO-252-5S(A), HSOP-8A
S-1214 Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER External setting of Vout support, 36V high input, 105°C operation, TS*, DS* 2.8 36.0 45.0 1000 1.8 30.0 1.0 0.13 150 5.0 - 1.0 LDO* -40 105 TO-252-5S(A), HSOP-8A
S-1142A/B Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 50V high input (low current consumption), TS* 3.0 50.0 60.0 200 2.0 15.0 1.0 0.35 125 4.0 50 0.1 LDO* -40 85 HSOP-6
S-1142C/D Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 50V high input (low current consumption), TS* 3.0 50.0 60.0 200 2.0 15.0 1.0 0.35 125 4.0 50 0.1 LDO* -40 85 HSOP-6
S-57GD S Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER Omnipolar 16 500 2.7 26.0 3.0, 6.0, 10.0, 15.0 -40 150 TSOT-23-3S, HSNT-6(2025)
S-57GS/GN S Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER S pole, N pole 8 500 2.7 26.0 3.0, 6.0, 10.0, 15.0 -40 150 TSOT-23-3S, HSNT-6(2025)
S-57A1 A Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER S pole, N pole 16 250 3.5 26.0 3.0, 6.0 -40 125 SOT-23-3
S-57TZ S Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER ZCL 8 500 2.7 26.0 - -40 150 TSOT-23-3S, HSNT-6(2025)
S-57RB S Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER Bipolar 8 500 2.7 26.0 0.5, 2.2, 3.0, 6.0, 10.0 -40 150 TSOT-23-3S, HSNT-6(2025)
S-57P1 S Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER Bipolar 8 500 2.7 26.0 0.5, 1.5, 2.2, 3.0 -40 150 SOT-23-3S
S-57K1 A Automotive Magnetic Sensor ICs (Hall Effect ICs) chip1stop CoreStaFF Digi-Key MOUSER Bipolar 8 500 3.5 26.0 3.0, 6.0 -40 125 SOT-23-3
S-93C46C/56C/66C/76C/86C H Automotive Serial EEPROMs (SPI, I2C, Microwire) 3-wire (Microwire) 1 K, 2 K, 4 K, 8 K, 16K 1.60 5.50 2.00 4.0 1 million 50 180 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8, HSNT-8(2030)
S-93A46B/56B/66B/76B/86B Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 3-wire (Microwire) 1 K, 2 K, 4 K, 8 K, 16K 2.50 5.50 2.00 4.0 1 million 50 170 -40 125 8-pin SOP, 8-pin TSSOP, TMSOP-8, HSNT-8(2030)
S-93S46A/56A/66A Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 3-wire (Microwire) 1 K, 2 K, 4 K 4.00 5.50 1.00 10.0 1 million 20 160 -40 150 8-pin SOP
S-24CS01A/02A/04A H Automotive Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 1 K, 2 K, 4 K 2.55 5.50 0.35 10.0 1 million 20 110 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-24C08CH Automotive Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 8 K 2.50 5.50 0.40 5.0 0.3 million 25 120 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-24C16CH Automotive Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 16K 2.50 5.50 0.40 5.0 0.3 million 25 130 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-24C32C/64C H Automotive Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 32K, 64K 2.50 5.50 0.40 5.0 0.3 million 25 140 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-24C128CH Automotive Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 128K 2.50 5.50 0.40 5.0 0.3 million 25 150 -40 105 8-pin SOP, 8-pin TSSOP
S-25C010A/020A/040A H Automotive Serial EEPROMs (SPI, I2C, Microwire) SPI bus 1 K, 2 K, 4 K 2.50 5.50 6.50 4.0 1 million 50 60 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-25C080A0H Automotive Serial EEPROMs (SPI, I2C, Microwire) SPI bus 8 K 2.50 5.50 6.50 4.0 1 million 50 70 -40 105 8-pin SOP, 8-pin TSSOP
S-25C160A0H Automotive Serial EEPROMs (SPI, I2C, Microwire) SPI bus 16K 2.50 5.50 5.00 5.0 0.3 million 25 80 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-25C320A/640A H Automotive Serial EEPROMs (SPI, I2C, Microwire) SPI bus 32K, 64K 2.50 5.50 5.00 5.0 0.3 million 25 90 -40 105 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-25C128A0H Automotive Serial EEPROMs (SPI, I2C, Microwire) SPI bus 128K 2.50 5.50 5.00 5.0 0.3 million 25 100 -40 105 8-pin SOP, 8-pin TSSOP
S-25A010A/020A/040A Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 1 K, 2 K, 4 K 2.50 5.50 6.50 4.0 1 million 50 10 -40 125 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-25A080A/160A/320A, S-25A080B/160B/320B Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 8 K, 16K, 32K 2.50 5.50 6.50 4.0, 5.0 0.7 million, 1 million 50 20 -40 125 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-25A128B Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 128K 2.50 5.50 6.50 5.0 0.7 million 50 40 -40 125 8-pin SOP, 8-pin TSSOP
S-25A256B Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 256K 2.50 5.50 5.00 5.0 0.7 million 50 50 -40 125 8-pin SOP
S-19610A Automotive Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER 2 circuits - 2.70 5.50 1000 6.00 3.000 3000 2.00 -40 125 TMSOP-8
S-19611A Automotive Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER Low voltage operation, Zero-drift amplifier, Rail-to-Rail 2 circuits Yes 2.65 5.50 200 0.10 0.100 320 0.22 -40 105 TMSOP-8
S-19630A Automotive Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, High-accuracy, Zero-drift amplifier, Rail-to-Rail 2 circuits Yes 4.00 36.00 250 0.05 0.025 1200 0.45 -40 125 TMSOP-8
S-8351/8352 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Low voltage Step-up (Boost) PFM control Built-in, External 0.9 10.0 2.00 6.5 0.15, 0.40 100k 23.2 0.5 87 - - -40 85 SOT-23-5, SOT-23-3, SOT-89-3
S-8353/8354 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Low voltage, Efficient Step-up (Boost) PWM control,
PWM/PFM switching control		 Built-in 0.9 10.0 2.00 6.5 0.30 30 k, 50 k, 250k 18.7 0.5 92 - - -40 85 SOT-23-5, SOT-23-3, SOT-89-3
S-8355/56/57/58 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Low voltage, Efficient Step-up (Boost) PWM control,
PWM/PFM switching control		 External 0.9 10.0 2.00 6.5 1.00 100k, 250k, 300k, 600k 25.9 0.5 93 - - -40 85 SOT-23-5, SOT-23-3, SOT-89-3
S-8333 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Responsive Step-up (Boost) PWM control External 1.8 6.0 Variable Variable 2.00 280k to 1080k 450 - 93 Ceramic Short-circuit protection -40 85 SNT-8A, 8-pin TSSOP
S-8337/8338 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Responsive Step-up (Boost) PWM control External 1.8 6.0 Variable Variable 2.00 286k to 1133k 400 1.0 93 Ceramic Short-circuit protection -40 85 8-pin TSSOP
S-85V1A Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Efficient, Synchronous Step-down (Buck) PWM/PFM switching control Built-in 2.2 5.5 0.70 3.9 0.20 1000k 10.0 0.1 93 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 SNT-6A
S-85S1A Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Ultra-efficient, Synchronous Step-down (Buck) PWM/PFM switching control Built-in 2.2 5.5 0.70 3.9 0.20 1000k 0.26 0.1 93 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 SNT-6A
S-85S0A Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Ultra-efficient, Synchronous Step-down (Buck) PFM control Built-in 2.2 5.5 0.70 3.9 0.05 - 0.26 0.1 91 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 SNT-6A
S-85S1P Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Ultra-efficient, Synchronous, Supply voltage divided output Step-down (Buck) PWM/PFM switching control Built-in 2.2 5.5 0.70 3.9 0.20 1000k 0.54 0.1 93 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 SNT-8A
S-85S0P Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Ultra-efficient, Synchronous, Supply voltage divided output Step-down (Buck) PFM control Built-in 2.2 5.5 0.70 3.9 0.05 - 0.54 0.1 91 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 SNT-8A
S-85M1A Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Ultra-efficient, Synchronous, Super-small Step-down (Buck) PWM/PFM switching control Built-in 2.2 5.6 0.70 3.9 0.20 1000k 0.26 0.1 93 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 WLP-6L
S-85M0A Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Ultra-efficient, Synchronous, Super-small Step-down (Buck) PFM control Built-in 2.2 5.6 0.70 3.9 0.05 - 0.26 0.1 91 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 WLP-6L
S-8520/8521 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Efficient Step-down (Buck) PWM control,
PWM/PFM switching control		 External 2.5 16.0 1.50 6.0 1.00 60 k, 180k, 300k 60.0 0.5 93 - - -40 85 SOT-23-5
S-8533 Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Synchronous Step-down (Buck) Synchronous PWM control External 2.7 16.0 1.25 6.0 3.00 300k 30.0 1.0 95 - - -40 85 8-pin TSSOP
S-8580/8581 AA/B Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 36V Input, Synchronous, Small package Step-down (Buck) PWM control,
PWM/PFM switching control		 Built-in 4.0 36.0 2.50 12.0, 30.0 0.60 2200k 68.0, 175 1.0 91 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-8580/8581 AC/D Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 36V Input, Synchronous, Small package Step-down (Buck) PWM control,
PWM/PFM switching control		 Built-in 4.0 36.0 2.50 12.0 0.60 400k 68.0, 150 1.0 95 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-8590/8591 AA/B Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 18V Input, Synchronous, Small package Step-down (Buck) PWM control,
PWM/PFM switching control		 Built-in 4.0 18.0 1.00 12.0 0.60 2200k 68.0, 175 1.0 91 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-8590/8591 AC/D Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 18V Input, Synchronous, Small package Step-down (Buck) PWM control,
PWM/PFM switching control		 Built-in 4.0 18.0 2.50 12.0 0.60 400k 68.0, 150 1.0 95 Ceramic Current limit, Short-circuit protection, Thermal shutdown -40 85 HTMSOP-8, HSNT-8(2030), HSNT-6(2025)
S-8821 Boost Charge Pump ICs chip1stop CoreStaFF Digi-Key MOUSER Double boost, Constant voltage Built-in 1.6 5.0 2.5 5.5 25 1000 35 1 90 -40 85 SOT-23-6W, SNT-8A
S-1000 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High accuracy 1.5 4.6 0.1 1.0 0.95 5.5 6 - 0.35 -40 85 SNT-4A, SC-82AB, SOT-23-5
S-808xxC Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER 0.8 6.0 0.1 2.0 0.65 10.0 12 - 0.80 -40 85 SNT-4A, SC-82AB, SOT-23-5, SOT-89-3, TO-92
S-1009 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High accuracy 0.8 4.6 0.1 0.5 0.60 10.0 12 External setting 0.27 -40 85 SNT-4A, SC-82AB, SOT-23-5
S-809xxC Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER 1.3 6.0 0.1 2.0 0.70 10.0 12 External setting 1.10 -40 85 SNT-4A, SC-82AB, SOT-23-5
S-801 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER 2.2 6.0 0.1 2.0 0.95 10.0 12 Internal setting 1.30 -40 85 SNT-4A, SOT-23-5
S-1003 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER Manual reset 1.2 5.0 0.1 1.0 0.95 10.0 12 External setting 0.50 -40 85 SNT-6A, SOT-23-5
S-1002 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER SENSE pin 1.0 5.0 0.1 1.0 0.95 10.0 12 - 0.50 -40 85 SC-82AB, SOT-23-5
S-1004 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER SENSE pin 1.0 5.0 0.1 1.0 0.95 10.0 12 External setting 0.50 -40 85 SNT-6A, SOT-23-5
S-1011 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE pin 3.0 10.0 0.05 1.5 1.80 36.0 45 External setting 0.60 -40 85 SOT-23-6
S-1410/1411 Voltage Detectors (Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER VD+WDT (Window / Timeout) (Window) 2.0 5.0 0.1 1.5 0.90 6.0 7 External setting 3.80 -40 105 TMSOP-8, HSNT-8(2030)
S-19115xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER High-withstand voltage, SENSE detection, SENSE pin reverse connection protection, Overvoltage detection - - - 12.2 18.0 0.10 1.5 3.00 36 45 External setting 0.60 -40 125 HTMSOP-8, HSNT-8(2030), SOT-23-5
S-19222xxxA Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER 36V high input, High ripple rejection, Fast transient response, 0.1µF input capacitor available 3.0 36.0 45.0 300 1.8 30.0 1.5 0.25 150 22.0 1.0 LDO* -40 125 TO-252-5S(A), HSOP-8A, SOT-89-5, SOT-23-5, HTMSOP-8
S-25A640A/640B Automotive Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 64K 2.50 5.50 5.00, 6.50 4.0, 5.0 0.7 million, 1 million 50 30 -40 125 8-pin SOP, 8-pin TSSOP, TMSOP-8
S-191AxxxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER Fast detection response, SENSE detection, Manual reset, Window 0.6 4.90 0.05 0.7 5.5 0.05 1.5 2.50 6 7 External setting 1.50 -40 125 SOT-23-6, HSNT-8(1616)B
S-191BxxxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER Fast detection response, SENSE detection, Window 0.6 4.90 0.05 0.7 5.5 0.05 1.5 2.50 6 7 External setting 1.50 -40 125 SOT-23-6, HSNT-8(1616)B
S-19122xxxA Automotive Voltage Detectors (Battery Monitoring & Reset ICs) chip1stop CoreStaFF Digi-Key MOUSER Fast detection response, SENSE detection, Manual reset 0.6 4.90 0.05 - - - 1.5 2.50 6 7 External setting 1.20 -40 125 SOT-23-6, HSNT-8(1616)B
S-82M1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 220 -40 85 SNT-6A
S-82N1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.50 4.60 15 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 400 -40 85 SNT-6A
S-82N1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.50 4.60 15 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 410 -40 85 SNT-6A
S-8240A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.50 4.60 20 2.0 3.4 50 0.015 0.200 5.00 Built-in delay timer 450 -40 85 SOT-23-6, SNT-6A, HSNT-6(1212)
S-8240B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.50 4.60 20 2.0 3.4 50 0.015 0.100 3.00 Built-in delay timer 460 -40 85 SNT-6A, HSNT-6(1212)
S-82L1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Alarm function)		 4.20 4.60 12 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 440 -40 85 SNT-6A
S-82T1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Alarm function)		 3.50 4.80 12 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 330 -40 85 HSNT-8(1616)
S-82U1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Alarm function)		 3.50 4.80 12 2.0 3.0 50 0.003 0.100 1.00 Built-in delay timer 320 -40 85 HSNT-8(1616)
S-82V1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Alarm function)		 3.50 4.80 12 2.0 3.0 50 0.003 0.100 0.75 Built-in delay timer 310 -40 85 HSNT-8(1616)
S-82R1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Cell voltage monitor)		 3.50 4.80 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 350 -40 85 HSNT-8(1616)
S-82S1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Cell voltage monitor)		 3.50 4.80 15 2.0 3.0 50 0.003 0.100 1.00 Built-in delay timer 340 -40 85 HSNT-8(1616)
S-82D1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Temperature protection function)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 300 -40 85 HSNT-8(1616)
S-82G1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Charge-discharge current path separation)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 480 -40 85 HSNT-8(1616)
S-82G1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Charge-discharge current path separation)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 490 -40 85 HSNT-8(1616)
S-82Y1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.80 15 2.0 3.0 50 0.003 0.050 0.50 Built-in delay timer 100 -40 85 SNT-6A, HSNT-6(1618)
S-82P1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.80 15 2.0 3.0 50 0.003 0.100 0.75 Built-in delay timer 110 -40 85 HSNT-8(1616)
S-82P1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.80 15 2.0 3.0 50 0.003 0.100 0.75 Built-in delay timer 120 -40 85 HSNT-6(1618), SNT-6A
S-82K1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.00 Built-in delay timer 130 -40 85 HSNT-8(1616)
S-82K1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.00 Built-in delay timer 140 -40 85 SNT-6A, HSNT-6(1618)
S-82H1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 150 -40 85 HSNT-8(1616)
S-82H1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 160 -40 85 SNT-6A
S-82F1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 170 -40 85 HSNT-8(1616)
S-82F1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 180 -40 85 SNT-6A
S-82F1C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 15 2.0 3.0 50 0.003 0.100 1.50 Built-in delay timer 190 -40 85 HSNT-8(1616)
S-82C1E Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 20 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 200 -40 85 DFN-8(1616)
S-82C1F Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 20 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 210 -40 85 SNT-6A, DFN-6(1414)A
S-82A1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.60 20 2.0 3.0 50 0.010 0.100 3.00 Built-in delay timer 230 -40 85 SNT-6A, DFN-6(1414)A
S-82B1A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.50 4.60 20 2.0 3.0 50 0.010 0.100 3.00 Built-in delay timer 420 -40 85 SNT-6A
S-82B1B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.50 4.60 20 2.0 3.0 50 0.010 0.100 3.00 Built-in delay timer 430 -40 85 SNT-6A
S-8261 Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell 3.60 4.50 25 2.0 3.0 50 0.050 0.300 15.00 Built-in delay timer 470 -40 85 SOT-23-6
S-82A2A/B/C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 2-cell
(Sense resistor type)		 3.50 4.80 15 2.0 3.0 50 0.003 0.100 1.00 Built-in delay timer 600 -40 85 SNT-8A, HSNT-8(1616)
S-82B2A/B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 2-cell
(Sense resistor type)		 3.50 4.80 20 2.0 3.0 50 0.003 0.100 3.00 Built-in delay timer 610 -40 85 SNT-8A, HSNT-8(1616)
S-82C2A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 2-cell 3.50 4.80 20 2.0 3.0 50 0.003 0.400 3.00 Built-in delay timer 620 -40 85 SOT-23-6, SNT-6A
S-82C2B/C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 2-cell 3.50 4.80 20 2.0 3.0 50 0.003 0.400 3.00 Built-in delay timer 630 -40 85 SNT-8A, HSNT-8(1616)
S-8252 Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 2-cell 3.55 4.60 20 2.0 3.0 50 0.050 0.400 10.00 Built-in delay timer 640 -40 85 SOT-23-6, SNT-6A
S-8253C/D Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 2-cell, 3-cell 3.90 4.40 25 2.0 3.0 80 0.050 0.300 25.00 Built-in delay timer 650 -40 85 8-pin TSSOP
S-8203A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 3-cell 3.55 4.50 25 2.0 3.2 80 0.050 0.300 15.00 External delay capacitor 660 -40 85 16-pin TSSOP
S-8254A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 3-cell, 4-cell 3.90 4.45 25 2.0 3.0 80 0.050 0.300 25.00 External delay capacitor 690 -40 85 16-pin TSSOP
S-8204A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 3-cell, 4-cell 3.80 4.60 25 2.0 3.0 80 0.050 0.300 15.00 External delay capacitor 670 -40 85 16-pin TSSOP
S-8204B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 3-cell, 4-cell 3.65 4.60 25 2.0 3.0 80 0.050 0.300 15.00 External delay capacitor 680 -40 85 16-pin TSSOP
S-82B4A/5A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 4-cell, 5-cell 3.90 4.50 20 2.0 3.2 50 0.010 0.200 5.00 External delay capacitor 720 -40 85 16-pin TSSOP
S-82C4A/5A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 4-cell, 5-cell
(Temperature protection function)		 3.90 4.50 20 2.0 3.2 50 0.010 0.200 5.00 External delay capacitor 730 -40 85 16-pin TSSOP
S-8205A/B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 4-cell, 5-cell 3.55 4.40 25 2.0 3.2 80 0.050 0.300 15.00 External delay capacitor 740 -40 85 16-pin TSSOP
S-8245A/C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 3-cell, 4-cell, 5-cell
(Temperature protection function)		 3.55 4.60 20 2.0 3.2 80 0.020 0.300 10.00 External delay capacitor 700 -40 85 24-pin SSOP
S-8245B/D Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 3-cell, 4-cell, 5-cell
(Temperature protection function)		 3.55 4.60 20 2.0 3.2 80 0.020 0.300 10.00 External delay capacitor 710 -40 85 24-pin SSOP
S-8206A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 1-cell 3.50 5.00 20 - - - - - - Built-in delay timer 520 -40 85 SNT-6A, HSNT-6(1212)
S-8216A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 1-cell 4.00 5.00 15 - - - 0.003 0.100 1.50 Built-in delay timer 510 -40 85 SNT-6A
S-8244 Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 1-cell, 2-cell, 3-cell, 4-cell 3.70 4.50 25 - - - - - - External delay capacitor 950 -40 85 SNT-8A, TMSOP-8
S-8223A/B/C/D Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 2-cell, 3-cell 3.60 4.70 20 - - - - - - Built-in delay timer 920 -40 85 SNT-6A
S-8224A/B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 2-cell, 3-cell, 4-cell 3.60 4.70 20 - - - - - - Built-in delay timer 930 -40 85 SNT-8A
S-8264A/B/C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 2-cell, 3-cell, 4-cell 4.20 4.80 25 - - - - - - Built-in delay timer 940 -40 85 SNT-8A, 8-pin TSSOP
S-8215A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 3.60 4.70 25 - - - - - - Built-in delay timer 980 -40 85 SNT-8A, TMSOP-8
S-8215C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 2.70 4.70 20 - - - - - - Built-in delay timer 970 -40 85 SNT-8A, TMSOP-8
S-8265C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell (Cell-balance function) 2.75 4.70 20 - - - - - - Built-in delay timer 960 -40 85 SNT-8A, TMSOP-8
S-8259A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 1-cell 3.50 4.60 20 2.0 3.4 50 - - - Built-in delay timer 500 -40 85 SOT-23-6
S-8209A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring Cell-balance function 3.55 4.40 25 2.0 3.0 50 - - - External delay capacitor 840 -40 85 8-pin TSSOP, SNT-8A
S-8209B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring Cell-balance function 3.55 4.40 25 2.0 3.0 50 - - - External delay capacitor 850 -40 85 8-pin TSSOP, SNT-8A
S-8225A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 3-cell, 4-cell, 5-cell 3.50 4.40 20 2.0 3.2 80 - - - External delay capacitor 820 -40 85 16-pin TSSOP
S-8225B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 3-cell, 4-cell, 5-cell 3.50 4.40 20 2.2 3.2 80 - - - External delay capacitor 830 -40 85 16-pin TSSOP
S-8255A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 3-cell, 4-cell, 5-cell
(Temperature protection function)		 3.55 4.60 20 2.0 3.2 80 - - - External delay capacitor 800 -40 85 20-pin TSSOP
S-8255B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 3-cell, 4-cell, 5-cell
(Temperature protection function)		 3.55 4.60 20 2.0 3.2 80 - - - External delay capacitor 810 -40 85 20-pin TSSOP
S-8229A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Simple battery level indication Driving 3 LED indicators - - - - - - - - - -- 860 -40 85 SOT-23-6, SNT-6A
S-8269B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Overcurrent monitoring For multi-serial-cell pack - - - - - - 0.003 0.100 1.50 Built-in delay timer 1000 -40 85 SNT-6A
S-8239A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Overcurrent monitoring For multi-serial-cell pack - - - - - - 0.040 0.300 15.00 Built-in delay timer 1010 -40 85 SOT-23-6
S-8239B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Overcurrent monitoring For multi-serial-cell pack - - - - - - 0.040 0.300 15.00 Built-in delay timer 1020 -40 85 SOT-23-6
S-35710M I Wake-up Timer ICs chip1stop CoreStaFF Digi-Key MOUSER Programmable Wake-up Timer IC with Built-in Quartz Crystal Software 0.25 1.8 5.5 -40 85 HSOP-8Q
S-35710 I Wake-up Timer ICs chip1stop CoreStaFF Digi-Key MOUSER Programmable Wake-up Timer IC Software 0.20 1.8 5.5 -40 85 TMSOP-8
S-35720 I Wake-up Timer ICs chip1stop CoreStaFF Digi-Key MOUSER Pin-selectable Wake-up Timer IC Hardware 0.20 1.8 5.5 -40 85 TMSOP-8
S-35730 I Interval Timer ICs chip1stop CoreStaFF Digi-Key MOUSER Pin-selectable Interval Timer IC Hardware 0.20 1.8 5.5 -40 85 TMSOP-8
S-35740 I Interval Timer ICs chip1stop CoreStaFF Digi-Key MOUSER Programmable Interval Timer IC Software 0.20 1.8 5.5 -40 85 TMSOP-8
S-35770 I Counter ICs chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C-bus) Interface 1.5 5.5 10.0 -40 85 TMSOP-8
S-89430/89431 Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER 1 circuit, 2 circuits Yes 0.90 5.50 0.5 10.0, 5.0 4.8 0.005 3 -40 85 SC-88A, SOT-23-5, TMSOP-8, SNT-8A
S-89110/89120 Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER 1 circuit, 2 circuits - 1.80 5.50 50.0, 10.0 4.0 175, 35 0.070, 0.015 4 -40 125 SC-88A, SOT-23-5, TMSOP-8, SNT-8A
S-89130/89140 Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER 2 circuits - 2.70 5.50 1000, 270 6.0, 7.0 3000, 1000 2.000, 0.500 5 -40 125 TMSOP-8, SNT-8A
S-89713 Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER 2 circuits Yes 2.65 5.50 165 0.01 240 0.160 2 -40 85 TMSOP-8, SNT-8A
S-89630A Operational Amplifiers chip1stop CoreStaFF Digi-Key MOUSER 2 circuits Yes 4.00 36.00 250 0.05 1200 0.450 1 -40 125 TMSOP-8
S-89530A/89531A Comparators chip1stop CoreStaFF Digi-Key MOUSER 1 circuit Yes 0.9 5.5 0.7 10, 5 110 280 10 30 -40 85 SC-88A
S-89210/89220 Comparators chip1stop CoreStaFF Digi-Key MOUSER 1 circuit - 1.8 5.5 50, 10 4 30, 150 6, 30 2, 10 2, 10 -40 85 SC-88A
S-89230/89240 Comparators chip1stop CoreStaFF Digi-Key MOUSER 2 circuits - 1.8 5.5 23, 5.0 4 26, 100 4, 18 2, 10 2, 10 -40 85 TMSOP-8, SNT-8A
S-5718 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Omnipolar,
S pole,
N pole		 5.70,
50.50,
102.10		 1.4,
2.0,
12		 1.45 3.6 1.8,
3.0,
4.5		 -40 85 SNT-4A
S-5712E Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Omnipolar,
S pole,
N pole		 0.05,
0.10		 640 1.60 3.5 3.0,
4.5,
7.0		 -40 85 SNT-4A, SOT-23-3
S-5712A/B/C Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Omnipolar,
S pole,
N pole		 5.70,
6.05,
50.50,
50.85,
204.05,
204.10		 1.0,
1.4,
2.0,
6.0,
12		 1.60 3.5 1.8,
3.0,
4.5,
7.0		 -40 85 SNT-4A, SOT-23-3
S-5715 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Omnipolar,
S pole,
N pole		 0.05,
0.10,
0.90,
1.25,
5.70,
6.05		 13,
26,
60,
155,
1400		 2.70 5.5 3.0 -40 85 SNT-4A, SOT-23-3
S-5716 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Omnipolar,
S pole,
N pole		 50.50,
50.85		 2.6,
4.0		 2.70 5.5 1.8,
3.0,
3.4,
4.5,
7.0		 -40 85 SNT-4A, SOT-23-3
S-57B1 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER S pole 0.05 1400 2.70 5.5 3.0 -40 125 SOT-23-3
S-5724 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Bipolar 0.05,
1.25,
6.05		 6.0,
26,
640		 1.60 3.5 3.0 -40 85 SNT-4A, SOT-23-3
S-5725 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Bipolar 0.05,
1.25,
6.05		 13,
60,
1400		 2.70 5.5 0.8,
1.8,
3.0,
7.0		 -40 85 SNT-4A, SOT-23-3
S-57M1 Hall Effect ICs (Magnetic Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Bipolar 0.05 1400 2.70 5.5 3.0 -40 125 SNT-4A, SOT-23-3
S-575D B magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER Omnipolar 16 500 2.7 26.0 3.0,
6.0,
10.0,
15.0		 -40 125 TSOT-23-3S, HSNT-6(2025)
S-575S/5N B magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER S pole,
N pole		 8 500 2.7 26.0 3.0,
6.0,
10.0,
15.0		 -40 125 TSOT-23-3S, HSNT-6(2025)
S-5731 magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER S pole,
N pole		 16 250 3.5 26.0 3.0,
6.0		 -40 85 SOT-23-3
S-576Z B magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER ZCL 8 500 2.7 26.0 - -40 125 TSOT-23-3S, HSNT-6(2025)
S-576Z R magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER ZCL 8 500 2.7 26.0 - -50 150 TSOT-23-3S
S-576B B magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER Bipolar 8 500 2.7 26.0 0.5,
2.2,
3.0,
6.0,
10.0		 -40 125 TSOT-23-3S, HSNT-6(2025)
S-5743 A magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER Bipolar 8 500 2.7 26.0 0.5,
1.5,
2.2,
3.0		 -40 125 SOT-23-3S
S-5741 B magnetism-sensor-ic-high-speed chip1stop CoreStaFF Digi-Key MOUSER Bipolar 8 500 3.5 26.0 1.8,
3.0,
6.0		 -40 125 SOT-23-3S
S-8471 Wireless Power ICs chip1stop CoreStaFF Digi-Key MOUSER Constant voltage output Reception control 0.95 6.5 30 -40 85 SNT-6A
S-8473 Wireless Power ICs chip1stop CoreStaFF Digi-Key MOUSER With charge function to a Li-ion rechargeable battery (Charge current: 33mA) Reception control 2.20 5.0 250 -40 85 SNT-8A
S-8474 Wireless Power ICs chip1stop CoreStaFF Digi-Key MOUSER Continuous operation / Intermittent operation switch function Transmission control 4.50 6.5 200 -40 85 SNT-8A
S-1410/1411 Watchdog Timers chip1stop CoreStaFF Digi-Key MOUSER WDT+VD* Window/Time-out switchable,
Window mode		 Yes 2.0 5.0 0.1 1.5 0.9 6.0 3.8 -40 105 TMSOP-8, HSNT-8(2030)
S-77100/77101 Power Sequencers chip1stop CoreStaFF Digi-Key MOUSER 3 channels,
4 channels 		Reverse type,
Forward type		 Selectable 3.0 -40 85 8-Pin TSSOP, SNT-8A
S-82K5B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 3.50 4.70 20 - - - - - - Built-in delay timer 958 -40 85 SNT-8A, TMSOP-8
S-82M5B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 3.50 4.70 15 - - - - - - Built-in delay timer 956 -40 85 SNT-8A, TMSOP-8
S-19990 Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Step-up / Flyback, SSCG*, 36V input, Small packages Step-up (Boost) External PWM/PFM switching control 3.0 36.0 45.0 - - - 2200, 400 - Current limit, Short-circuit protection, Thermal shutdown, SSCG* -40 125 HTMSOP-8, HSNT-8(2030)
S-19980 Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Step-up / Flyback, 36V input, Small packages Step-up (Boost) External PWM/PFM switching control 3.0 36.0 45.0 - - - 2200, 400 - Current limit, Short-circuit protection, Thermal shutdown -40 125 HTMSOP-8, HSNT-8(2030)
S-19989 Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Start-Stop, 36V input, Small packages Step-up (Boost) External PWM/PFM switching control 3.0 36.0 45.0 - 6.8 8.5 2200, 400 - Current limit, Short-circuit protection, Thermal shutdown, STATUS -40 125 HTMSOP-8, HSNT-8(2030)
S-19999 Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER Start-Stop, SSCG*, 36V input, Small packages Step-up (Boost) External PWM/PFM switching control 3.0 36.0 45.0 - 6.8 8.5 2200, 400 - Current limit, Short-circuit protection, Thermal shutdown, SSCG*, STATUS -40 125 HTMSOP-8, HSNT-8(2030)
S-93C46C/56C/66C/76C/86C General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 3-wire (Microwire) 1 K, 2 K, 4 K, 8 K, 16K 1.6 5.5 1.8 5.5 2.0 4 1 million 100 170 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-24C02D/04D/08D/16D General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C) 2 K, 4 K, 8 K, 16K 1.7 5.5 1.7 5.5 1.0 5 1 million 100 90 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, SOT-23-5, DFN-8(2030)
S-24C08C General use Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 8 K 1.6 5.5 1.7 5.5 0.4 5 1 million 100 100 -40 85 WLP-6J
S-24C16C General use Serial EEPROMs (SPI, I2C, Microwire) 2-wire (I2C) 16K 1.6 5.5 1.7 5.5 0.4 5 1 million 100 110 -40 85 WLP-6J
S-24C32C/64C General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C) 32K, 64K 1.6 5.5 1.7 5.5 0.4 5 1 million 100 120 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-24C128C General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C) 128K 1.6 5.5 1.7 5.5 0.4 5 1 million 100 130 -40 85 8-pin SOP, 8-pin TSSOP
S-24C256C General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C) 256K 1.6 5.5 1.7 5.5 1.0 5 1 million 100 140 -40 85 8-pin SOP, 8-pin TSSOP
S-24C512C General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C) 512K 1.6 5.5 1.7 5.5 1.0 5 1 million 100 150 -40 85 8-pin SOP, 8-pin TSSOP
S-24CM01C General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER 2-wire (I2C) 1024K 1.6 5.5 1.7 5.5 1.0 5 1 million 100 160 -40 85 8-pin SOP
S-25C010A/020A/040A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 1 K, 2 K, 4 K 1.6 5.5 1.7 5.5 5.0 4 1 million 100 10 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-25C080A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 8 K 1.6 5.5 1.7 5.5 5.0 4 1 million 100 20 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, WLP-8H
S-25C160A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 16K 1.6 5.5 1.7 5.5 5.0 5 1 million 100 30 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, WLP-8J
S-25C320A/640A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 32K, 64K 1.6 5.5 1.7 5.5 5.0 5 1 million 100 40 -40 85 8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-25C128A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 128K 1.6 5.5 1.7 5.5 5.0 5 1 million 100 50 -40 85 8-pin SOP, 8-pin TSSOP
S-25C256A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 256K 1.6 5.5 1.7 5.5 10.0 5 1 million 100 60 -40 85 8-pin SOP, 8-pin TSSOP
S-25C512A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 512K 1.6 5.5 1.7 5.5 10.0 5 1 million 100 70 -40 85 8-pin SOP, 8-pin TSSOP
S-25CM01A General use Serial EEPROMs (SPI, I2C, Microwire) chip1stop CoreStaFF Digi-Key MOUSER SPI bus 1024K 1.6 5.5 1.7 5.5 10.0 5 1 million 100 80 -40 85 8-pin SOP
S-34TS04A EEPROMs for DIMM (SPD) chip1stop CoreStaFF Digi-Key MOUSER 4-Kbit SPD EEPROM with temperature sensor for DDR4 DIMMs I2C-bus with SMBus timeout JEDEC Standard TSE2004B2 -20 125 DFN-8(2030)B
S-34C04A EEPROMs for DIMM (SPD) chip1stop CoreStaFF Digi-Key MOUSER 4-Kbit SPD EEPROM for DDR4 DIMMs I2C-bus with SMBus timeout JEDEC Standard EE1004-1 -20 125 DFN-8(2030)A
S-585AA EEPROMs for SSD (VPD) chip1stop CoreStaFF Digi-Key MOUSER 4-Kbit VPD EEPROM with SMBus ARP function and temperature sensor SMBus / I2C-bus 1.7 -40 125 DFN-8(2030)B
S-34TS04L EEPROMs for SSD (VPD) chip1stop CoreStaFF Digi-Key MOUSER 4-Kbit VPD EEPROM with temperature sensor SMBus / I2C-bus 1.7 -20 125 DFN-8(2030)B
S-34C04A EEPROMs for SSD (VPD) chip1stop CoreStaFF Digi-Key MOUSER 4-Kbit VPD EEPROM SMBus / I2C-bus 1.7 -20 125 DFN-8(2030)A
S-82F5B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 3-cell, 4-cell, 5-cell 3.50 4.70 20 1.5 3.2 80 - - - Built-in delay timer 817 -40 85 SNT-8A, TMSOP-8
S-82H5B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Voltage monitoring 3-cell, 4-cell, 5-cell 3.50 4.70 15 1.5 3.2 80 - - - Built-in delay timer 815 -40 85 SNT-8A, TMSOP-8
S-19317 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low current consumption, High heat dissipation 3.0 36.0 45.0 250 3.3 5.0 2.0 0.10 150 3.0 1.0 LDO+VD* -40 125 HSOP-8A, TO-252-9S
S-19318 Automotive Linear Regulators (LDO Regulators) chip1stop CoreStaFF Digi-Key MOUSER Low current consumption, High heat dissipation 3.0 36.0 45.0 500 3.3 5.0 2.0 0.10 150 3.0 1.0 LDO+VD* -40 125 HSOP-8A, TO-252-9S
S-34HTS08AB EEPROMs for DIMM (SPD) chip1stop CoreStaFF Digi-Key MOUSER DDR5 SPD EEPROM with HUB built-in temperature sensor I2C-bus/I3C-bus JEDEC Standard SPD5118 -40 125 DFN-8(2030)B
S-19952/19953 Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 5.5V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 2.7 5.5 6.5 0.6 0.8 3.3 2250 95 Current limit, Short-circuit protection, Thermal shutdown, Power Good -40 125 HTMSOP-8, HSNT-8(1616)B
S-19954/19955 Automotive Switching Regulators (DC-DC Converters) chip1stop CoreStaFF Digi-Key MOUSER 5.5V input, Small packages Step-down (Buck) Built-in PWM control,
PWM/PFM switching control		 2.7 5.5 6.5 1.0 0.8 3.3 2250 95 Current limit, Short-circuit protection, Thermal shutdown, Power Good -40 125 HTMSOP-8, HSNT-8(1616)B
S-82Y1C Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(Sense resistor type)		 3.50 4.80 10 2.0 3.0 50 0.003 0.050 0.50 Built-in delay timer 99 -40 85 HSNT-6(1618)
S-82P5B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 2.70 4.70 15 - - - - - - Built-in delay timer 966 -40 85 SNT-8A, TMSOP-8
S-19193 Automotive Lithium-ion Battery Protection ICs / EDLC Voltage Monitoring ICs chip1stop CoreStaFF Digi-Key MOUSER For voltage monitoring Automotive 3-cell, 4-cell, 5-cell, 6-cell 2.5 4.5 20 1.0 3.0 80 - - - Built-in delay timer -40 125 HTSSOP-16
S-821A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(High-side protection)		 3.50 4.80 15 2.0 3.0 50 -0.003 -0.100 1.00 Built-in delay timer 290 -40 85 SNT-8A, WLP-8V
S-821B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection 1-cell
(High-side protection)		 3.50 4.80 15 2.0 3.0 50 -0.003 -0.100 0.75 Built-in delay timer 291 -40 85 SNT-8A, WLP-8V
S-5611A Hall Effect ICs (Linear Hall Effect Sensor ICs) chip1stop CoreStaFF Digi-Key MOUSER Non-ratiometric 4.5 5.5 6 180 0.15 1.5 100 to 400 1.25 -40 125 TMSOP-8
S-82K5A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 3.50 4.70 20 - - - - - - Built-in delay timer 957 -40 85 SNT-8A, TMSOP-8
S-82K3B/K4B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell
(With constant voltage output pin for RTC,
enabling any order of battery connection)		 3.60 5.00 15 - - - - - - Built-in delay timer 901 -40 85 DFN-8(2020)A
S-82H4B Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell
(With constant voltage output pin for RTC)		 3.60 5.00 15 - - - - - - Built-in delay timer 911 -40 85 DFN-8(2020)A
S-82M3A/M4A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell
(With constant voltage output pin for RTC,
enabling any order of battery connection)		 3.60 5.00 15 - - - - - - Built-in delay timer 880 -40 85 DFN-8(2020)A
S-82L4A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell
(With constant voltage output pin for RTC)		 3.60 5.00 15 - - - - - - Built-in delay timer 890 -40 85 DFN-8(2020)A
S-82M5A Lithium-ion Battery Protection ICs chip1stop CoreStaFF Digi-Key MOUSER Secondary protection 3-cell, 4-cell, 5-cell 3.50 4.70 15 - - - - - - Built-in delay timer 955 -40 85 SNT-8A, TMSOP-8
S-19161A Automotive Lithium-ion Battery Protection ICs / EDLC Voltage Monitoring ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection for 1-cell Pack Automotive 1-cell 3.5 4.8 15 2.0 3.0 50 0.005 0.100 1.5 Built-in delay timer -40 125 SOT-23-6
S-19161B Automotive Lithium-ion Battery Protection ICs / EDLC Voltage Monitoring ICs chip1stop CoreStaFF Digi-Key MOUSER Battery protection for 1-cell Pack Automotive 1-cell 3.5 4.8 15 2.0 3.0 50 0.003 0.100 1.0 Built-in delay timer -40 125 SOT-23-6
