S-8229A - Battery Monitoring IC S-8229A Series

The S-8229A Series is a battery monitoring IC developed using CMOS technology. Compared with conventional CMOS voltage detectors, the S-8229 Series is ideal for the applications that require high-withstand voltage due to its maximum operation voltage as high as 24 V.
The S-8229 Series is capable of confirming the voltage in stages since it detects three voltage values.

Features

Detection voltage accuracy: ±1.0%
Hysteresis characteristics: V_HYS1 to V_HYS3 = 0 mV, 50 mV, 300 mV, 400 mV, 500 mV
Current consumption: During operation: I_DD1 = 9.0 μA max. (−V_DETtotal^*1 ≥ 42 V) , I_DD1 = 11.0 μA max. (−V_DETtotal^*1 < 42 V); During power-off: I_DD2 = 0.1 μA max.
Operation voltage range: V_DD = 3.6 V to 24 V
Detection voltage: −V_DET1(S) to −V_DET2(S) = 10.5 V to 21.5 V (0.1 V step)
−V_DET3(S) = 7.5 V to 21.5 V (0.1 V step)
Output form: Nch open-drain output
Output logic^*2: Full charge all on, full charge all off
Operation temperature range: Ta = -40°C to +85°C
Lead-free (Sn 100%), halogen-free

*1. −V_DETtotal: Total detection voltage
−V_DETtotal = −V_DET1(S) + −V_DET2(S) + −V_DET3(S)
*2. Full charge all on: When the input voltage is equal to or higher than each of the three detection voltage values,
V_OUT1 = V_OUT2 = V_OUT3 = V_SS.
Full charge all off: When the input voltage is equal to or higher than each of the three detection voltage values,
V_OUT1 = V_OUT2 = V_OUT3 = “High-Z”.

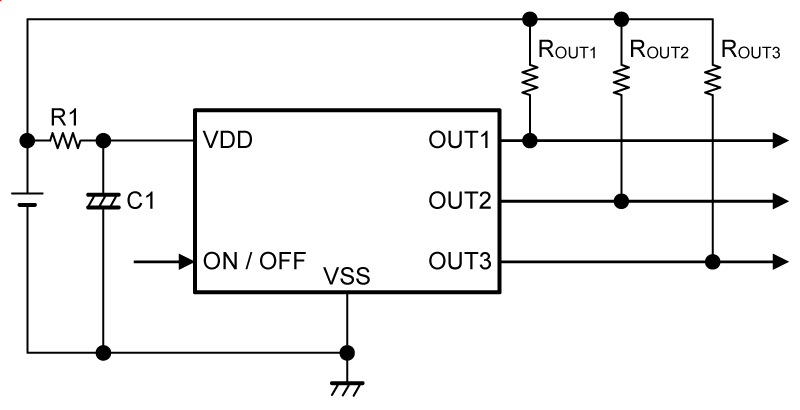

Applications

Rechargeable lithium-ion battery pack

Parts List

Product Name	Package	Detection Voltage 1 [−VDET1(S)] (V)	Detection Voltage 2 [−VDET2(S)] (V)	Detection Voltage 3 [−VDET3(S)] (V)	Hysteresis Width 1 [VHYS1(S)] (V)	Hysteresis Width 2 [VHYS2(S)] (V)	Hysteresis Width 3 [VHYS3(S)] (V)	Output Logic*1
Product Name
S-8229AAA-M6T1U	SOT-23-6	19.400	18.100	15.300	0	0	0	Full charge all on
S-8229AAB-M6T1U	SOT-23-6	19.400	18.100	15.300	0.500	0.500	0.500	Full charge all on
S-8229AAC-M6T1U	SOT-23-6	19.500	18.000	15.500	0.050	0.050	0.050	Full charge all on
S-8229AAG-M6T1U	SOT-23-6	15.600	14.800	13.600	0.500	0.500	0.500	Full charge all on
S-8229AAH-M6T1U	SOT-23-6	20.000	18.500	16.000	0.500	0.500	0.500	Full charge all on
S-8229AAI-M6T1U	SOT-23-6	20.000	18.500	16.000	0.050	0.050	0.050	Full charge all on
S-8229AAJ-M6T1U	SOT-23-6	15.100	14.300	13.100	0.500	0.500	0.500	Full charge all on
S-8229AAK-M6T1U	SOT-23-6	15.600	14.400	12.400	0	0	0	Full charge all on
S-8229AAL-M6T1U	SOT-23-6	19.000	17.500	15.000	0	0	0	Full charge all on
S-8229AAM-M6T1U	SOT-23-6	19.200	17.900	12.500	0	0	0	Full charge all on
S-8229AAN-M6T1U	SOT-23-6	11.500	10.700	7.500	0	0	0	Full charge all on
S-8229AAO-M6T1U	SOT-23-6	19.900	19.000	18.100	0	0	0	Full charge all on
S-8229AAF-I6T1U	SNT-6A	18.000	15.000	21.500	0.050	0.050	0.050	Full charge all on

Product Name

Package

Detection
Voltage 1
[−VDET1(S)]
(V)

Detection
Voltage 2
[−VDET2(S)]
(V)

Detection
Voltage 3
[−VDET3(S)]
(V)

Hysteresis
Width 1
[VHYS1(S)]
(V)

Hysteresis
Width 2
[VHYS2(S)]
(V)

Hysteresis
Width 3
[VHYS3(S)]
(V)

Output Logic*1

Product Name

S-8229AAA-M6T1U

SOT-23-6

19.400

18.100

15.300

Full charge all on

S-8229AAB-M6T1U

SOT-23-6

19.400

18.100

15.300

0.500

Full charge all on

S-8229AAC-M6T1U

SOT-23-6

19.500

18.000

15.500

0.050

Full charge all on

S-8229AAG-M6T1U

SOT-23-6

15.600

14.800

13.600

0.500

Full charge all on

S-8229AAH-M6T1U

SOT-23-6

20.000

18.500

16.000

0.500

Full charge all on

S-8229AAI-M6T1U

SOT-23-6

20.000

18.500

16.000

0.050

Full charge all on

S-8229AAJ-M6T1U

SOT-23-6

15.100

14.300

13.100

0.500

Full charge all on

S-8229AAK-M6T1U

SOT-23-6

15.600

14.400

12.400

Full charge all on

S-8229AAL-M6T1U

SOT-23-6

19.000

17.500

15.000

Full charge all on

S-8229AAM-M6T1U

SOT-23-6

19.200

17.900

12.500

Full charge all on

S-8229AAN-M6T1U

SOT-23-6

11.500

10.700

7.500

Full charge all on

S-8229AAO-M6T1U

SOT-23-6

19.900

19.000

18.100

Full charge all on

S-8229AAF-I6T1U

SNT-6A

18.000

15.000

21.500

0.050

Full charge all on
