ABLIC offers watchdog timers with reset function featuring selectable window or timeout modes. Due to the industry top class super-low current consumption, ABLIC watchdog timers are optimal for monitoring system of microcontrollers.
*WDT: Watchdog timer
*VD: Voltage detector (Reset IC)
| Series Name (Product Summary) | Data Sheet | Type | [WDT] Watchdog Mode | [WDT] Watchdog enable | [VD] Detection voltage min (V) | [VD] Detection Voltage max (V) | [VD] Detection Voltage step (V) | [VD] Detection Voltage accuracy ±(%) | [Overall] Input Voltage min (V) | [Overall] Input Voltage max (V) | [Overall] Current Consump. typ (?A) | [Overall] Operating Temp. min(?) | [Overall] Operating Temp. max (?) | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Series Name | Package | |||||||||||||

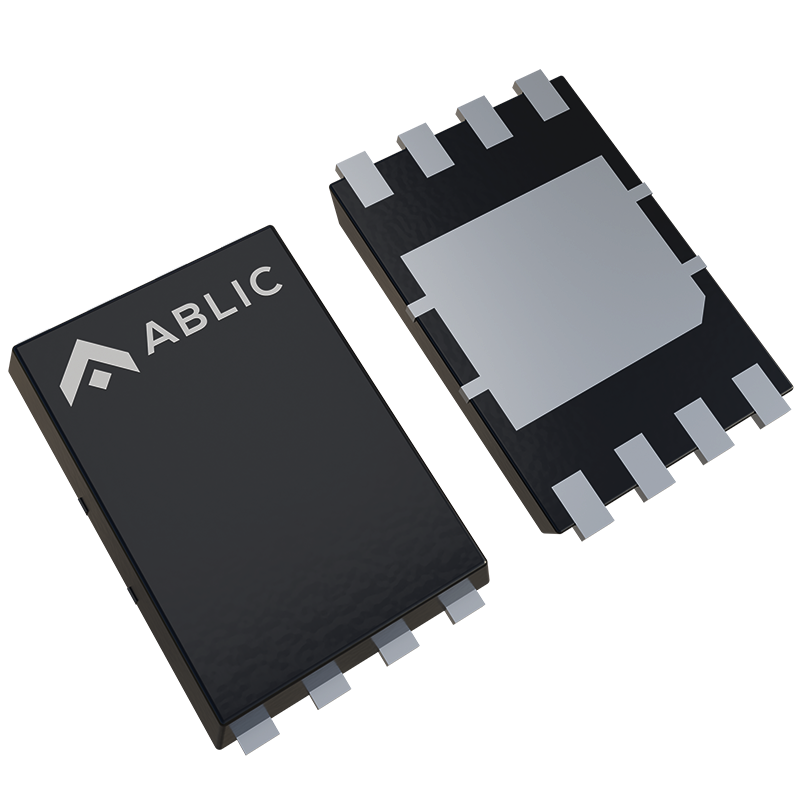

| S-1410 | WDT+VD* | Window/Timeout | Yes | 2 | 5 | 0.1 | 1.5 | 0.9 | 6 | 3.8 | -40 | 105 | TMSOP-8, HSNT-8(2030) | |
| S-1411 | WDT+VD* | Window | Yes | 2 | 5 | 0.1 | 1.5 | 0.9 | 6 | 3.8 | -40 | 105 | TMSOP-8, HSNT-8(2030) |
If you can not find the product, please click here or contact our sales representatives.
