Applications

Automotive Camera



ICs ideal for Automotive Camera

The concern for greater vehicle safety has increased the number of automotive camera modules that are installed in a vehicle.

The demands on cameras expected to safeguard vehicle safety are relentless.
Higher resolution (from VGA to 1 or 2 megapixel) in the same size of housing as the previous model or preferably more compact”  This is a hurdle for the designers to overcome.

The solution we propose is to “downsize the power supply IC, an indispensable part in an automotive camera.”
ABLIC's product lineup supports the downsizing and higher performance of automotive camera modules. For example, we provide DC-DC converters in the industry's smallest class of ultra compact packages or LDO regulator reset ICs with a minimum number of parts.

automotive camera block circuit

Click the product name for more ​product information.

*VD: Voltage detector (Reset IC)   *LDO: Low-dropout regulator   *WDT: Watchdog timer



ABLIC's ICs ideal for Automotive Camera Modules

Block Product Recommended product Applications and Features
Camera module DC-DC converter
(Switching regulator)
S-19902/3 36V input, available in the industry's smallest package. Contributes to fewer and more compact external parts.
Camera module DC-DC converter
(Switching regulator)
S-19932/3
2.2MHz
18V input, available in an ultra-compact (2.46 x 1.96mm) package.
Camera module
Camera ECU
DC-DC converter
(Switching regulator)
S-19914/5 36V input, low noise, available in the industry's smallest package. Contributes to fewer and more compact external parts.
Camera module DC-DC converter
(Switching regulator)
S-19944/5 18V input, low noise. Contributes to fewer and more compact external parts.
Camera module Secondary DC-DC converter
(Switching regulator)
S-19954/5 5.5V input, available in the industry's smallest package. with Power Good function, high-efficiency.
Camera module Secondary LDO Regulator
(Linear regulator)
S-19255 5.5V input, 125℃ operation, 300mA output current
Available in an ultra compact (1.0 x 1.0mm) package. Noise countermeasures include a high ripple rejection rate. 0.1μF input capacitors can be used.
Camera module Secondary LDO Regulator
(Linear regulator)
S-19251 5.5V input, 105℃ operation, 150mA output current
Available in an ultra compact (0.8 x 0.8mm) package. Noise countermeasures include a high ripple rejection rate.
Camera module Secondary LDO Regulator
(Linear regulator)
 S-19252 5.5V input, 105℃ operation, 150mA output current
Available in an ultra compact (1.0 x 1.0mm) package. Soft start function is integrated.
Camera module Window Voltage Detector S-191A/B Monitors undervoltage and overvoltage. With manual reset function(S-191A). Available in a compact (1.6 x 1.6mm) package.
Camera module Voltage detector
(Reset IC)
S-19100
(105℃ operation)
Available in an ultra compact package (1.2 x 1.6mm) ideally suited to high density mounting. Ultra-low current consumption of 270nA.
Camera module Voltage detector
(Reset IC)
S-19100
(125℃ operation)
Available in an ultra compact package (2.0 x 2.1mm) ideally suited to high density mounting. Ultra-low current consumption of 270nA.
Camera module
Camera ECU
Watchdog Timer S-19400/1
(125℃ operation)
Industryʼs top class super-low current consumption 3.8µA. With reset function. Available in 2.0 x 3.0mm package.
Camera module
Camera ECU
Battery Monitoring IC
(Voltage detector)
S-19114 Industry's fastest detection response time of 10µs max. Built-in SENSE Pin reverse connection protection circuit. Available in 2.46 x 1.96mm package.
Camera module
Camera ECU
Battery Monitoring IC
(Voltage detector)
S-19110 VDD detection/SENSE detection, Output logic selectable. Ultra-low current consumption of 0.60μA.
Camera ECU Battery Monitoring IC
(Voltage detector)
S-191L/N The industry's first “Supply voltage divided output” to help the microcontrollers in monitoring voltage. With overvoltage and undervoltage monitoring functions.
Camera ECU High side switch with a current monitor function S-19682/3 Available in the industry's smallest package. Connection diagnosis delivers "Small, Simple and High Accuracy”.
Camera ECU LDO Regulator with a current monitor function S-19700/1 An LDO regulator IC capable of detecting a variety of connection faults.

ABLIC's ICs ideal for Automotive Camera Modules

Block Product Recommended product Applications and Features
Camera ECU Battery Monitoring IC
(Voltage detector)
S-191L/N The industry's first “Supply voltage divided output” to help the microcontrollers in monitoring voltage. With overvoltage and undervoltage monitoring functions.
Camera ECU High side switch with a current monitor function S-19682/3 Available in the industry's smallest package. Connection diagnosis delivers "Small, Simple and High Accuracy”.
Camera ECU LDO Regulator with a current monitor function S-19700/1 An LDO regulator IC capable of detecting a variety of connection faults.

Features

DC-DC converter S-19902/3 series
Ultra-compact package

Automotive, 125°C Operation, 36V Input, 600 mA Synchronous Step-Down Switching Regulator S-19902A/19902B/19903A/19903B Series

The S-19902/3 Series minimizes overall DC-DC converter footprint

This switching regulator can be directly connected to 36V battery input and ensures operation up to 125°C. High transient response and low ripple reduce the number and size of external parts.

≫Learning more about the S-19902/3

Series name


S-19902A/B
S-19903A/B

Datasheet

Application note

Switching frequency: 2.2MHz

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

DC-DC converter S-19914/5 series
Low noise
Ultra-compact package

Automotive, 125°C Operation, 36 V Input, 1 A, Low EMI, Synchronous Step-down Switching Regulator S-19914A/19914B/19915A/19915B Series

Achieves low noise in the industry's smallest ultra-small package!

Built-in spread spectrum clock generation circuit. This reduces conducted emission to about 1/3 of our conventional products.
A step-down switching regulator (DC-DC converter) with a 36V input capable of direct connection to a battery, 1A output current in an HSNT-8(2030), the industry's smallest package. The total mounting area including external parts can also be the industry's smallest.

≫Learning more about the S-19914/5

Series name


S-19914A/B
S-19915A/B

Datasheet

Application note

Switching frequency: 2.2MHz

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

DC-DC converter S-19954/5 series
Ultra-compact package
High-efficiency

Automotive, 125°C Operation, 5.5 V Input, 1 A, Synchronous Step-down Switching Regulator S-19954/19955 Series

Ideal for automotive cameras with the industry's smallest* package, Power Good function, and high efficiency.

The S-19954/5 Series is housed in the HSNT-8(1616)B package, the industry's smallest* package for 5.5V operation, 1A output, 2.25MHz oscillation frequency, and synchronous step-down switching regulators. Power Good function and the industry's top-class* power conversion efficiency meets all the specific requirements of automotive cameras.

≫Learning more about the S-19954/5

Series name


S-19954/5

Datasheet

Switching frequency: 2.25MHz

LDO Regulator S-19255 series
High PSRR
Ultra-compact package

Automotive, 125°C Operation, 5.5 V Input, 300 mA Voltage Regulator S-19255 Series

High PSRR LDO minimize automotive camera modules!

The industry's smallest package uses 1.0mm square HSNT-4(1010)B, and small capacitors can be used. Achieves high PSRR over a wide frequency range and does not require a circuit to reduce noise.

≫Learning more about the S-19255

Series name


S-19255

Datasheet

5.5V input, 125℃ operation, 300mA output current

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

Window Voltage Detector S-191A/B series
Window detection
Fast Detection Response

Automotive, 125°C Operation, 6 V, Window Voltage Detector with Fast Detection Response  S-191A/1B Series

Contributes to Building Greater Functional Safety of Automotive Devices

The window voltage detector capable of monitoring undervoltage and overvoltage, 6V input, voltage detection response time of 10µs typ. The S-191A Series has a manual reset function that enables the diagnosis of non-safe faults of the IC.

≫Learning more about the S-191A/B

Series name


S-191A

Datasheet

 Detection response time: 10μs typ.
 With manual reset function

S-191B

Datasheet

 Detection response time: 10μs typ.

Reset IC S-19100 H series
Ultra-low current consumption
Ultra-compact package

Automotive, 105°C Operation, 10 V Voltage Detector with Delay Function (External Delay Time Setting) S-19100xxxH Series

Ultra compact package ideally suited to high density mounting

This reset IC with a 10V rating and an ultra-low current consumption of 270nA (typ.) is available in a 1.2 x 1.6mm ultra compact package.
The S-19100 contributes both to a smaller mounting area and lower power consumption.

Series name


S-19100 H
(105℃ operation)

Datasheet

Current consumption: 270nA typ.

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

Battery Monitoring IC S-19114 series
Ultra-high speed detection
Low current consumption

Automotive, 125°C Operation, 36 V, Voltage Detector with Fast Detection Response, SENSE Pin Reverse Connection Protection, Delay Function (External Delay Time Setting) S-19114xxxA Series

Low Current Consumption Battery Monitoring IC with Industry's Fastest Detection Response

The S-19114 Series exhibits the industry's fastest voltage detection response time of 10µs max. and low current consumption of 2.0µA typ. Improves safety and lower current consumption of automotive devices.

≫Learning more about the S-19114

Series name


S-19114

Datasheet

 Detection response time: 10µs max.

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

Battery Monitoring IC S-191L/N series
Supply voltage divided output
Overvoltage and undervoltage monitoring

Automotive, 125°C Operation, 36 V, Supply Voltage Divided Output, Window Voltage Detector with SENSE Pin Reverse Connection Protection S-191L/191NxxxxA Series

The industry's first supply voltage divided output contributes to achieving functional safety

No external parts are required to convert the high voltage supplied by a battery or other source to the voltage that can be input to microcontrollers. Contributes to fewer parts and lower standby current.
S-191L/N Series comes in an ultra-small automotive HSNT-8(2030) package and has an ultra-low current consumption of 0.9μA. A detection voltage monitoring accuracy of ±1.5% (over the entire temperature range) helps improve voltage monitoring accuracy.

≫Learning more about the S-191L/N

Series name


S-191L/N

Datasheet

Application note

Undervoltage detection: 4.0V to 10.0V
Overvoltage detection: 16.0V to 18.0V

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

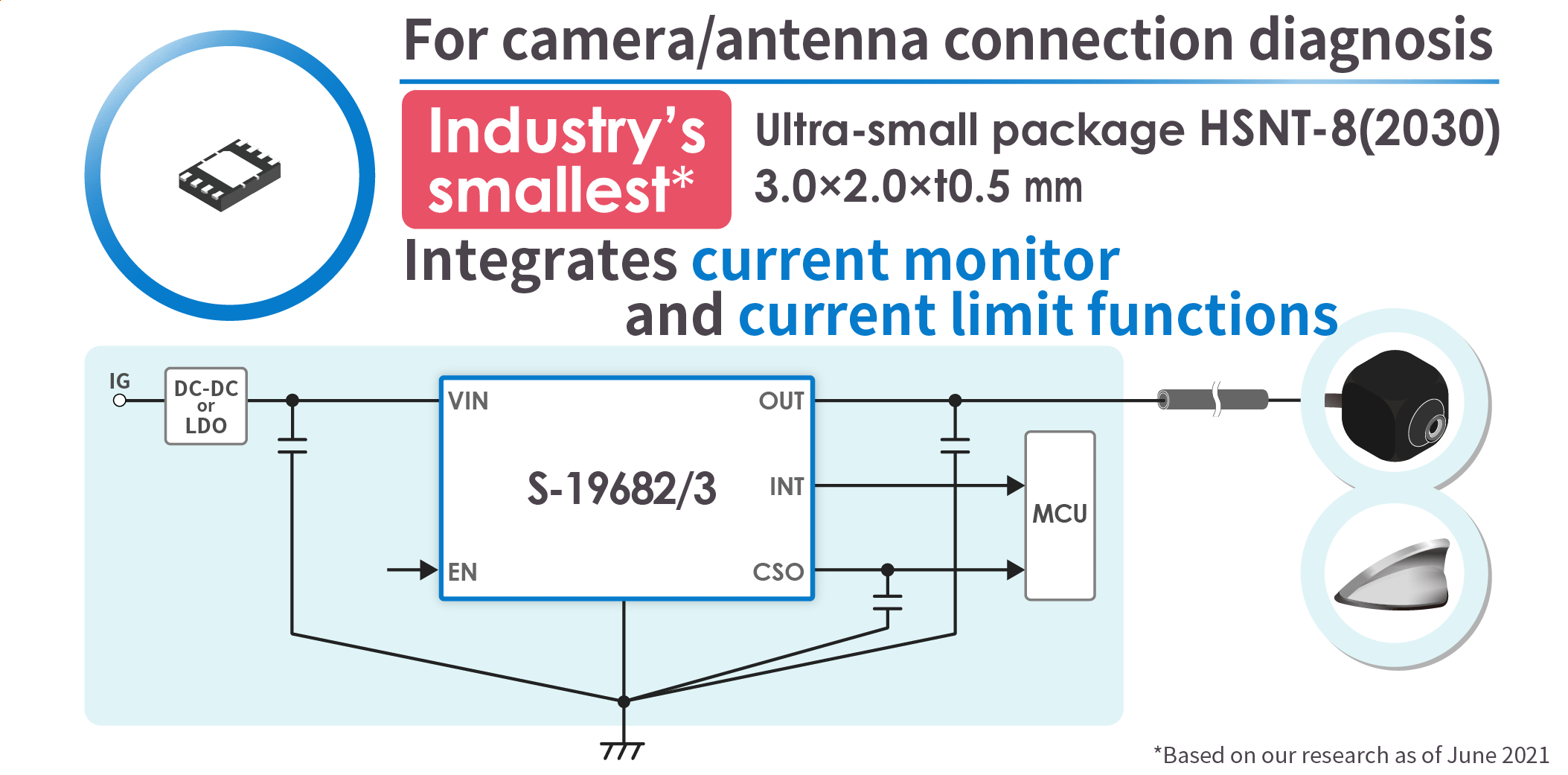

High side switch with Current Monitor and Current Limit S-19682/3 series
With current monitor
Ultra-compact package

Automotive, 125°C Operation, 36 V Input, High Side Switch with Current Monitor S-19682/3 Series

Connection diagnosis delivers “Small, Simple and High Accuracy”

This 1ch high-side switch provides 36V input, 600mA output current, a current monitor function and is housed in the industry's smallest package, the HSNT-8(2030). With the increasing multi-functionality of automotive cameras, antennas and sensors, the S-19682/3 Series with its capability to offer connectivity diagnosis of a variety of applications is a “Small, Space, Flexible” solution that makes it all work.

≫Learning more about the S-19682/3

Series name


S-19682

Datasheet

Output current: 300mA

Series name


S-19683

Datasheet

Output current: 600mA

Buy Online


chip1stop corestaFF ONLINE Digi-Key MOUSER

LDO regulator with Current Monitor and Adjustable Current Limit S-19700/1 series
With current monitor
Reverse current protection

Automotive, 125°C Operation, 36 V Input, Voltage Regulator with Current Monitor And Adjustable Current Limit S-19700/1 Series

This single IC detects power supply faults, ground faults, open faults and a number of other connection faults

This IC can single-handedly diagnose the load connection status for camera modules and GPS antennas. A current monitor function for diagnosing the load connection status is integrated and the current limit value can be freely set using the external resistance.

≫Learning more about the S-19701

Series name


S-19700
S-19701
