High-Voltage Analog Switches

High-Voltage Analog Switches

Low Power, Downsizing, and Cost Reduction
with ABLIC High-Voltage Analog Switches

ABLIC's high-voltage analog switches are based on technology we have cultivated in our ultrasound systems, allowing us to achieve high withstand voltage, multiple channels, low on-resistance, and a single power supply.

Key Features

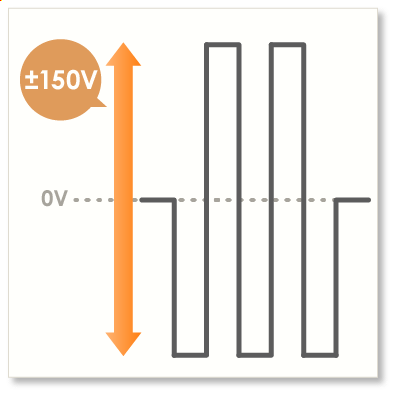

High-voltage signals can be input
High-voltage signals can be input
  • Supports ±100V at steady state voltage and ±150V at overshoot voltage.
  • It is possible to increase the input amplitude voltage to compensate for the amplitude drop caused by the on-resistance of the high-voltage switches.
Multi-channel high integration
Multi-channel high integration
  • 16 to 64-channel integration results in downsizing and cost reduction for your systems.
Single 5V power supply for very low power dissipation
Single 5V power supply for very low power dissipation
  • It can operate on a single 5V power supply, achieving excellent low consumption and contributing to your systems' safety design.

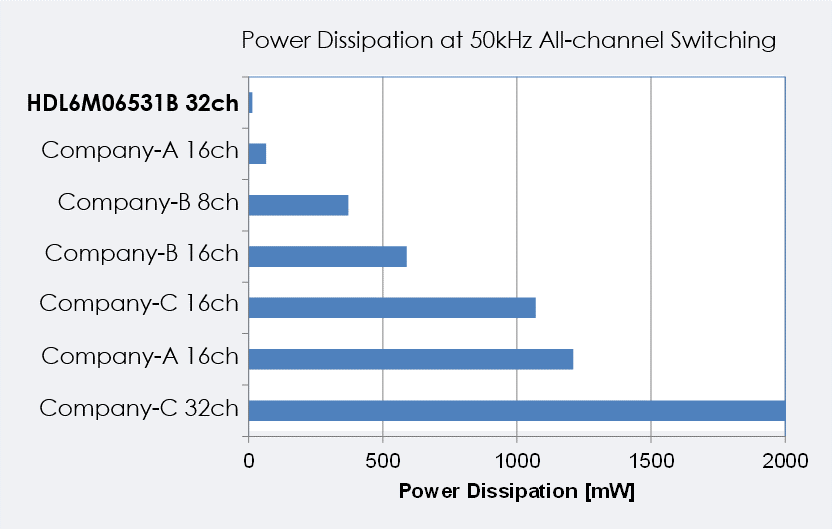

Power Dissipation at 50kHz All-channel Switching
Power Dissipation at 50kHz, All-channel Switching
Signal voltage-independent low on-resistance
Signal voltage-independent low on-resistance
  • Stable 4Ω to 8Ω on-resistance in the range of ±100V signal.

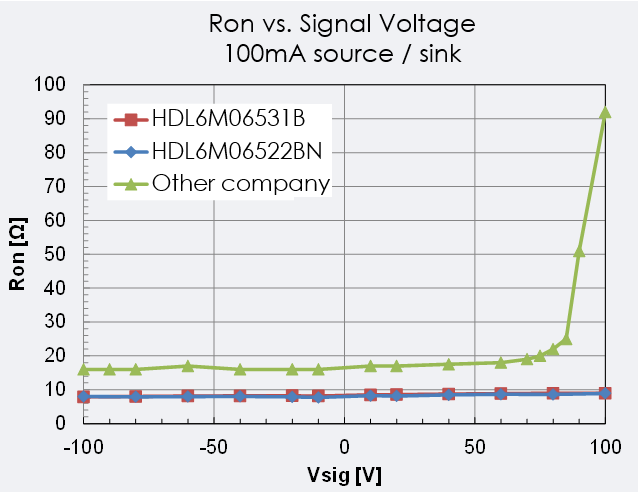

Ron vs. Signal Voltage 100mA source / sink
Ron vs. Signal Voltage, 100mA source / sink
Pin configuration for efficient PCB wiring
Pin configuration for efficient PCB wiring
  • The signal input and output terminals are arranged on opposite sides, making it possible to efficiently configure PCB wiring, contributing to compact systems and cost reduction.

Applications

  • Medical Ultrasound Imaging
  • Industrial Equipment
  • Measuring Instruments
  • Test Equipment
  • Mechanical Relays Replacement
Applications image

The latest information

qr-code

View All Products

For details, please contact our sales representatives.

Product NameDatasheetBuy onlineChannelsConfig.InterfaceSupply Voltage
(V)
Analog Signal
Voltage
(V)
Switch
Current
(A)
Switch Ron
(Ω)
Package
-Pins
Functions
SearchSelectSelectSelectSelectSelectSelectSelectSelect
HDL6M06502BPDFchip1stopCoreStaFFDigi-KeyMOUSER16SPST4 Banks of 45±100±2.08QFN-5216-channel (4 banks of 4-channel) high-voltage SPST analog switch with active ground clamp
HDL6M06522BNPDFchip1stopCoreStaFFDigi-KeyMOUSER32SPSTSerial5±100±2.08QFN-8432-channel high-voltage SPST analog switch with active ground clamp
HDL6M06531BPDFchip1stopCoreStaFFDigi-KeyMOUSER32SPDTSerial5±100±2.08QFN-6432-channel high-voltage SPDT analog switch with active ground clamp (2:1 MUX / DEMUX)
S-UM6522EPDFchip1stopCoreStaFFDigi-KeyMOUSER32SPSTSDI/Bank5±100
(Overshoot: ±150)
±2.08QFN-8432-channel high-voltage SPST analog switches with user-selectable SDI or Bank interface
S-UM6531EPDFchip1stopCoreStaFFDigi-KeyMOUSER32SPDTSDI/Bank5±100
(Overshoot: ±150)
±2.08QFN-6432-channel high-voltage SPDT analog switches with user-selectable SDI or Bank interface
S-UM6523PDFchip1stopCoreStaFFDigi-KeyMOUSER32SPSTSDI/Bank5±100
(Overshoot: ±150)
±2.08BGA-16932-channel high-voltage SPST analog switches with user-selectable SDI or Bank interface
S-UM6524PDFchip1stopCoreStaFFDigi-KeyMOUSER32SPSTSDI/Bank5±100
(Overshoot: ±150)
±2.04BGA-33032-channel high-voltage SPST analog switches with user-selectable SDI or Bank interface
S-UM6532PDFchip1stopCoreStaFFDigi-KeyMOUSER64SPSTSDI/Bank5±100
(Overshoot: ±150)
±2.06BGA-44164-channel high-voltage SPST analog switches with user-selectable SDI or Bank interface

If you can not find the product, please click here or contact our sales representatives.
