Linear Regulators (LDO Regulators)

Introduction – Linear Regulator ICs (LDO Regulators)

LDO image

Voltage regulators from ABLIC inc.
provide the best solution for every product!

ABLIC voltage regulators contribute to the low power consumption, stable operation, and
high reliability of power supply circuits and respond to diverse customer needs with an extensive lineup.

・Overview

( )Output current


1. Low current consumption

Current consumption is dramatically reduced by using the latest CMOS process technology. Ideal for IoT devices and other battery-operated applications.

0.095μA (typ.)
S-1318(100mA)
0.35μA (typ.)
S-1317(100mA)、S-1740/1(100mA)
0.9μA (typ.)
S-1313(200mA)、S-1313 H(200mA)
1.0μA (typ.)
S-812C(75mA)、S-1206(250mA)


2. High-withstand voltage

Our lineup includes high-withstand voltage products for industrial equipment.

10V withstand voltage
S-817(75mA)、S-1200(150mA)、S-1133(300mA)
16V withstand voltage
S-812C(75mA)、S-816(1A)
24V or greater withstand voltage
S-87x(50mA)、S-1222B/D(200mA)、S-1212B/D(250mA)、S-1213(500mA)、S-1214(1A)、S-1142(200mA)


3. Ultra-small and ultra-thin packages

0.8mm square ultra-small and 0.33mm (max.) ultra-thin packages contribute to high-density mounting.

0.8×0.8×t0.4(max.)mm(HSNT-4(0808))
S-1312(150mA)、S-1313(200mA)、S-1313 H(200mA)、S-1333(300mA)
1.0×1.0×t0.4(max.)mm(HSNT-4(1010))
S-1317(100mA)、S-1318(100mA)、S-1312(150mA)、S-1312 H(150mA)、S-1335(150mA)、S-13R1(150mA)、
S-1313(200mA)、 S-1313 H(200mA)、S-1324(200mA)、S-1333(300mA)、S-1740/1(100mA)
1.2×1.2×t0.4(max.)mm(HSNT-6(1212))
S-1315(200mA)、S-13D1(150mA)、S-1740/1(100mA)
1.8×1.5×t0.33(max.)mm(DFN-6(1518)A)
S-1222B/D(250mA)
0.98×0.73×t0.6(max.)mm(WLP-4R)
S-812C(75mA)


4. High-temperature operation

Our lineup of 105°C operation products can be used in industrial equipment and a wide variety of applications.

105°C operation
S-1312 H(150mA)、S-1313 H(200mA)、S-1212B/D(200mA)、S-1213(500mA)、S-1214(1A)

Automotive ICs



・Lineup


1. The world’s smallest class! Current consumption of 95nA! S-1318

・Extends the life of IoT devices.

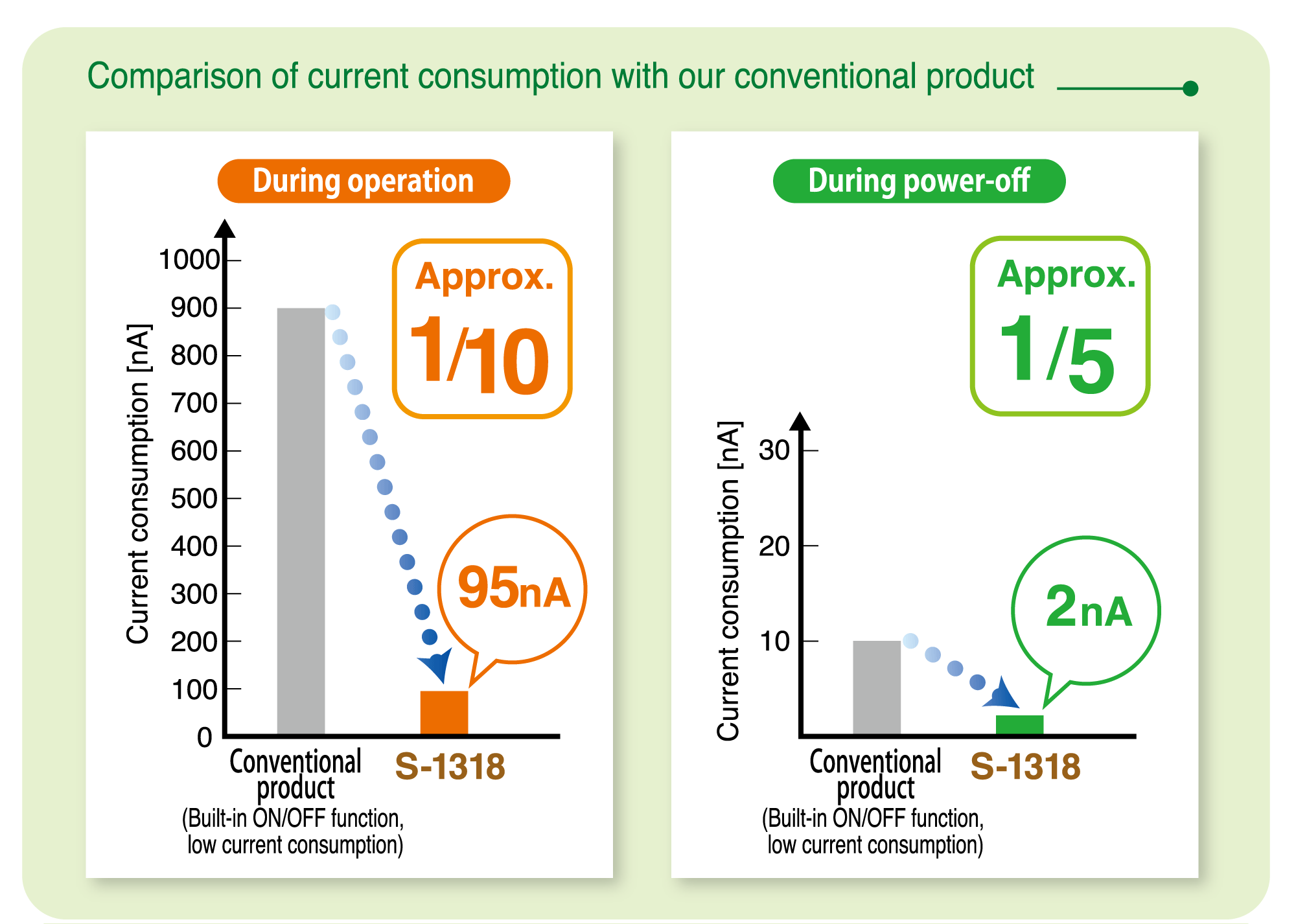

Comparison of current consumption

・Ultra-small 1.0mm square package helps further shrink board size.

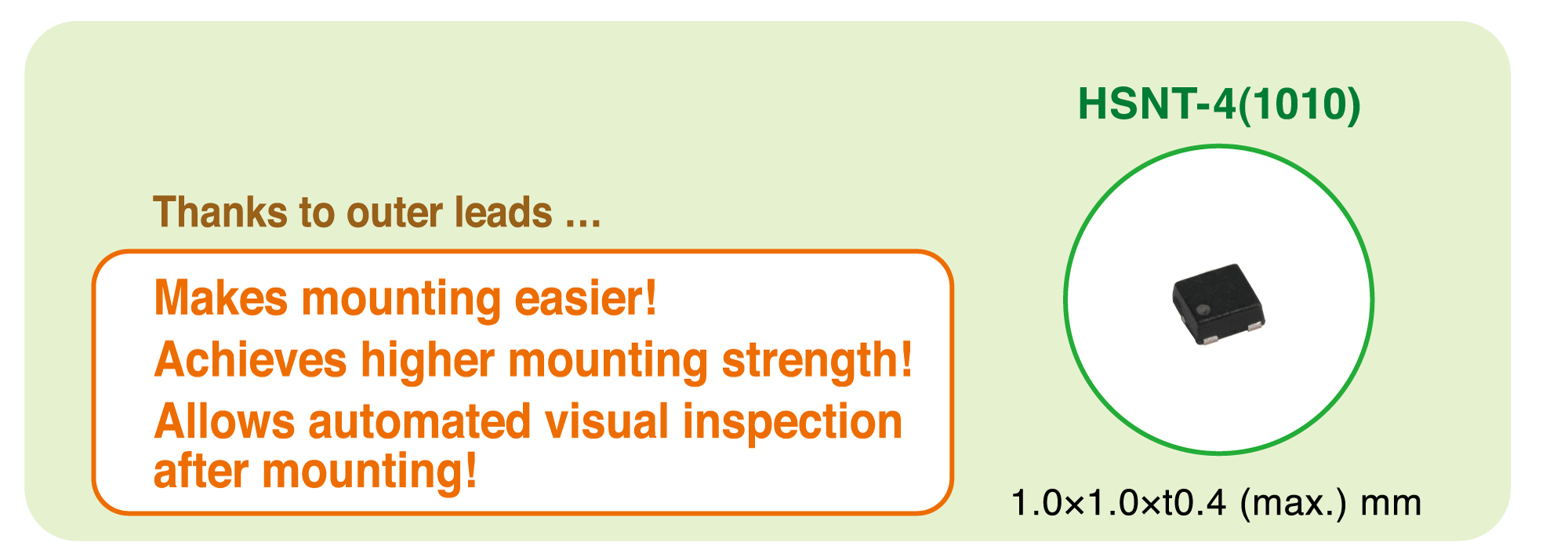

HSNT-4 pkg

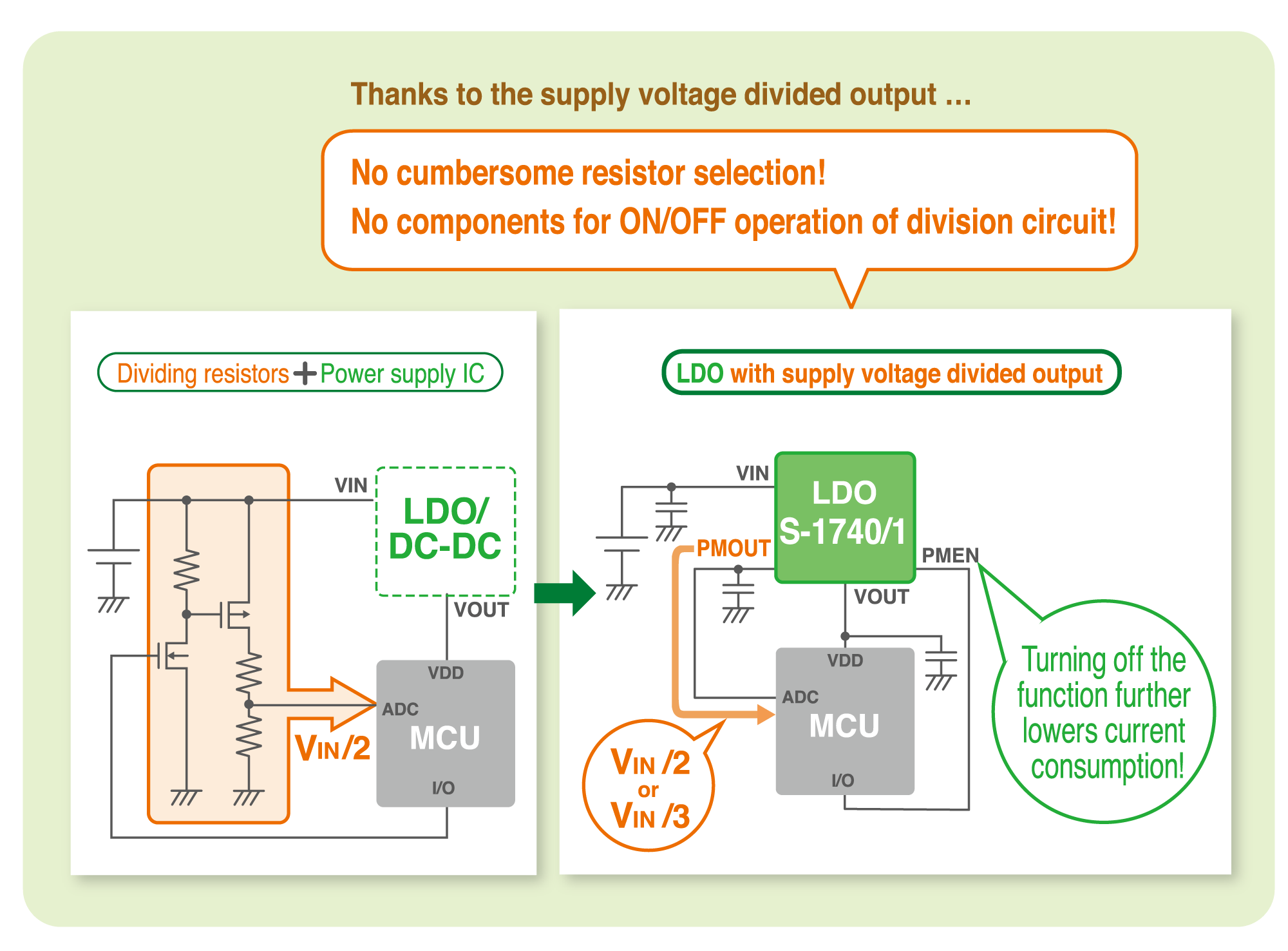

2. The world’s first LDO with supply voltage divided output! S-1740/1

・Easily realizes simplified monitoring method of remaining battery life.
Supply voltage divided output
Function that divides the input voltage of power supply IC using built-in high resistance and outputs it via a buffer.
This output is connected to an A/D converter in the MCU, enabling the MCU to monitor battery voltage.introduction S-1740

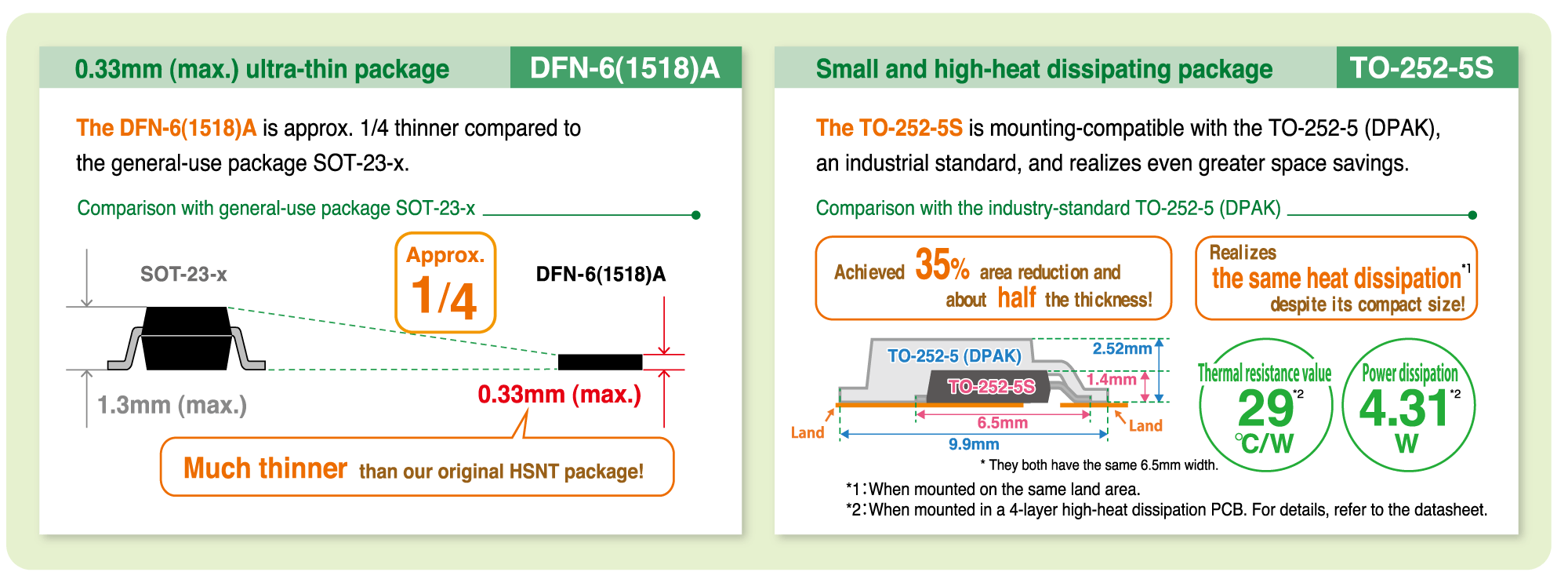

3. A high-withstand voltage LDO offered in a wide package lineup including small, thin and high-heat dissipating packages! S-1222B/D

・The customer can select the package that best suits application requirements.
introduction S-1222BD

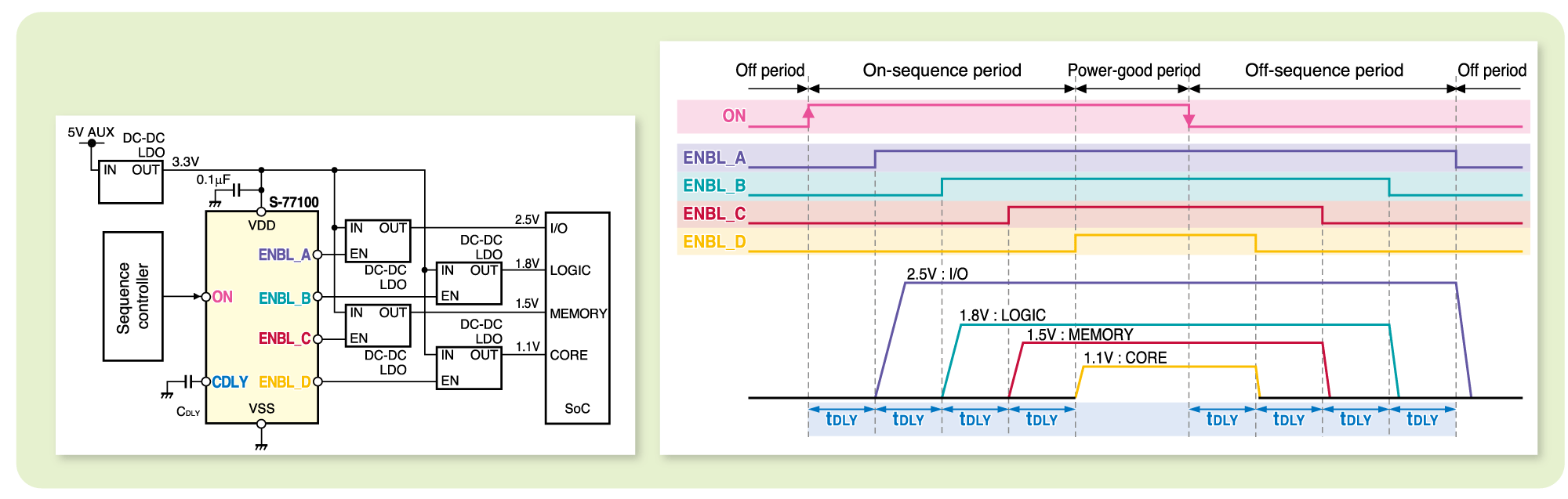

4. Power sequencer IC controlling the on/off-sequences of multiple power supplies S-77100/1

・Easily supports multiple power supply sequences.
・Single external capacitor enables time adjustments.
introduction S-77100

Series Name
(Product Summary)
Data SheetWebshopIout

(mA)
TypeVin
min
(V)
Vin
max
(V)
Vout
min
(V)
Vout
max
(V)
Accuracy
(±%)
*All Temp.
Iss

(µA)
RR
@1kHz
(dB)
Vdrop

(V)
Cout

(µF)
Features, Option*
* ICL: Inrush current control,
TS: Thermal shutdown, DS: Discharge shunt
Package
Series Name
S-812CPDFchip1stop
CoreStaFF
Digi-Key
MOUSER
75Linear-162.06.02.01-0.23-Low output current, 16V inputSOT-23-5, SOT-89-3, SOT-89-5, SNT-6A(H), TO-92, WLP-4R
S-817PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
75Linear-101.16.02.01.2-0.250.1Low output currentSOT-23-5, SOT-89-3, SC-82AB, SNT-4A, TO-92
S-816PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1000Linear2.5162.56.02.030-0.14.7With an external taransistorSOT-23-5
S-1317PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
100LDO1.55.51.03.51.00.35-0.021.0Super-low current consumption, overcurrent protectionSOT-23-5, HSNT-4(1010)
S-1318PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
100LDO1.75.51.23.31.00.095-0.0451.0Super-low current consumption, overcurrent protectionSOT-23-5, HSNT-4(1010)
S-1112PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.06.51.55.51.050800.190.47Conventional product with high ripple rejectionSOT-23-5, SNT-6A(H)
S-1122PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.06.51.55.51.050800.190.47Conventional product with high ripple rejectionSOT-23-5
S-1167PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.06.51.55.51.09700.151.0Low current consumption, high ripple rejectionSOT-23-5, SNT-6A(H)
S-1312PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO1.55.51.03.51.020750.160.220.8mm super-small package, TS*, DS* SOT-23-5, HSNT-4(0808), HSNT-4(1010)
S-1312xxxHPDF150LDO1.55.51.03.51.020750.160.22105°C operation, TS*, DS*SOT-23-5, HSNT-4(1010)
S-1323PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.06.51.55.51.070700.51.0Conventional productSC-82AB, SNT-4A
S-1335PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO1.55.51.03.61.036800.071.0High ripple rejection, Soft start function, DS*SOT-23-5, SC-82AB, HSNT-4 (1010)
S-13R1PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.05.51.24.01.05700.151.0Reverse current protection, TS*, DS*SOT-23-5, SC-82AB, HSNT-4(1010)
S-T111PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.06.51.55.51.050800.190.1TK111-equivalentSOT-23-5
S-1200PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.0101.55.51.018700.140.110V input supportSOT-23-5, SNT-6A(H), HSNT-6A
S-L2980PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
150LDO2.0101.56.02.090700.121.0LP2980-equivalentSOT-23-5
S-1222B/DPDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO3.0282.312.01.06.5-0.351.0Low-profile 0.33mm(max.), low consump., TS*, DS*TO-252-5S(A), HSOP-8A, HSOP-6, SOT-89-5, HTMSOP-8, SOT-23-5, DFN-6(1518)A
S-1313PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO1.55.51.03.51.00.9-0.160.10.8mm super-small package, TS*, DS*SOT-23-5, SC-82AB, HSNT-4(0808), HSNT-4(1010)
S-1313xxxHPDF200LDO1.55.51.03.51.00.9-0.160.1105°C Operation, 0.8mm super-small package, TS*, DS*SOT-23-5, SC-82AB, HSNT-4(0808), HSNT-4(1010)
S-1315PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO1.45.51.04.21.07650.220Output capacitor-less, DS*SOT-23-5, HSNT-6(1212)
S-1324PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO1.55.51.03.51.07650.171.0Low consump., low noise 17μVrmsSOT-23-5, SC-82AB, HSNT-4(1010)
S-1165PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO2.06.51.55.51.035700.142.2SOT-23-5
S-1206PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
250LDO1.76.51.25.21.01-0.150.1Super-low current consumptionSOT-23-3, SOT-89-3, SNT-6A(H)
S-1131PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO2.06.51.55.51.035700.252.2SOT-89-3, SOT-89-5, 6-Pin_HSON(A)
S-1132PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO2.06.51.55.51.020700.130.10.1µF capcitor availableSOT-23-5, SOT-89-5, SNT-6A(H)
S-1133PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO2.0101.28.21.060700.131.0External setting of Vout support, TS*SOT-89-5, SNT-8A
S-1135PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO1.55.51.03.51.045700.161.0With high heat dissipation package, DS*SOT-23-5, SOT-89-5, HSNT-6A
S-1137PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO1.75.51.23.51.045700.211.0Soft start, DS*SOT-23-5, SOT-89-5, SNT-6A(H)
S-1333PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO1.55.51.03.51.025750.141.00.8mm super-small package, TS*, DS*SOT-23-5, HSNT-4(0808), HSNT-4(1010)
S-1155PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
500LDO1.55.51.05.01.070700.074.7ICL*, TS*SOT-89-5
S-1170PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
800LDO2.06.51.55.51.080700.124.7TS*SOT-89-5, 6-Pin_HSON(A)
S-1172PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1000LDO1.55.51.05.01.070700.074.7ICL*, TS*SOT-89-5, HSOP-6
S-13A1PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1000LDO1.55.51.05.01.060700.072.2External setting of Vout support, ICL*, TS*, DS*HSOP-8A, HSOP-6, SOT-89-5, HSNT-6A
S-818PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
300LDO-102.06.02.030-0.32.0SOT-23-5, SOT-89-5
S-1701PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
400LDO+VD2.06.51.55.01.085700.141.01 LDO circuit + 1 detector circuitSOT-23-5, SOT-89-5
S-1711PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1502 LDOs2.06.51.55.51.070700.21.02 LDO circuits, DS*SOT-23-6, SNT-6A
S-1721PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1502 LDOs1.76.51.25.01.025800.131.02 LDO circuits, high ripple rejectionSOT-23-6, SNT-6A
S-1740/1741PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
100LDO1.55.51.03.51.00.5-0.021.0Supply voltage divided outputSOT-23-5, HSNT-6(1212), HSNT-4(1010)
S-13D1PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1502 LDOs1.55.51.03.61.039700.080.222 LDO circuits, delay function, TS*, DS*SOT-23-6, HSNT-6(1212)
S-87XPDFchip1stop
CoreStaFF
Digi-Key
MOUSER
50VR+VD-242.55.82.43-0.45-24V input support VR + detectorSOT-89-5
S-1212B/DPDFchip1stop
CoreStaFF
Digi-Key
MOUSER
250LDO3.0362.5162.06.5400.351.036V high input, 105℃ operation, TS*, DS*TO-252-5S(A), SOT-23-5, SOT-89-5, HSOP-6, HSOP-8A, HTMSOP-8
S-1213PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
500LDO2.8361.8301.05-0.131.0External setting of Vout support, 36V high input, 105℃ operation, TS*, DS*TO-252-5S(A), HSOP-8A
S-1214PDFchip1stop
CoreStaFF
Digi-Key
MOUSER
1000LDO2.8361.8301.05-0.131.0External setting of Vout support, 36V high input, 105℃ operation, TS*, DS*TO-252-5S(A), HSOP-8A
S-1142A/BPDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO3.0502.0151.04500.350.150V high input (low current consumption), TS*HSOP-6
S-1142C/DPDFchip1stop
CoreStaFF
Digi-Key
MOUSER
200LDO3.0502.0151.04500.350.150V high input (low current consumption), TS*HSOP-6

If you can not find the product, please click here or contact our sales representatives.
