Automotive Hall Effect ICs

1. Detection Types of ABLIC's Hall Effect ICs

ABLIC offers both Hall effect latch and switch ICs in the world's thinnest class packages to meet the needs of a wide variety of devices used in automobiles for motion detection.
Users can select the bipolar latch or the newly developed ZCL detection method for Hall effect latch ICs for motor control and rotation detection, and the unipolar or omnipolar detection method for Hall effect switch ICs for detecting opening, closing and sliding motion.
Please refer to our product lineupour product lineup for products using the different detection methods.

Detection types of ABLIC's Hall effect ICs



2. Innovating the Design and Manufacture of Automotive Brushless DC Motors Using ZCLTM Hall Effect ICs

A ZCL (=Zero Crossing Latch) Hall effect IC is a latch type Hall effect IC that uses a world first detection methodology to change the output signal at the zero-crossing point where polarity changes. Optimized for brushless DC (BLDC) motors, this Hall effect IC is not thrown off by changes in magnetic flux density and therefore provides stable detection.

Complex control programs are not needed to create a motor that runs smoothly.

A ZCL Hall effect IC is not easily affected by variations in magnets or changes in magnetic flux density and provides the expected rotation detection. Smooth motor rotation is obtained without complex program control.

Features of ZCL Hall effect IC: Helps create a motor that runs smoothly

Striving for a high efficiency motor that reduces the need for calibration

Rotation detection unaffected by temperature change or design tolerances is a ZCL Hall effect IC characteristic. Use a ZCL Hall effect IC to create a motor that will be able to constantly operate at full torque without calibration. Nor will it be affected by drops in efficiency due to temperature changes or design tolerances.

Features of ZCL Hall effect IC: Strives for a high efficiency motor

Providing an Innovative Sensor Layout

Regardless of the magnitude of magnetic flux density, as long as the changes in the magnetic flux received by a ZCL Hall effect IC are in the correct phase, these sensor ICs can be installed almost anywhere.
*However, the magnetic flux density received by a ZCL Hall effect IC must exceed the release point.

Features of ZCL Hall effect IC: Provides an Innovative Sensor Layout

What is the ZCL Hall effect IC?   |   ZCL Hall Effect ICs Ideal for BLDC Motors



3. ABLIC’s Automotive Hall Effect ICs for Safe and Reliable Automobile Manufacture

High Quality Hall Effect ICs Ensure the Reliability of Automotive Product Manufacture

Ablic's high quality Hall effect ICs

In our history of shipping a total of 2.5 billion units, none of our products have been found defective due to their magnetic characteristics.
Our stable manufacturing process delivers high-quality Hall effect ICs.

High-accuracy Hall Effect ICs Reduce Adjustment Workload

Ablic's high-accuracy Hall effect ICs

With a magnetic sensitivity twice that of conventional products, these ICs belong to the industry’s high-accuracy top class.

The minimization of variations in the same lot makes it easier to achieve expected motor performance.

The World’s Thinnest Class Packages Will Enable Flatter Motors and Increase Automobile Interior Space!

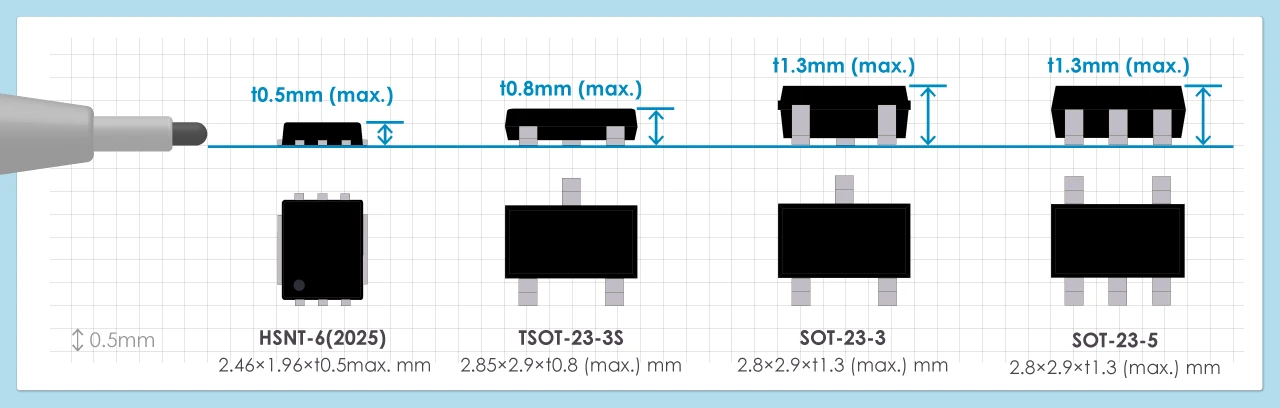

The world’s thinnest class packages

HSNT-6(2025)
Ultra-thin package of 0.5mm (max.) with outer leads. The high mounting strength is provided by soldering the heat sink on the back to a printed circuit board.

TSOT-23-3S
This gull-wing ultra-thin package of 0.8mm (max.) is approximately two-thirds the thickness of the general-purpose SOT-23-3 package.

A Wide Lineup Simplifies Customer Selection of Hall Effect ICs Ideal for Their Devices

A wide product lineup

ABLIC provides a lineup of Hall effect ICs ranging from high to low magnetic sensitivity in each detection method category.
Customers can build devices that optimally suits their applications by combining thin packages, detection methods and magnetic sensitivity.

4. Applications

Latch Type

Latch type applications

Hall Effect Latch ICs

150°C operation
ZCLTM Hall effect IC
for BLDC motors
S-57TZ S Series

150°C operation,
high-accuracy, thin
bipolar latch Hall effect IC
S-57RB S Series

125°C operation
bipolar latch Hall effect IC
S-57K1 A Series



Switch Type

Switch type applications

Hall Effect Switch ICs

150°C operation,
high-accuracy, thin
unipolar detection type
S-57GS/GN S Series

150°C operation,
high-accuracy, thin
omnipolar detection type
S-57GD S Series

125°C operation,
unipolar detection type
S-57A1 A Series

5. Automotive Hall Effect IC Product Lineup

Latch Type
03.06.01015






  • Detection type

    Product / Magnetic Sensitivity (mT)
    VDD (V)
    Ta max. (°C)
    Package
    Datasheet
  • ZCL

    S-57TZ Features:
    Automotive, 150°C Operation, High-Withstand Voltage, High-Speed, ZCLTM Hall Effect IC
    2.7 to 26
    150
    TSOT-23-3S,
    HSNT-6(2025)



  • Bipolar latch

    S-57RB Features:
    Automotive, 150°C Operation, High-Withstand Voltage, High-Speed, Bipolar Hall Effect Latch IC
    2.7 to 26
    150
    TSOT-23-3S,
    HSNT-6(2025)



  • Bipolar latch

    S-57K1 Features:
    For Automotive 125°C Operation High-Withstand Voltage High-Speed Bipolar Hall Effect Latch IC
    3.5 to 26
    125
    SOT-23-3



03.06.01015

Switch Type
03.06.01015






  • Detection pole

    Product / Magnetic Sensitivity (mT)
    VDD (V)
    Ta max. (°C)
    Package
    Datasheet
  • Omnipolar

    S-57GD Features:
    Automotive 150°C Operation, High-Withstand Voltage, High-Speed, Omnipolar Detection Type Hall Effect Switch IC
    2.7 to 26
    150
    TSOT-23-3S,
    HSNT-6(2025)



  • S pole

    S-57GS Features:
    Automotive, 150°C Operation, High-Withstand Voltage, High-Speed, Unipolar (S Pole) Detection Type Hall Effect Switch IC
    2.7 to 26
    150
    TSOT-23-3S,
    HSNT-6(2025)



  • N pole

    S-57GN Features:
    Automotive, 150°C Operation, High-Withstand Voltage, High-Speed, Unipolar (N Pole) Detection Type Hall Effect Switch IC
    2.7 to 26
    150
    TSOT-23-3S,
    HSNT-6(2025)



  • S / N pole

    S-57A1 Features:
    For Automotive 125°C Operation High-Withstand Voltage High-Speed Unipolar (S / N Pole) Detection Type Hall Effect Switch IC
    3.5 to 26
    125
    SOT-23-3



03.06.01015



6. Magnetic Simulation Service



7. Packages

Packages



8. Try ABLIC's Automotive Hall Effect ICs

Latch Type
S-57TZ 150°C, High-withstand voltage, High speed, ZCL detection chip1stop corestaFF ONLINE Digi-Key MOUSER
S-57RB 150°C, High-withstand voltage, High speed, Bipolar latch chip1stop corestaFF ONLINE Digi-Key MOUSER
S-57K1 125°C, High-withstand voltage, High speed, Bipolar latch chip1stop corestaFF ONLINE Digi-Key MOUSER
Switch Type
S-57GD 150°C, High-withstand voltage, High speed, Omnipolar detection chip1stop corestaFF ONLINE Digi-Key MOUSER
S-57GS 150°C, High-withstand voltage, High speed, Unipolar detection (S pole) chip1stop corestaFF ONLINE Digi-Key MOUSER
S-57GN 150°C, High-withstand voltage, High speed, Unipolar detection (N pole) chip1stop corestaFF ONLINE Digi-Key MOUSER
S-57A1 125°C, High-withstand voltage, High speed, Unipolar detection (S / N pole) chip1stop corestaFF ONLINE Digi-Key MOUSER
