Super Low Current Consumption Low Voltage Operation Omnipolar Detection Type Hall Effect Switch IC S-5719 Series

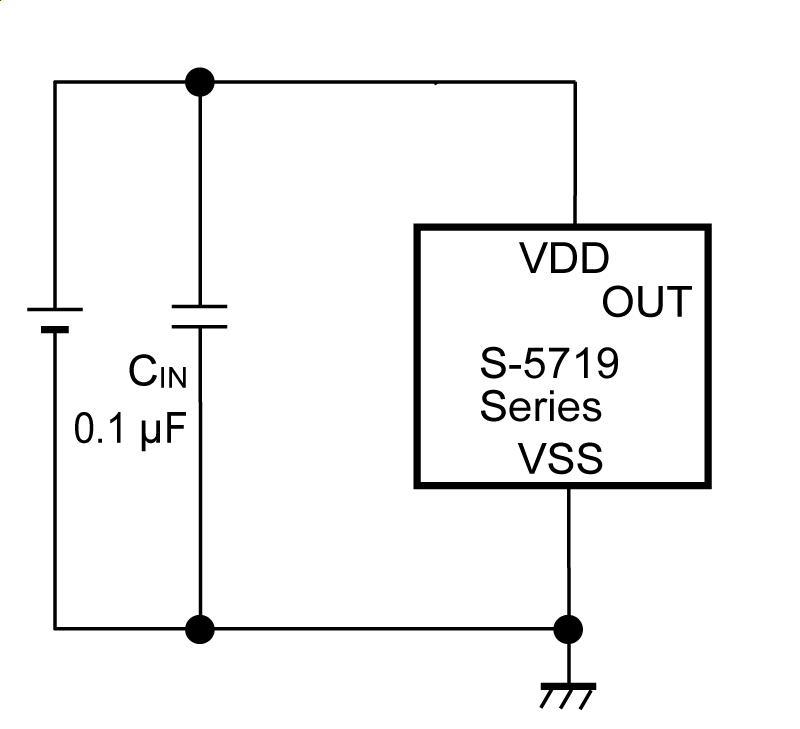

Product Overview Standard Circuit Example SNT-4A (PF004-A)

This IC, developed by CMOS technology, is a high-accuracy Hall effect switch IC that operates with super low current consumption and low voltage.
The output voltage changes when this IC detects the intensity level of magnetic flux density. Using this IC with a magnet makes it possible to detect the open / close in various devices.
High-density mounting is possible by using the super-small SNT-4A package.

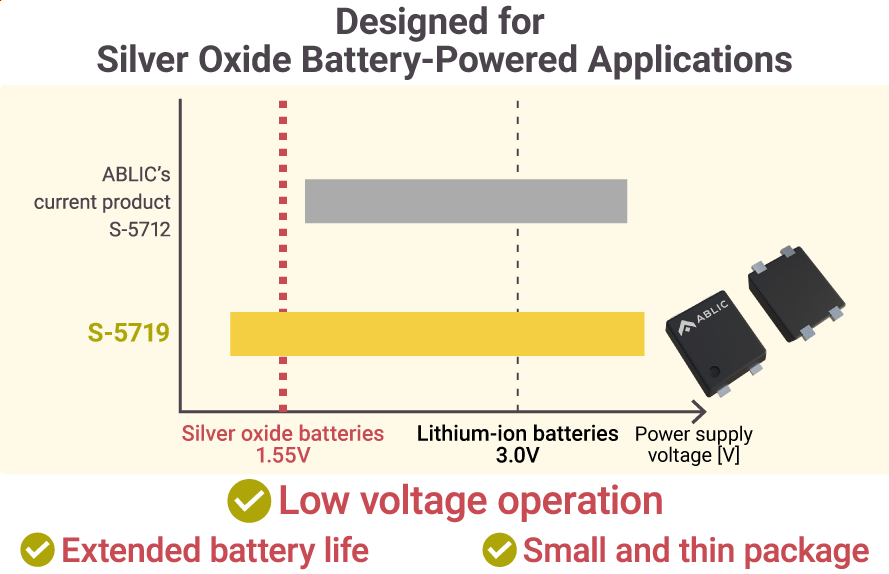

Due to its super low current consumption and low voltage, this IC is most suitable for battery-operated portable devices. Also, due to its high-accuracy magnetic characteristics, this IC can make operation's dispersion in the system combined with magnet smaller.

Features

Pole detection

Detection of omnipolar

Output logic^*1

Active "L"

Active "H"

Output form

CMOS output

Magnetic sensitivity^*1

B_OP = 1.8 mT typ.

B_OP = 3.0 mT typ.

B_OP = 4.5 mT typ.

Operating cycle (current consumption)^*1

t_CYCLE = 531.2 ms typ. (I_DD = 0.2 μA typ.)

t_CYCLE = 133.2 ms typ. (I_DD = 0.5 μA typ.)

Power supply voltage range

V_DD = 1.3 V to 3.6 V

Operation temperature range

Ta = −40°C to +85°C

Lead-free (Sn 100%), halogen-free

*1. The option can be selected.

Applications

• Home security device (Window/door open/close detection)
• Utility meter
• Battery powered device
• Wearable device
