Octal ±100V 1.6A 5-Level Ultrasound Pulser HDL6M05586

DatasheetJul. 19, 2022

Webshop

Please contact each Web shop for details such as availability of online samples.

Distributors

For details, please contact our sales representatives.

The ABLIC Inc. HDL6M05586 is an octal, 5-level RTZ, high-voltage, high-speed ultrasound pulser. The HDL6M05586 comprises logic interfaces, level translators, MOSFET gate drive buffers with floating voltage regulators, high-voltage, high-current MOSFETs, and active T/R switches.

Functions

  • Octal 5-level pulser with active T/R switch with 3-input per channel

Features

  • 0 to ±100V output voltage
  • ±1.6A source and sink peak current for the 1st and 2nd high-voltage pulses (VPP1/VNN1,VPP2/VNN2)
  • ±1.6A source and sink peak current for active ground clamp
  • 250Ω (±0.1A) active ground clamp without blocking diode for anti-leakage (Analog SW type)
  • Embedded floating voltage regulators
  • Symmetrical positive and negative pulse waveforms for low 2nd order harmonic distortion
  • Up to 200MHz LVDS/LVCMOS clock (transparent mode available)
  • 12Ω active T/R switch with 2-bit turn-on timing control
  • 20MHz output frequency @±60V output, 220pF load
  • 1.8V to 5V CMOS logic interface
  • Noise-cut diodes at each high-voltage output
  • Embedded high-voltage clamp diodes
  • 4-mode output current control for the 2nd high-voltage rail
  • Automatic thermal protection with indicator
  • Power-up/down reset function for free power sequencing and for fail-safe in abrupt power drop
  • Latch-up free, low crosstalk between channels by SOI CMOS technology
  • 84-lead 10x10mm QFN package (RoHS compliant)

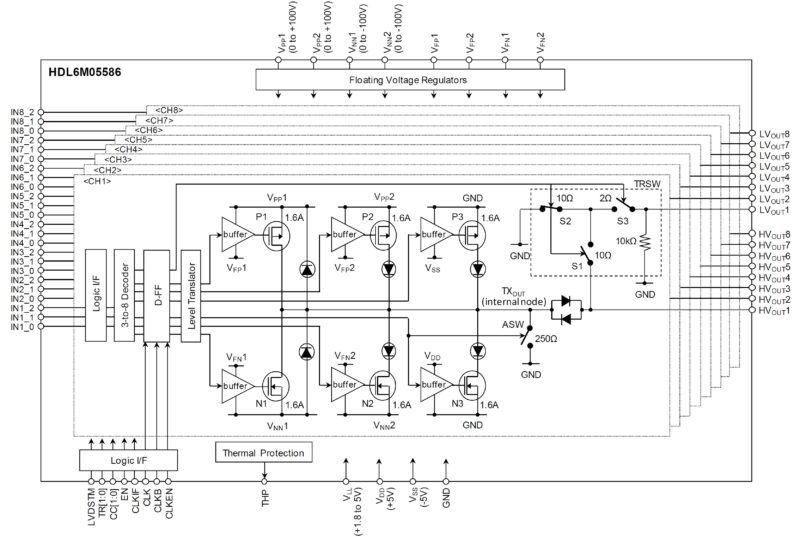

Block diagram
