Automotive, 125°C operation,
36V input, 300mA, high PSRR, fast transient response
linear regulator

S-19222 Series


Stabilized power ideal for automotive devices

  • Industry's highest* PSRR 75dB
    Stabilized power not impacted by input noise
  • Industry's fastest* transient response
    Stabilized power not impacted by cranking

  • Ideal packages are custom-tailored to applications

Automotive, 36V input, 300mA output
linear regulator

S-19222 Series

Buy Online

S-19222 Series

Provides stable power supplies thanks to the industry’s highest* PSRR and the industry’s fastest* transient response!

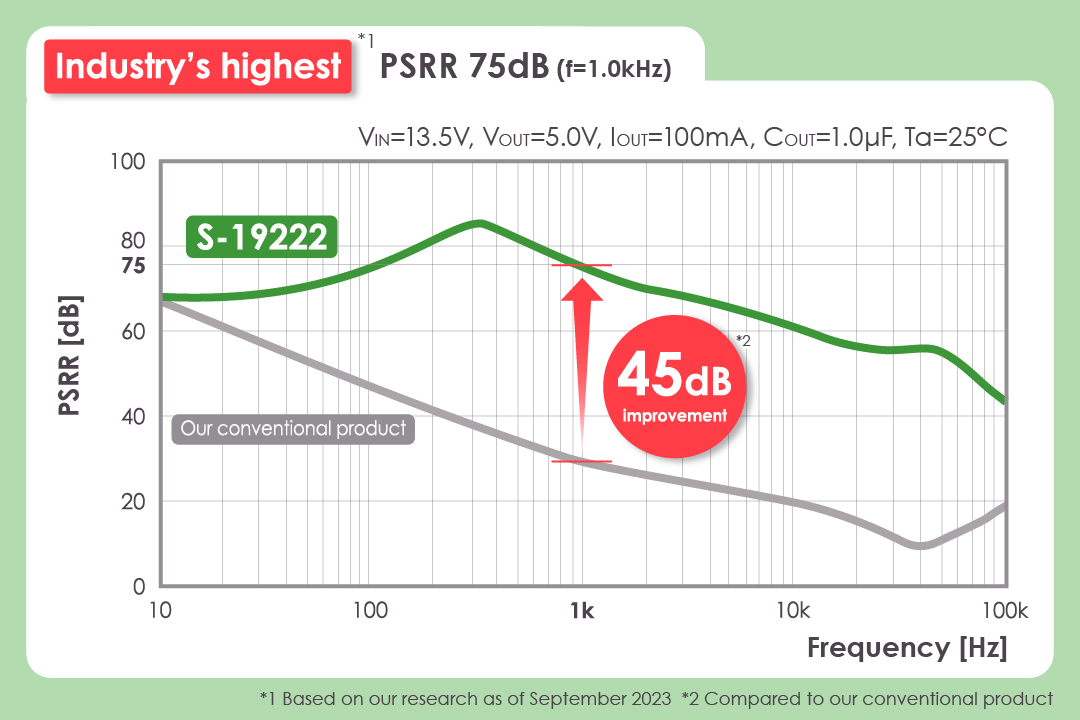

The industry’s highest* PSRR helps deliver a stabilized power not impacted by input noise

The 75dB PSRR (at f=1.0kHz) of our S-19222 Series is about 45dB improvement over our conventional product. Since The S-19222 Series can be used with CIN 0.1 μF and COUT 1.0μF input / output capacitors, it helps make customer products more compact and lower cost.

*Based on our research as of September 2023
PSRR: Power Supply Rejection Ratio

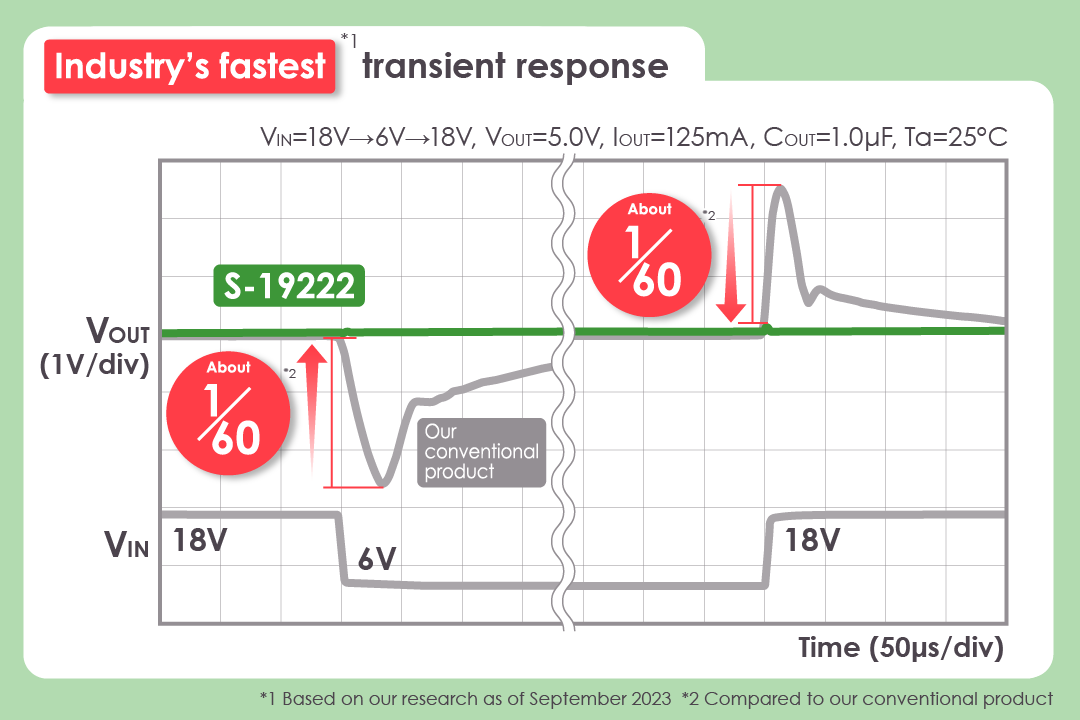

The industry’s fastest* transient response ensures a stabilized power not impacted by cranking

In the S-19222 Series undershoot and overshoot events, caused by fluctuations in power supply voltage, have been reduced to about 1/60th of those in our conventional product.
It effectively reduces fluctuations in output voltage during cranking without the use of large input / output capacitors.

The current consumption of the S-19222 Series is as low as 22.0µA typ. during operation. Despite high PSRR and fast transient response, it has helped lower the standby current of the overall system.

*Based on our research as of September 2023

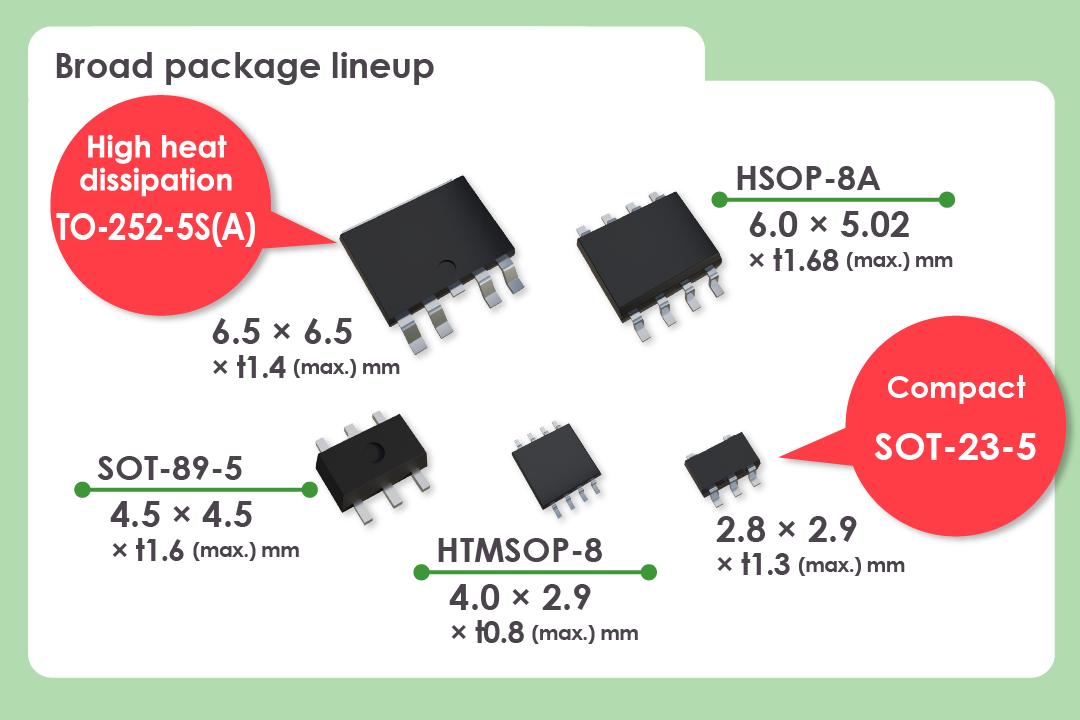

Our broad package lineup meets customer needs

To accommodate the great variety of automotive device needs, we provide five packages for the S-19222 Series from the high-heat dissipating TO-252-5S(A) to the compact SOT-23-5 package.

S-19222 Series Package Lineup
TO-252-5S(A) 6.5 × 6.5 × t1.4 (max.) mm
HSOP-8A 6.0 × 5.02 × t1.68 (max.) mm
SOT-89-5 4.5 × 4.5 × t1.6 (max.) mm
HTMSOP-8 4.0 × 2.9 × t0.8 (max.) mm
SOT-23-5 2.8 × 2.9 × t1.3 (max.) mm


  • Power supply for various sensors
  • Power supply for microcontrollers (MCUs)
  • Power supply for CAN transceivers
  • For automotive use (engine, transmission, suspension, ABS, related-devices for EV / HEV / PHEV, etc.)

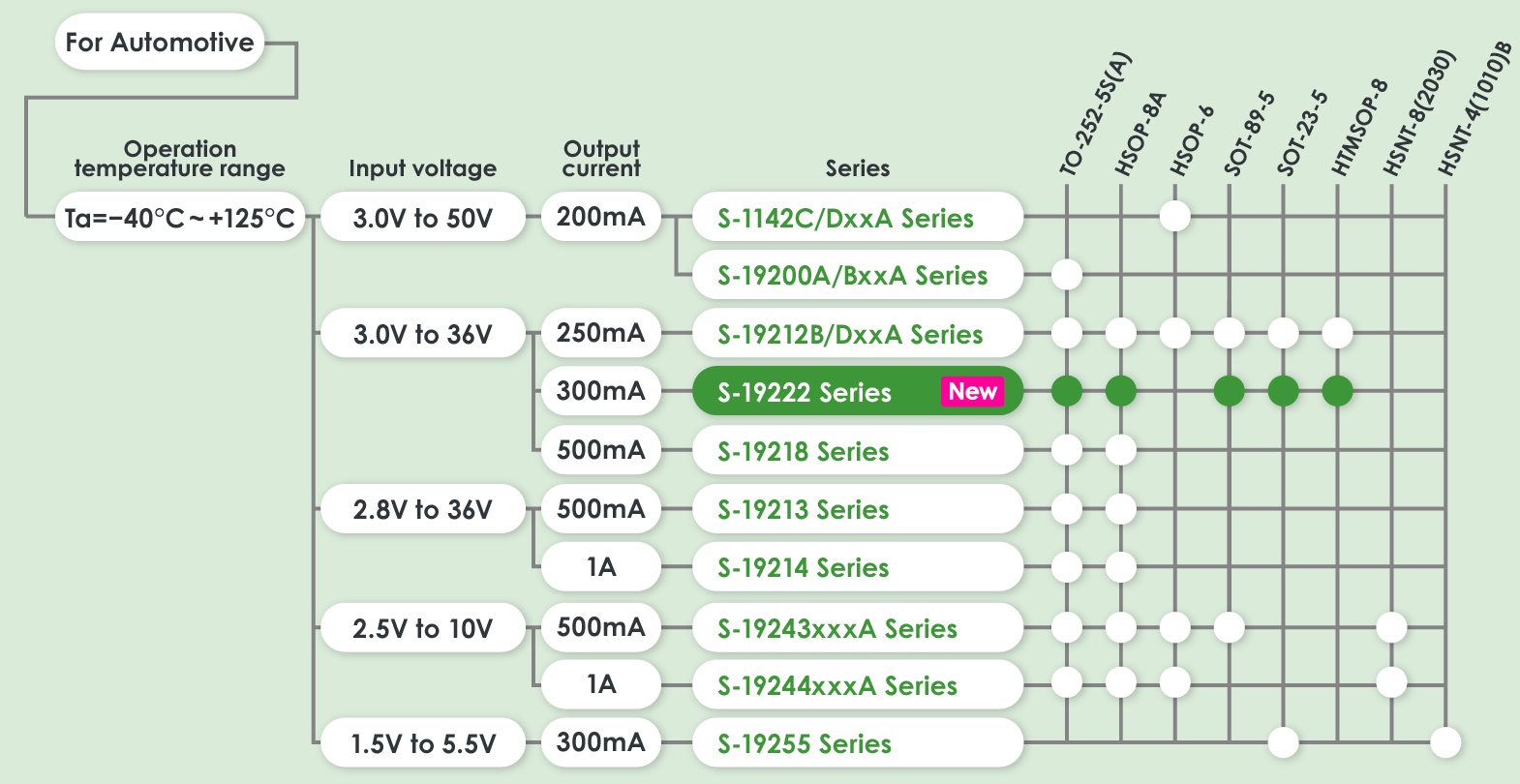

Automotive Linear Regulator (125°C operation) Product Lineup


Product name S-19222 Series
Output current 300mA
Output voltage (internally set) 1.8V, 2.5V, 3.0V, 3.3V, 5.0V, 5.5V, 6.0V
Output voltage (externally set) 1.8V to 30.0V
Input voltage 3.0V to 36.0V
Output voltage accuracy ±1.5% (Tj=−40°C to +125°C)
Power supply rejection ratio (PSRR) 75dB typ. (at f=1.0kHz)
Packages TO-252-5S(A),   HSOP-8A,   SOT-89-5,   HTMSOP-8,   SOT-23-5
Automotive quality AEC-Q100 qualified, PPAP capable
Operation temperature range Ta=−40°C to +125°C
