Automotive, 125°C Operation, 66 V Input, 100 mA Voltage Regulator S-19230 Series

DatasheetSep. 02, 2025

Bulk download

Download a zip file of all documents related to this product.

Parts List

Buy Online

chip1stop corestaFF ONLINE Digi-Key MOUSER

Please contact each Web shop for details such as availability of online samples.

Distributors

Related articles

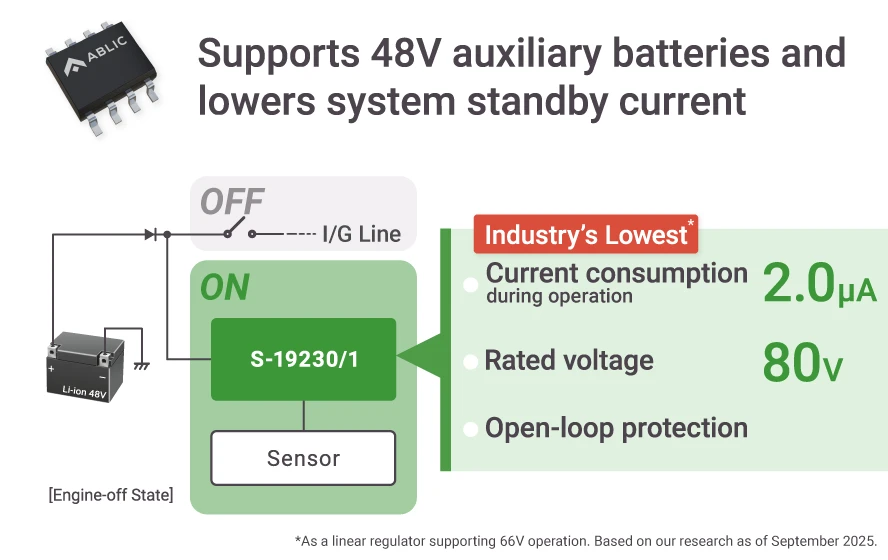

Lower Standby Current in 48V Auxiliary Battery S-19230/1 Series
Lower Standby Current in 48V Auxiliary Battery S-19230/1 Series

Product OverviewProduct Overview Standard Circuit Example: VOUT internally setStandard Circuit Example: VOUT internally set Standard Circuit Example: VOUT externally setStandard Circuit Example: VOUT externally set TO-252-5S(A) (VA005-A)TO-252-5S(A) (VA005-A) HSOP-8A (FH008-A)HSOP-8A (FH008-A) HTMSOP-8 (FP008-A)HTMSOP-8 (FP008-A)
Product Overview Standard Circuit Example: VOUT internally set Standard Circuit Example: VOUT externally set TO-252-5S(A) (VA005-A) HSOP-8A (FH008-A) HTMSOP-8 (FP008-A)

This IC developed by using high-withstand voltage CMOS process technology, is a positive voltage regulator with a high-withstand voltage, low current consumption and high-accuracy output voltage.
It has a high operation voltage of 66 V, making it compatible with 12 V, 24 V, and 48 V automotive auxiliary battery systems, and it can be operated at a low consumption current of 2.0 μA typ. It also features a built-in overcurrent protection circuit to limit overcurrent of the output transistor, a built-in thermal shutdown circuit to limit heat, and a built-in open-loop protection circuit to control output voltage overvoltage.

Thermal simulation service
ABLIC Inc. offers a “thermal simulation service” which supports the thermal design in conditions when our power management ICs are in use by customers. Our thermal simulation service will contribute to reducing the risk in the thermal design at customers development stage.
For more information regarding our thermal simulation service, contact our sales representatives.

FIT rate calculation
ABLIC Inc. offers FIT rate calculated based on actual customer usage conditions in order to support customer functional safety design.
For more information regarding our FIT rate calculation, contact our sales representatives.

Caution: This product can be used in vehicle equipment and in-vehicle equipment. Before using the product for these purposes, it is imperative to contact our sales representatives.

Features

Output voltage (internally set)
1.8 V, 3.0 V, 3.3 V, 5.0 V
Output voltage (externally set)
1.8 V to 12.0 V*1, settable via external resistor
Input voltage
6.0 V to 66.0 V
Output voltage accuracy
±1.8% (Tj = −40°C to +125°C)
Current consumption
During operation: 2.0 µA typ., 5.0 µA max. (Tj = −40°C to +125°C)
During power-off: 0.1 µA typ., 2.0 µA max. (Tj = −40°C to +125°C)
Output current
Possible to output 100 mA (at VIN ≥ VOUT(S) + 3.0 V)*2
Input capacitor
A ceramic capacitor can be used. (0.1 μF or more)
Output capacitor
A ceramic capacitor can be used. (1.0 μF or more)
Built-in overcurrent protection circuit
Limits overcurrent of output transistor.
Built-in thermal shutdown circuit
Detection temperature 170°C typ.
Built-in open-loop protection circuit (Only for type in which output voltage is externally set)
Controls VOUT overvoltage when the VADJ pin is open or shorted.
Built-in ON / OFF circuit
Ensures long battery life.
Discharge shunt function "available" / "unavailable" is selectable.
Pull-down function "available" / "unavailable" is selectable.
Operation temperature range
Ta = -40°C to +125°C
Lead-free (Sn 100%), halogen-free
Withstand 80 V load dump
AEC-Q100 in process*3

*1. Please contact our sales representatives before using the product over 12.0 V.
*2. Please make sure that the loss of the IC will not exceed the power dissipation when the output current is large.
*3. Contact our sales representatives for details.

Applications

  • For automotive use (engine, transmission, suspension, ABS, related-devices for EV / HEV / PHEV, etc.)
  • Constant-voltage power supply for electrical application for vehicle interior

Parts List
  • U(Ux), S and G at the end of the product name of ABLIC Inc. were used to indicate different material specifications as “environmental code”,
    however, these have now been unified into “lead-free and halogen-free” and are identical in terms of environmental quality.
  • Note: Lead-free plating other than 100% Sn is applied to some limited old products, therefore, please contact our sales representatives for details.
  • These descriptions may be different from the actual product name and parameter.
    Please confirm the product name and specifications with the data sheet again.
  • The information herein is subject to change without notice.
