Automotive, 125°C Operation, 5.5 V Input, 1000 mA Voltage Regulator S-19259 Series

DatasheetJun. 10, 2025

Bulk download

Download a zip file of all documents related to this product.

Parts List

Buy Online

chip1stop corestaFF ONLINE Digi-Key MOUSER

Please contact each Web shop for details such as availability of online samples.

Distributors

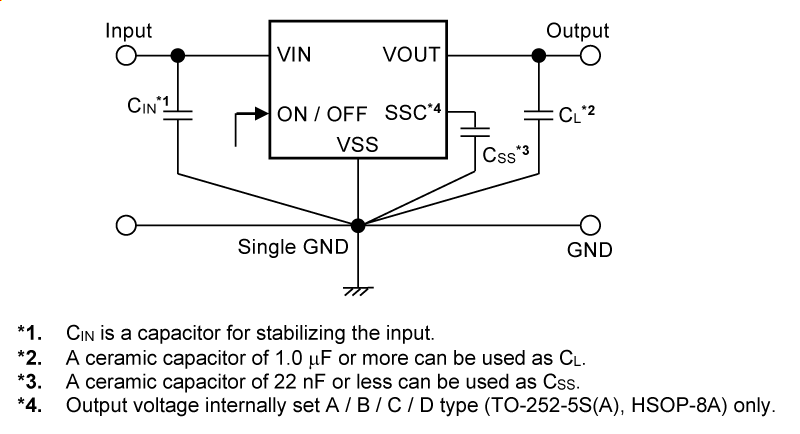

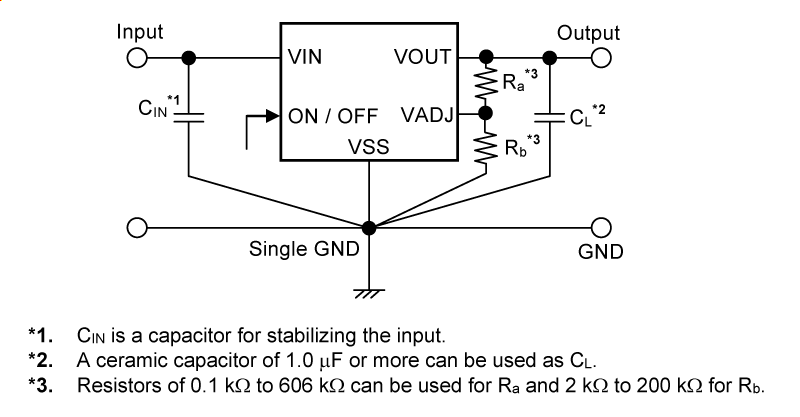

Standard Circuit Example: Output voltage is internally set (S-19259x09 to S-19259x35)Standard Circuit Example: Output voltage is internally set (S-19259x09 to S-19259x35) Standard Circuit Example: Output voltage is externally set (S-19259x00)Standard Circuit Example: Output voltage is externally set (S-19259x00) TO-252-5S(A) (VA005-A)TO-252-5S(A) (VA005-A) HSOP-8A (FH008-A)HSOP-8A (FH008-A) HSNT-8(2030) (PP008-A)HSNT-8(2030) (PP008-A)
Standard Circuit Example: Output voltage is internally set (S-19259x09 to S-19259x35) Standard Circuit Example: Output voltage is externally set (S-19259x00) TO-252-5S(A) (VA005-A) HSOP-8A (FH008-A) HSNT-8(2030) (PP008-A)

This IC is a positive voltage regulator with a low voltage operation, high-accuracy output voltage, and high output current developed based on CMOS technology.
A 1.0 μF small ceramic capacitor can be used, and the very small dropout voltage and the large output current due to the built-in transistor with low on-resistance are provided. This IC includes an overcurrent protection circuit that prevents the load current from exceeding the current capacity of the output transistor and a thermal shutdown circuit that prevents damage due to overheating. In addition to the types in which output voltage is set inside the IC, a type for which output voltage can be set via an external resistor is added to a lineup. Also, this IC includes an inrush current limit circuit to limit the excess inrush current generated at power-on or at the time when the ON / OFF pin is set to ON.

Thermal simulation service
ABLIC Inc. offers a “thermal simulation service” which supports the thermal design in conditions when our power management ICs are in use by customers. Our thermal simulation service will contribute to reducing the risk in the thermal design at customers development stage.
For more information regarding our thermal simulation service, contact our sales representatives.

FIT rate calculation
ABLIC Inc. offers FIT rate calculated based on actual customer usage conditions in order to support customer functional safety design.
For more information regarding our FIT rate calculation, contact our sales representatives.

Caution: This product can be used in vehicle equipment and in-vehicle equipment. Before using the product for these purposes, it is imperative to contact our sales representatives.

Features

Output voltage (internally set)
0.9 V to 3.5 V, selectable in 0.05 V step
Output voltage (externally set)
0.9 V to 5.0 V, settable via external resistor
Input voltage
1.5 V to 5.5 V
Output voltage accuracy
±2.0% (Tj = -40°C to +125°C)
Dropout voltage
70 mV typ. (3.0 V output product, IOUT = 300 mA)
Current consumption
During operation: 60 μA typ., 114 μA max.
During power-off: 0.1 μA typ., 10 μA max.
Output current
Possible to output 1000 mA (VIN ≥ VOUT(S) + 1.0 V)*1
Input and output capacitors
A ceramic capacitor of 1.0 μF or more can be used.
Ripple rejection
70 dB typ. (f = 1.0 kHz)
Built-in overcurrent protection circuit
Limits overcurrent of output transistor.
Built-in thermal shutdown circuit
Detection temperature 170°C typ.
Built-in inrush current limit circuit
Limits excessive inrush current generated at power-on or at the time when the ON / OFF pin is set to ON.
Built-in ON / OFF circuit
Ensures long battery life.
Discharge shunt function "available" / "unavailable" is selectable.
Pull-down function "available" / "unavailable" is selectable.
Operation temperature range
Ta = −40°C to +125°C
Lead-free (Sn 100%), halogen-free
AEC-Q100 in process*2

*1. Please make sure that the loss of the IC will not exceed the power dissipation when the output current is large.
*2. Contact our sales representatives for details.

Applications

  • For automotive use (engine, transmission, suspension, ABS, related-devices for EV / HEV / PHEV, etc.)
  • Constant-voltage power supply for electrical application for vehicle interior
  • Constant-voltage power supply for home electric appliance
