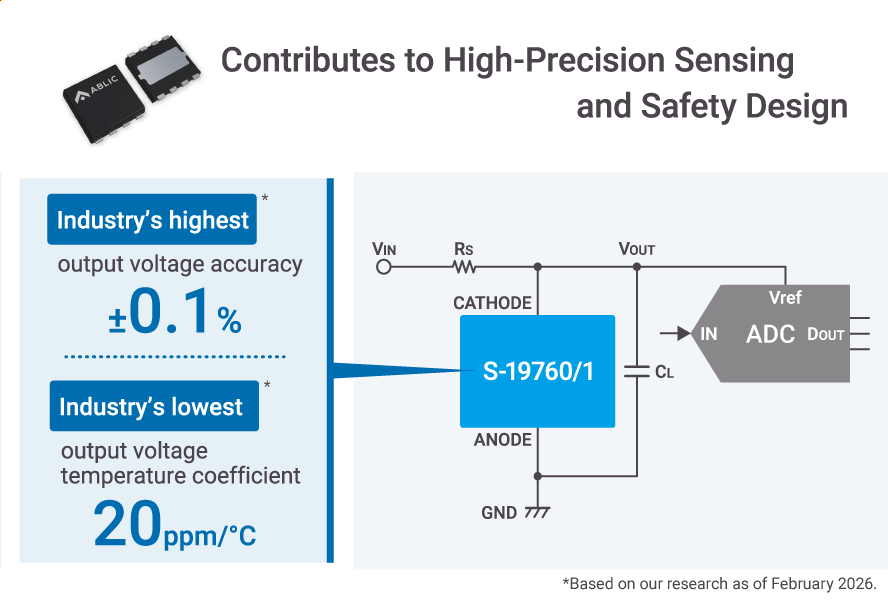

Product Overview
SOT-23-3 (MP003-C)
HSNT-8(1616)B (PY008-B)Maximum shunt current : 15 mA (S-19760) ｜ 30 mA (S-19761)
This IC is high-precision, low temperature coefficient, and low output noise shunt voltage reference developed using CMOS process technologies and is available in SOT-23-3 and compact HSNT-8(1616)B packages. Power can also be supplied from a high input voltage by selecting an appropriate external shunt resistor, making it possible to generate high-precision system reference voltage. The output voltage (reverse breakdown voltage) can be selected from 6 internally fixed voltages of 2.048 V, 2.5 V, 3.0 V, 3.3 V, 4.096 V, or 5.0 V.
This IC is available in 3 accuracy types. A type has an output voltage accuracy of ±0.1% and output voltage temperature coefficient of 20 ppm/°C max. (Ta = -40°C to +125°C).
The IC is compatible with a wide range of shunt currents with a maximum shunt current of 30 mA.
Features
- Output voltage (Reverse Breakdown Voltage)
- 2.048 V, 2.5 V, 3.0 V, 3.3 V, 4.096 V, 5.0 V can be selected.
- Output voltage accuracy
- S-19761A*1: ±0.1% (Ta = +25°C)
- S-19761B: ±0.2% (Ta = +25°C)
- S-19761C: ±0.2% (Ta = +25°C)
- Output voltage temperature coefficient
- S-19761A*1: ±10 ppm/°C max. (Ta = 0°C to +85°C), ±20 ppm/°C max. (Ta = -40°C to +125°C)
- S-19761B: ±30 ppm/°C max. (Ta = -40°C to +125°C)
- S-19761C: ±80 ppm/°C max. (Ta = -40°C to +125°C)
- Shunt current range
- 80 μA to 30 mA*2
- Output noise
- 28 μVRMS (Output voltage = 2.048 V)
- Output capacitor
- A ceramic capacitor can be used.
- 0.68 μF or higher
- Operation temperature range
- Ta = −40°C to +125°C
- Lead-free (Sn 100%), halogen-free
- AEC-Q100 in process*3
*1. The S-19761A is only in a SOT-23-3 package.
*2. The maximum shunt current for the 2.048V output voltage model is 25mA.
*3. Contact our sales representatives for details.
Applications
- Reference voltage for automotive A/D converter
- Reference voltage for automotive comparators
- Inverter, BMS, OBC, DC-DC converter
- For automotive use (engine, transmission, suspension, ABS, related-devices for EV / HEV / PHEV, etc.)
