Stabilized power ideal for automotive devices
- Industry's highest* PSRR 75dB
Stabilized power not impacted by input noise - Industry's fastest* transient response
Stabilized power not impacted by cranking
Ideal packages are custom-tailored to applications
Provides stable power supplies thanks to the industry’s highest* PSRR and the industry’s fastest* transient response!
The industry’s highest* PSRR helps deliver a stabilized power not impacted by input noise
The 75dB PSRR (at f=1.0kHz) of our S-19222 Series is about 45dB improvement over our conventional product. Since The S-19222 Series can be used with CIN 0.1 μF and COUT 1.0μF input / output capacitors, it helps make customer products more compact and lower cost.
*Based on our research as of September 2023
PSRR: Power Supply Rejection Ratio
The industry’s fastest* transient response ensures a stabilized power not impacted by cranking
In the S-19222 Series undershoot and overshoot events, caused by fluctuations in power supply voltage, have been reduced to about 1/60th of those in our conventional product.
It effectively reduces fluctuations in output voltage during cranking without the use of large input / output capacitors.
The current consumption of the S-19222 Series is as low as 22.0µA typ. during operation. Despite high PSRR and fast transient response, it has helped lower the standby current of the overall system.
*Based on our research as of September 2023
Our broad package lineup meets customer needs

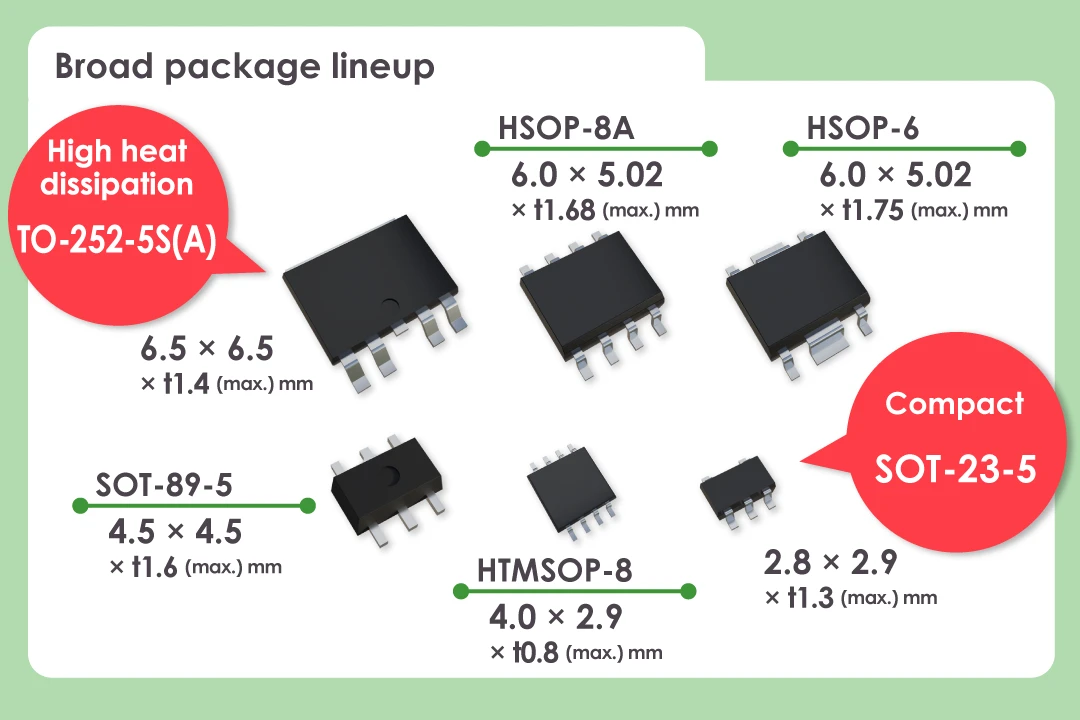

To accommodate the great variety of automotive device needs, we provide five packages for the S-19222 Series from the high-heat dissipating TO-252-5S(A) to the compact SOT-23-5 package.
| S-19222 Series Package Lineup | |
|---|---|
| TO-252-5S(A) | 6.5 × 6.5 × t1.4 (max.) mm |
| HSOP-8A | 6.0 × 5.02 × t1.68 (max.) mm |
| SOT-89-5 | 4.5 × 4.5 × t1.6 (max.) mm |
| HTMSOP-8 | 4.0 × 2.9 × t0.8 (max.) mm |
| SOT-23-5 | 2.8 × 2.9 × t1.3 (max.) mm |
Applications
- Power supply for various sensors
- Power supply for microcontrollers (MCUs)
- Power supply for CAN transceivers
- For automotive use (engine, transmission, suspension, ABS, related-devices for EV / HEV / PHEV, etc.)
Automotive Linear Regulator (125°C operation) Product Lineup
Specifications
| Product name | S-19222 | |
|---|---|---|
| Automotive | ||
| Output current | 300mA | |
| Output voltage (internally set) | 1.8V, 2.5V, 3.0V, 3.3V, 5.0V, 5.5V, 6.0V | |
| Output voltage (externally set) | 1.8V to 30.0V | |
| Input voltage | 3.0V to 36.0V | |
| Output voltage accuracy | ±1.5% (Tj=−40°C to +125°C) | |
| Power supply rejection ratio (PSRR) | 75dB typ. (at f=1.0kHz) | |
| Packages | TO-252-5S(A), HSOP-8A, SOT-89-5, HTMSOP-8, SOT-23-5 | |
| Automotive quality | AEC-Q100 qualified, PPAP capable | |
| Operation temperature range | Ta=−40°C to +125°C | |
| Datasheet | ||
Buy Online
S-19222 Series
