General use Serial EEPROM (SPI, I2C, Microwire)

Introduction – EEPROM (General use) Product Lineup

ABLIC's serial EEPROMs offer a wide range of product lineups with high reliability, ultra-small packages, and high quality.

Contents

A wide range of product lineups
Package lineups from standard to ultra-small
Suitable for a wide range of applications

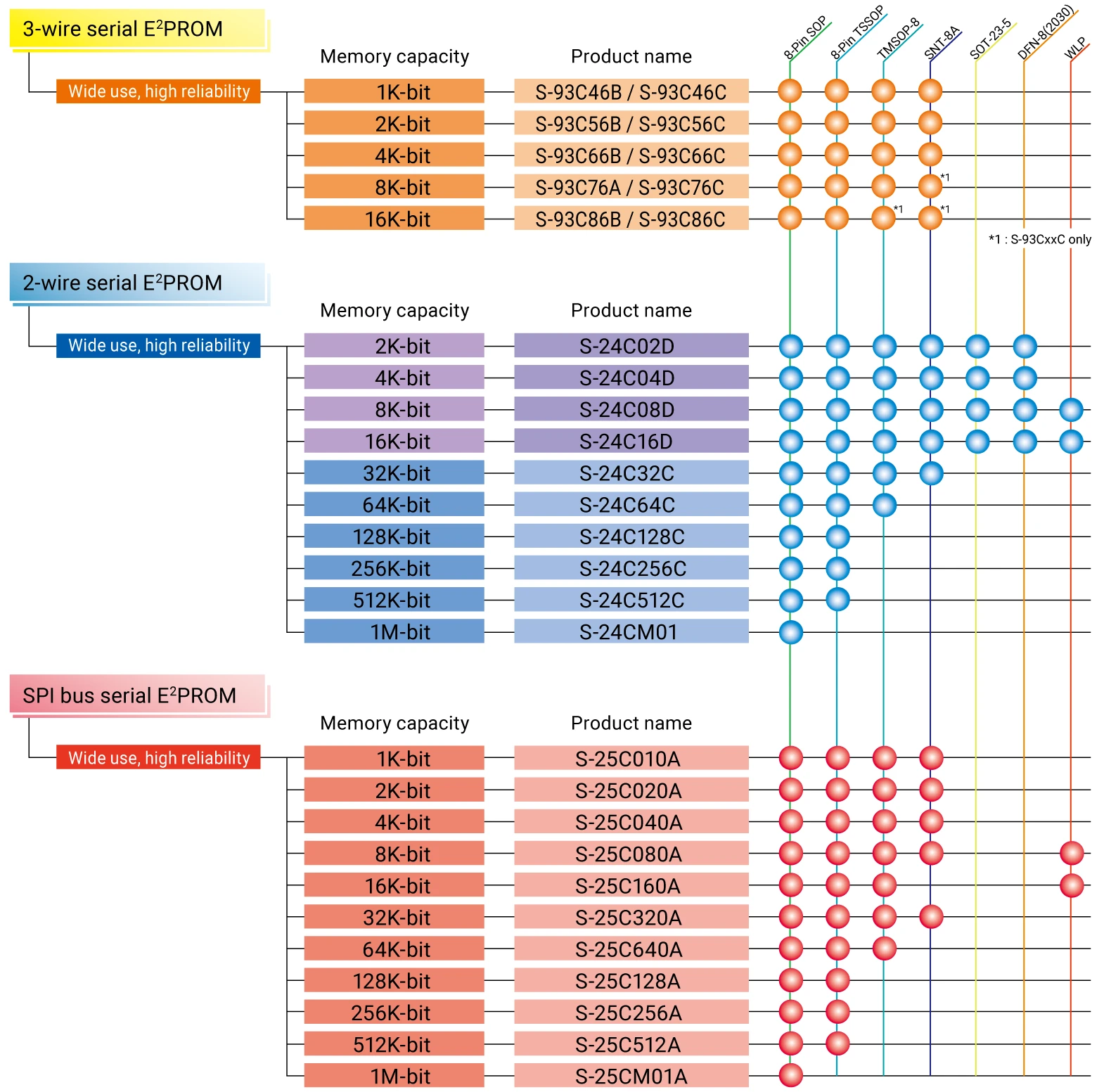

1. A wide range of product lineups

ABLIC's serial EEPROMs offer a wide range of product lineups with various interfaces and memory capacities.

For more details, please refer to the data sheet of each product.
※）The above lineup is for general use. Please refer to this page for automotive use.

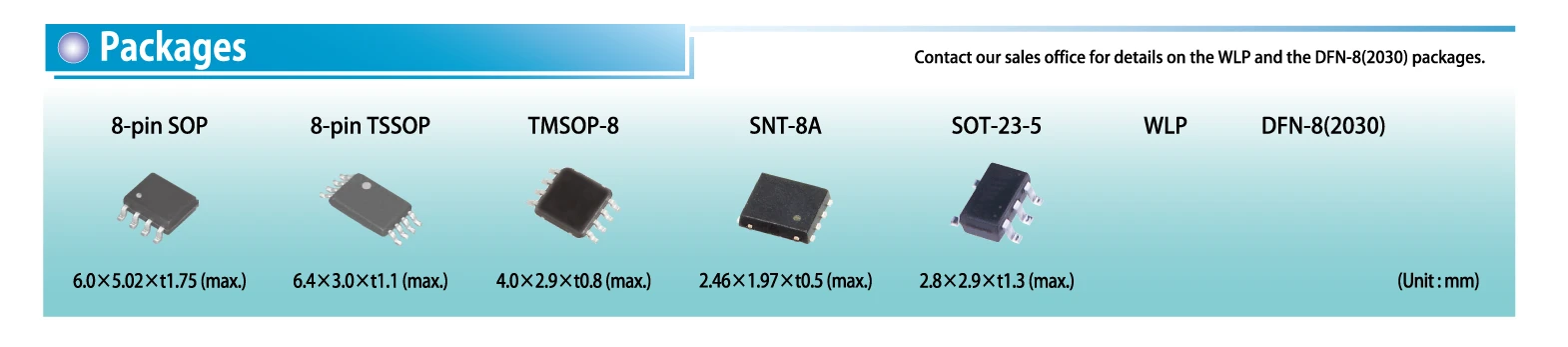

2. Package lineups from standard to ultra-small

ABLIC's serial EEPROMs offer package lineup from standard to ultra-small.

3. Suitable for a wide range of applications

ABLIC's serial EEPROMs is suitable for a wide range of applications.

Series Name (Product Summary)	Data Sheet	Webshop	Interface	Features	Density (Kbit)	Operating voltage(READ) (V)	Operating voltage(WRITE) (V)	Clock frequency max（MHz)	Write time max(ms)	Endurance	Data retention (years)	Package
Series Name
S-93C46C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	3-wire (Microwire)	Wide use	1	1.6 to 5.5	1.8 to 5.5	2	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-93C56C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	3-wire (Microwire)	Wide use	2	1.6 to 5.5	1.8 to 5.5	2	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-93C66C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	3-wire (Microwire)	Wide use	4	1.6 to 5.5	1.8 to 5.5	2	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-93C76C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	3-wire (Microwire)	Wide use	8	1.6 to 5.5	1.8 to 5.5	2	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-93C86C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	3-wire (Microwire)	Wide use	16	1.6 to 5.5	1.8 to 5.5	2	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-24C02D	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	2	1.7 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, SOT-23-5, DFN-8(2030)
S-24C04D	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	4	1.7 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, SOT-23-5, DFN-8(2030)
S-24C08D	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	8	1.7 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, SOT-23-5, DFN-8(2030)
S-24C16D	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	16	1.7 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, SOT-23-5, DFN-8(2030)
S-24C08C	PDF		2-wire (I2C)	Wide use	8	1.6 to 5.5	1.7 to 5.5	0.4	5	1 million	100	WLP-6J
S-24C16C	PDF		2-wire (I2C)	Wide use	16	1.6 to 5.5	1.7 to 5.5	0.4	5	1 million	100	WLP-6J
S-24C32C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	32	1.6 to 5.5	1.7 to 5.5	0.4	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-24C64C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	64	1.6 to 5.5	1.7 to 5.5	0.4	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8
S-24C128C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	128	1.6 to 5.5	1.7 to 5.5	0.4	5	1 million	100	8-pin SOP, 8-pin TSSOP
S-24C256C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	256	1.6 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP, 8-pin TSSOP
S-24C512C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	512	1.6 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP, 8-pin TSSOP
S-24CM01C	PDF	chip1stop CoreStaFF Digi-Key MOUSER	2-wire (I2C)	Wide use	1024	1.6 to 5.5	1.7 to 5.5	1	5	1 million	100	8-pin SOP
S-25C010A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	1	1.6 to 5.5	1.7 to 5.5	5	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-25C020A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	2	1.6 to 5.5	1.7 to 5.5	5	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-25C040A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	4	1.6 to 5.5	1.7 to 5.5	5	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-25C080A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	8	1.6 to 5.5	1.7 to 5.5	5	4	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A, WLP-8H
S-25C160A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	16	1.6 to 5.5	1.7 to 5.5	5	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, WLP-8J
S-25C320A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	32	1.6 to 5.5	1.7 to 5.5	5	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8, SNT-8A
S-25C640A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	64	1.6 to 5.5	1.7 to 5.5	5	5	1 million	100	8-pin SOP, 8-pin TSSOP, TMSOP-8
S-25C128A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	128	1.6 to 5.5	1.7 to 5.5	5	5	1 million	100	8-pin SOP, 8-pin TSSOP
S-25C256A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	256	1.6 to 5.5	1.7 to 5.5	10	5	1 million	100	8-pin SOP, 8-pin TSSOP
S-25C512A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	512	1.6 to 5.5	1.7 to 5.5	10	5	1 million	100	8-pin SOP, 8-pin TSSOP
S-25CM01A	PDF	chip1stop CoreStaFF Digi-Key MOUSER	SPI bus	Wide use	1024	1.6 to 5.5	1.7 to 5.5	10	5	1 million	100	8-pin SOP

If you can not find the product, please click here or contact our sales representatives.
