The concern for greater vehicle safety has increased the number of automotive camera modules that are installed in a vehicle.
The demands on cameras expected to safeguard vehicle safety are relentless.
“Higher resolution (from VGA to 1 or 2 megapixel) in the same size of housing as the previous model or preferably more compact” This is a hurdle for the designers to overcome.
The solution we propose is to “downsize the power supply IC, an indispensable part in an automotive camera.”
ABLIC’s product lineup supports the downsizing and higher performance of automotive camera modules. For example, we provide DC-DC converters in the industry’s smallest class of ultra compact packages or LDO regulator reset ICs with a minimum number of parts.
Click the product name for more product information.

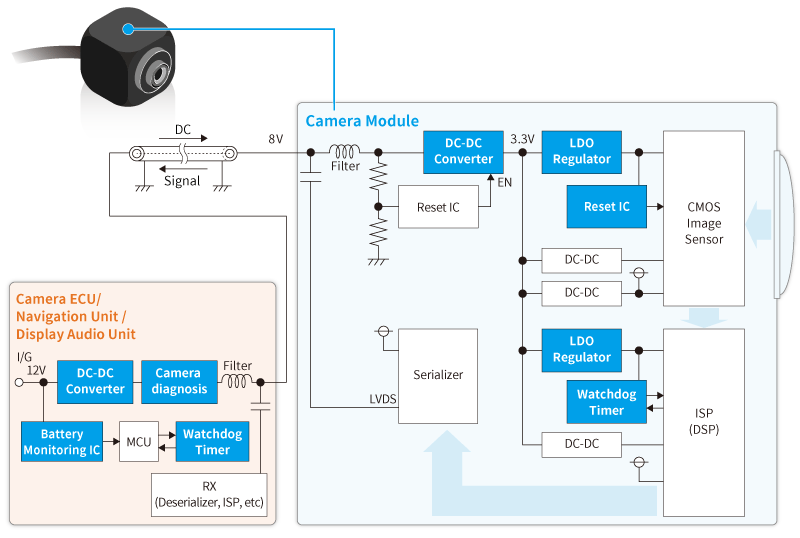

ABLIC’s ICs ideal for Automotive Camera Modules
| Block | Product | Recommended product | Applications and Features |
|---|---|---|---|
| Camera module | DC-DC converter (Switching regulator) |
S-19902/3↓ | 36V input, available in the industry’s smallest package. Contributes to fewer and more compact external parts. |
| Camera module | DC-DC converter (Switching regulator) |
S-19932/3 2.2MHz |
18V input, available in an ultra-compact (2.46 x 1.96mm) package. |
| Camera module Camera ECU |
DC-DC converter (Switching regulator) |
S-19914/5↓ | 36V input, low noise, available in the industry’s smallest package. Contributes to fewer and more compact external parts. |
| Camera module | DC-DC converter (Switching regulator) |
S-19944/5 | 18V input, low noise. Contributes to fewer and more compact external parts. |
| Camera module | LDO Regulator (Linear regulator) |
S-19255↓ | 5.5V input, 125℃ operation, 300mA output current Available in an ultra compact (1.0 x 1.0mm) package. Noise countermeasures include a high ripple rejection rate. 0.1μF input capacitors can be used. |
| Camera module | LDO Regulator (Linear regulator) |
S-19251 | 5.5V input, 105℃ operation, 150mA output current Available in an ultra compact (0.8 x 0.8mm) package. Noise countermeasures include a high ripple rejection rate. |
| Camera module | LDO Regulator (Linear regulator) |
S-19252 | 5.5V input, 105℃ operation, 150mA output current Available in an ultra compact (1.0 x 1.0mm) package. Soft start functionality is integrated. |
| Camera module | Reset IC (Voltage detector) |
S-19100↓ (105℃ operation) |
Available in an ultra compact package (1.2 x 1.6mm) ideally suited to high density mounting. Ultra-low current consumption of 270nA. |
| Camera module | Reset IC (Voltage detector) |
S-19100 (125℃ operation) |
Available in an ultra compact package (2.0 x 2.1mm) ideally suited to high density mounting. Ultra-low current consumption of 270nA. |
| Camera module Camera ECU |
Watchdog Timer | S-19400/1 (125℃ operation) |
Industryʼs top class super-low current consumption 3.8µA. With reset function. Available in 2.0 x 3.0mm package. |
| Camera ECU | High side switch with a current monitor function | S-19682/3↓ | Available in the industry’s smallest package. Connection diagnosis delivers “Small, Simple and High Accuracy”. |
| Camera ECU | LDO Regulator with a current monitor function | S-19700/1↓ | An LDO regulator IC capable of detecting a variety of connection faults. |
| Camera ECU | Battery Monitoring IC (Voltage detector) |
S-191L/N↓ | The industry’s first “Supply voltage divided output” to help the microcontrollers in monitoring voltage. With overvoltage and undervoltage monitoring functions. |
Features
DC-DC converter S-19902/3 series
Ultra-compact package
The S-19902/3 Series minimizes overall DC-DC converter footprint
This switching regulator can be directly connected to 36V battery input and ensures operation up to 125°C. High transient response and low ripple reduce the number and size of external parts.
≫Learning more about the S-19902/3
Buy Online
DC-DC converter S-19914/5 series
Low noise
Ultra-compact package
Achieves low noise in the industry’s smallest ultra-small package!
Built-in spread spectrum clock generation circuit. This reduces conducted emission to about 1/3 of our conventional products.
A step-down switching regulator (DC-DC converter) with a 36V input capable of direct connection to a battery, 1A output current in an HSNT-8(2030), the industry’s smallest package. The total mounting area including external parts can also be the industry’s smallest.
≫Learning more about the S-19914/5
Buy Online
LDO Regulator S-19255 series
High PSRR
Ultra-compact package
High PSRR LDO minimize automotive camera modules!
The industry’s smallest package uses 1.0mm square HSNT-4(1010)B, and small capacitors can be used. Achieves high PSRR over a wide frequency range and does not require a circuit to reduce noise.
≫Learning more about the S-19255
Buy Online
Reset IC S-19100 H series
Ultra-low current consumption
Ultra-compact package
Ultra compact package ideally suited to high density mounting
This reset IC with a 10V rating and an ultra-low current consumption of 270nA (typ.) is available in a 1.2 x 1.6mm ultra compact package.
The S-19100 contributes both to a smaller mounting area and lower power consumption.
Buy Online
High side switch with Current Monitor and Current Limit S-19682/3 series
With current monitor
Ultra-compact package
Connection diagnosis delivers “Small, Simple and High Accuracy”
This 1ch high-side switch provides 36V input, 600mA output current, a current monitor function and is housed in the industry’s smallest package, the HSNT-8(2030). With the increasing multi-functionality of automotive cameras, antennas and sensors, the S-19682/3 Series with its capability to offer connectivity diagnosis of a variety of applications is a “Small, Space, Flexible” solution that makes it all work.
≫Learning more about the S-19682/3
Buy Online
LDO regulator with Current Monitor and Adjustable Current Limit S-19700/1 series
With current monitor
Reverse current protection
This single IC detects power supply faults, ground faults, open faults and a number of other connection faults
This IC can single-handedly diagnose the load connection status for camera modules and GPS antennas. A current monitor function for diagnosing the load connection status is integrated and the current limit value can be freely set using the external resistance.
Battery Monitoring IC S-191L/N series
Supply voltage divided output
Overvoltage and undervoltage monitoring
The industry’s first supply voltage divided output contributes to achieving functional safety
No external parts are required to convert the high voltage supplied by a battery or other source to the voltage that can be input to microcontrollers. Contributes to fewer parts and lower standby current.
S-191L/N Series comes in an ultra-small automotive HSNT-8(2030) package and has an ultra-low current consumption of 0.9μA. A detection voltage monitoring accuracy of ±1.5% (over the entire temperature range) helps improve voltage monitoring accuracy.
Buy Online
