Octal ±100V 1.8A 3-Level Ultrasound Pulser HDL6V5583E

The ABLIC Inc. HDL6V5583E is an octal, high-voltage, high-speed fully-integrated pulser for medical ultrasound imaging applications. The HDL6V5583E consists of logic interface, level translators, MOSFET gate drive buffers with embedded/external-selectable floating voltage regulators, and high-voltage, high-current MOSFETs for pulsing and active ground clamping for each channel. The HDL6V5583E is pin-compatible with HDL6V5582/5583.

Functions

  • 8-channel, 3-level pulser with active ground clamping with 2-input per channel

Features

  • 0 to ±100V output voltage
  • ±1.8A source and sink peak current for pulsing with output blocking high-voltage (HV) diodes
  • ±1.0A source and sink peak current for active ground clamping with output blocking HV diodes
  • 500Ω (±0.05A) active output termination working with active ground clamping
  • Embedded/external-selectable floating voltage regulators to the gate drive buffers
  • Input data synchronization with a clock signal (user-selectable)
  • Integrated noise-cut low-voltage (LV) diodes
  • Up to 20MHz operation frequency (@±60V output, 220pF load)
  • 1.8V to 5V CMOS logic interface
  • 4-mode output drive current control for power saving
  • Thermal protection
  • Power supply sequence free
  • Latch-up free, lower crosstalk between channels by SOI CMOS technology
  • 52-lead 8mm x 8mm QFN package (RoHS compliant)
  • Pin-compatible with HDL6V5582/83

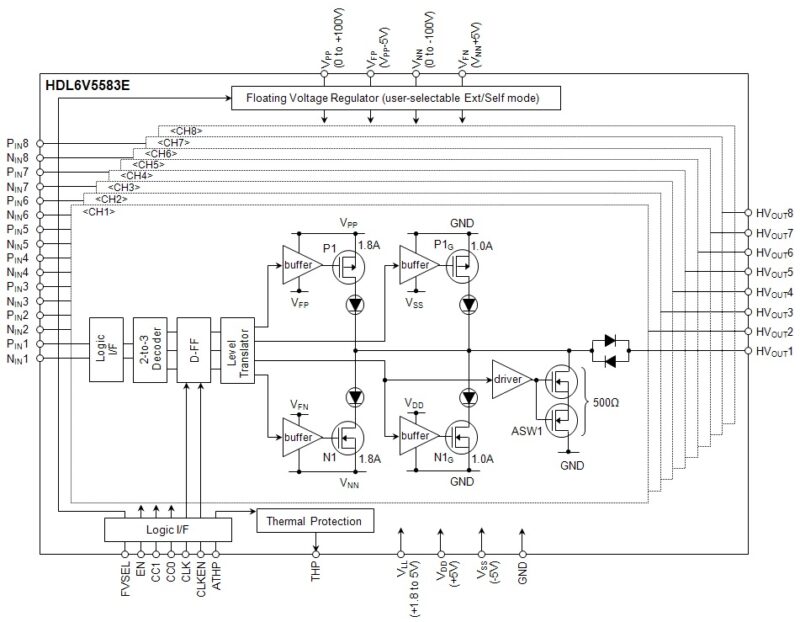

Block diagram
