ICs Ideal for Housing & Industrial Equipment
General Housing & Industrial Equipment -Power Management ICs
Product | Recommended product | Applications and Features |
---|---|---|
LDO Regulator (Linear Regulator) | S-812C | 16V input, 75mA output. Super low current consumption of 1.0µA, Output Capacitor-less. De facto standard. |
LDO Regulator (Linear Regulator) | S-1312 | 5.5V input, 150mA output. high ripple-rejection of 75dB typ. Available in an ultra compact (0.8 x 0.8mm) package. 105℃ operation |
LDO Regulator (Linear Regulator) | S-1313 | 5.5V input, 200mA output. Super low current consumption of 0.9µA. Available in an ultra compact (0.8 x 0.8mm) package. 0.1µF input/output capacitors can be used. 105℃ operation |
LDO Regulator (Linear Regulator) | S-1222B/D | 28V input, 200mA output. 0.33mm low-profile package. |
LDO Regulator (Linear Regulator) | S-1212/3/4 | 36V input, 105℃ operation. 250mA output | 500mA output | 1000mA output |
LDO Regulator (Linear Regulator) | S-1142C/D | 50V input, 200mA output. Low current consumption of 4.0µA. 105℃ operation |
DC-DC converter (Switching regulator) | S-8580/1 | 36V input, 600mA output. Output voltage 2.5 to 30.0V. Available in an ultra compact (2.46 x 1.96mm) package. |
Voltage Detector (Reset IC) | S-1000 | 5.5V operation. Detection voltage 1.5 to 4.6V. High-accuracy detection voltage ±1.0%. Super low current consumption of 0.35µA. |
Voltage Detector (Reset IC) | S-1009 | 10V operation. Detection voltage 0.8 to 4.6V. High-accuracy detection voltage ±0.5%. Super low current consumption of 0.27µA. External delay time setting. |
Voltage Detector (Reset IC) | S-808xxC | 10V operation. Detection voltage 0.8 to 6.0V. Detection voltage accuracy of ±2.0%. Low current consumption of 0.8µA. De facto standard. |
Voltage Detector (Reset IC) | S-809xxC | 10V operation. Detection voltage 1.3 to 6.0V. Detection voltage accuracy of ±2.0%. Low current consumption of 1.1µA. External delay time setting. De facto standard. |
Voltage Detector (Reset IC) | S-1002 | SENSE detection. 10V operation. Detection voltage 1.0 to 5.0V. High-accuracy detection voltage ±1.0%. Super low current consumption of 0.5µA. External delay time setting |
Voltage Detector (Reset IC) | S-1003 | With manual reset function. 10V operation. Detection voltage 1.2 to 5.0V. High-accuracy detection voltage ±1.0%. Super low current consumption of 0.5µA. External delay time setting. |
Voltage Detector (Reset IC) | S-1011 | High-withstand voltage of 36V. Detection voltage 3.0 to 10.0V (0.05V step). Detection voltage accuracy of ±1.5%. Low current consumption of 0.6µA. External delay time setting. SENSE detection. |
Watchdog Timer | S-1410/1 | Industryʼs top class super low current consumption of 3.8µA. With reset function. Available in 2.0 x 3.0mm package. 105℃ operation. |
General Housing & Industrial Equipment -Sensor ICs, Amplifiers, Memory ICs, Timer ICs
Product | Recommended product | Applications and Features |
---|---|---|
Hall effect IC (Magnetic sensor IC) | S-576Z B | Zero Crossing Latch Hall effect ICs are perfect for BLDC motor control, creating stable BLDC motor control over a wide temperature range. |
Hall effect IC (Magnetic sensor IC) | S-576B B | Bipolar Hall effect latch ICs are perfect for position and rotation detection and an ultra-thin package contributes to thinner motors. |
Operational amplifier | S-89713 | Capable of detecting high-accuracy current and minute sensor signals. 5.5V operation. Rail-to-Rail input/output. Low offset voltage of 10μV. |
Operational amplifier | S-89630A | High-accuracy current detection and minute sensor signals can be detected. 36V operation. Rail-to-Rail input/output. Low offset voltage of 50μV. 125℃ operation. |
EEPROM | S-24Cxxx | 2-wire Serial EEPROM. Built-in data protection functions. Data can be rewritten up to 1 million. |
Real-Time Clock | S-35390A | Backup of clock function. Current consumption of 0.25µA. |
>>Automotive ICs capable of operating at higher temperatures, click here.
Wireless Communication Device
Click the product name for more product information.
*VD: Voltage detector (Reset IC) *LDO: Low-dropout regulator *RTC: Real-time clock
ICs Ideal for Housing & Industrial Equipment
Wireless Communication Device -Power Management ICs
Product | Recommended product | Applications and Features |
---|---|---|
LDO Regulator (Linear Regulator) | S-1318 | 5.5V input, 100mA output. Ultra-low current consumption of 95nA. Available in an ultra compact (1.0 x 1.0mm) package. |
LDO Regulator (Linear Regulator) | S-1313 | 5.5V input, 200mA output. Super low current consumption of 0.9µA. Available in an ultra compact (0.8 x 0.8mm) package. 0.1µF input/output capacitors can be used. 105℃ operation |
LDO Regulator (Linear Regulator) | S-1206 | 6.5V input, 250mA output. Super low current consumption of 1.0µA. |
DC-DC converter (Switching regulator) | S-8353/4 | 10V input, 300mA output. Output voltage 2.0 to 6.5V. Step-up type. |
Voltage Detector (Reset IC) | S-1000 | 5.5V operation. Detection voltage 1.5 to 4.6V. High-accuracy detection voltage ±1.0%. Super low current consumption of 0.35µA. |
Voltage Detector (Reset IC) | S-1009 | 10V operation. Detection voltage 0.8 to 4.6V. High-accuracy detection voltage ±0.5%. Super low current consumption of 0.27µA. External delay time setting. |
Voltage Detector (Reset IC) | S-808xxC | 10V operation. Detection voltage 0.8 to 6.0V. Detection voltage accuracy of ±2.0%. Low current consumption of 0.8µA. De facto standard. |
Voltage Detector (Reset IC) | S-809xxC | 10V operation. Detection voltage 1.3 to 6.0V. Detection voltage accuracy of ±2.0%. Low current consumption of 1.1µA. External delay time setting. De facto standard. |
Voltage Detector (Reset IC) | S-1002 | SENSE detection. 10V operation. Detection voltage 1.0 to 5.0V. High-accuracy detection voltage ±1.0%. Super low current consumption of 0.5µA. External delay time setting |
Voltage Detector (Reset IC) | S-1003 | With manual reset function. 10V operation. Detection voltage 1.2 to 5.0V. High-accuracy detection voltage ±1.0%. Super low current consumption of 0.5µA. External delay time setting. |
Wireless Communication Device -Sensor ICs, Amplifiers, Memory ICs
Product | Recommended product | Applications and Features |
---|---|---|
Hall effect IC (Magnetic sensor IC) | S-5712x | Omnipolar / Unipolar detection type Hall effect switch IC. Operation voltage 1.6 to 3.5V. high-accuracy Hall effect switch IC that operates at a low voltage and low current consumption. High-speed |
TMR sensor IC (Magnetic sensor IC) | S-5701 B | TMR sensor ICs are perfect for contact-less switches which turn on and off by magnetic strength. Available in a small and thin package. Super low current consumption of 160nA. |
Temperature Sensor IC | S-58LM20A | Outputs linear voltage against the temperature change. -50 to 130℃ operation. No need for parts such as resistors and operational amplifiers compared to thermistor configurations. |
Operational amplifier | S-89430/1 | Super low current consumption of 0.5µA. Low voltage operation 0.9 to 5.5V. Operational amplifiers perfect for amplifying sensor signals. |
Operational amplifier | S-89713 | Capable of detecting high-accuracy current and minute sensor signals. 5.5V operation, Rail-to-Rail input/output, low offset voltage of 10μV. |
Comparator | S-89530/1 | Super low current consumption of 0.7µA. Low voltage operation 0.9 to 5.5V. Comparators perfect for detecting sensor signals. |
EEPROM | S-24Cxxx | 2-wire Serial EEPROM. Built-in data protection functions. Data can be rewritten up to 1 million. |
>>Automotive ICs capable of operating at higher temperatures, click here.
Hall Effect IC S-576Z B series
High-temperature operation
Zero Crossing Latch Detection
Thin package
The Zero Crossing Latch Hall Effect ICs transform the brushless DC motor market

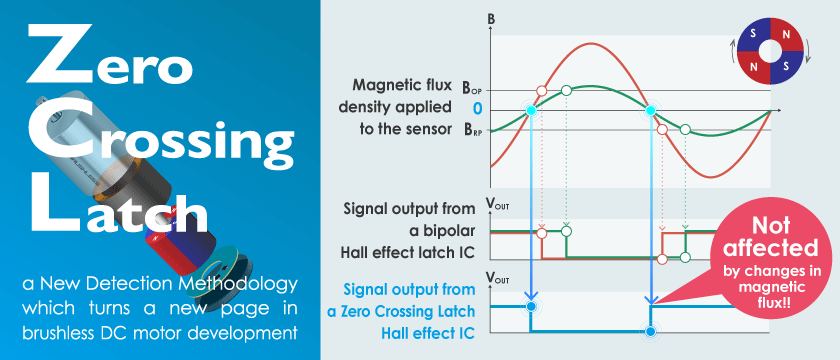

A zero crossing latch Hall effect IC, is a latch type Hall effect IC that uses a world's first detection method, by detecting the output signal at the zero-crossing point where polarity changes. It is ideal for BLDC motor control, and unlike other Hall effect ICs, it is not thrown off by variations in magnetic flux density, and can maintain stable detection.
>>Learning more about the S-576Z B
Series name
Power supply voltage range: 2.7V ~ 26.0V
Thin package: TSOT-23-3S (t0.8mm max)
Ultra-thin package: HSNT-6(2025) (t0.5mm max)
