125°C Operation, Super Low Current Consumption Low Voltage Operation Omnipolar Detection Type TMR Magnetic Sensor IC S-5701 B Series

This IC, developed by TMR (tunnel magneto resistance effect) technology and CMOS technology, is a magnetic sensor IC that operates with super low current consumption and low voltage.
The output voltage level changes when this IC detects the intensity level of magnetic flux density. Using this IC with a magnet makes it possible to detect the open / close in various devices.

Magnetic simulation service
ABLIC Inc. offers a “magnetic simulation service” that provides the ideal combination of magnets and our magnetic sensor ICs for customer systems. Our magnetic simulation service will reduce prototype production, development period and development costs. In addition, it will contribute to optimization of parts to realize high cost performance.
For more information regarding our magnetic simulation service, refer to “Introduction of Magnetic Simulation Service.” For usage inquiries, contact our sales representatives.

Features

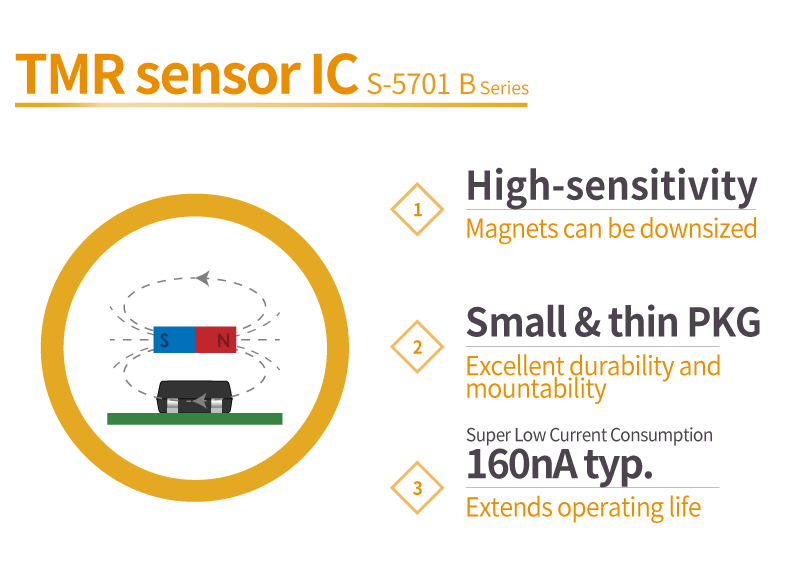

  • Super low current consumption (IDD = 160 nA typ.) contributes to device power saving and extended period operation of battery devices
  • High sensitivity magnetic characteristics enable downsizing of magnets
  • Contributes to accurate mechanism operation over a wide temperature range due to excellent thermal stability of magnetic characteristics (Refer to “2. Magnetic characteristics” in “■ Characteristics (Typical Data)” for details)
  • Uses a thin (t0.80 mm max.) TSOT-23-3S package, contributing to the enhancement of the designs of devices

Specifications

Detection direction
Horizontal direction (Refer to “■ Operation” for details)
Pole detection
Omnipolar detection
Output logic
Active “L”
Output form
CMOS output
Magnetic sensitivity *1
BOP = 1.0 mT typ.
BOP = 1.7 mT typ.
BOP = 3.0 mT typ.
Operating cycle (current consumption)
tCYCLE = 100 ms (IDD = 160 nA) typ.
Power supply voltage range
VDD = 1.7 V to 5.5 V
Operation temperature range
Ta = −40°C to +125°C
Lead-free (Sn 100%), halogen-free

*1. The option can be selected.

Applications

  • Home security device (Window/door open/close detection)
  • Utility meter
  • Battery powered device
  • Wearable device

Parts List

  • These descriptions may be different from the actual product name and parameter.
    Please confirm the product name and specifications with the data sheet again.
  • The information herein is subject to change without notice.
